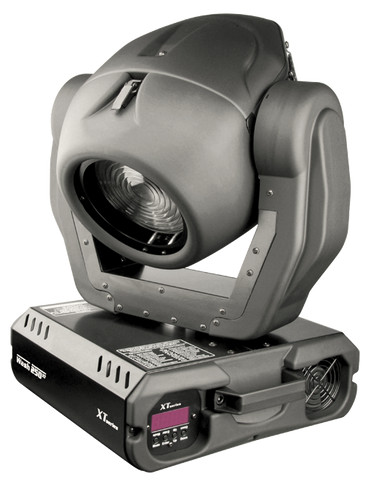

Wash 250 XT

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GY-9.5
    • Approved model: Philips MSD 250W/2
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Fresnel lens of diameter 150mm
    • Manually adjustable beam angle from 8° to 22°
  • Electrical Specification

    • Wiring options - EU-model: 208/230/240V AC, 50/60Hz
    • Wiring options - US-model: 100/120/208/230/240V AC, 50/60Hz
    • Power consumption: 500 VA at 230V/50Hz
  • Mechanical Specification

    • Height: 500 mm (19.7") - head in horizontal position
    • Width: 428 mm (16.9")
    • Depth: 379 mm (14.9")
    • Weight - EU model: 18.0 kg (39.7"), US model: 21.0 kg (46.3")
  • Thermal

    • Maximum ambient temperature (Ta): 45°C (113°F)
    • Maximum surface temperature: 80°C (176°F)
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 16
    • Bilt-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 8- or 16-bit
    • Master/slave operating
    • Controllable speed of fans
    • Movement control: Tracking and vector
    • Buit-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel: 3 dichroic filters, 3200K and 5600K correction filters, UV filter + open
    • CMY mixing systém - Cyan: 0 - 100%, Magenta: 0-100%, Yellow: 0-100%
    • Effect wheel: beam shaper, frost filter
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Pan: 530°
    • Tilt: 280°
    • Maximum Pan-movement 530° in 2.65 s
    • Maximum Tilt-movement 280° in 1.68 s
  • Rigging

    • via 2 pairs of mounting holes for clamps with M10 thread
    • via mounting bracket
  • Optional Accessories

    • Mounting bracket with screws
