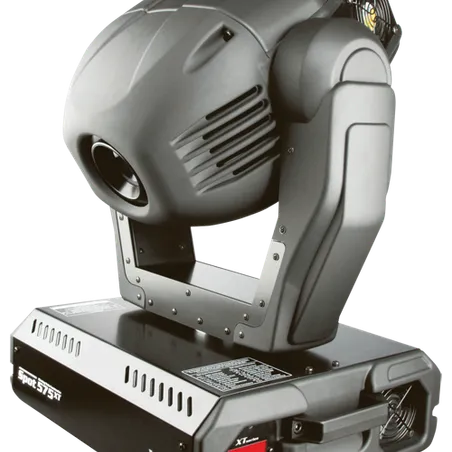

Spot 575 XT

This feature-packed product contains a new optical system and a new dichroic glass reflector which increase the output by 20%. The Spot 575 has every imaginable effect including two separate gobo wheels, two separate colour wheels, multi-step motorized zoom with three different apertures - 15, 18 and 22 degrees, iris, 3D prism, remote focus.

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GX-9.5
    • Approved model: Philips MSR 575W/2
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Motorized multi-step zoom with three different apertures (15°, 18°, 22°)
  • Electrical Specification

    • Wiring options - EU-model: 208/230/240V AC, 50/60Hz
    • Wiring options - US model: 100/120/208/230/240V AC,50/60Hz
    • Power consumption: 900 VA at 230V/50Hz
  • Mechanical Specification

    • Height: 583 mm (23.0") - head in horizontal position
    • Width: 449 mm (17.7")
    • Depth: 467 mm (18.4")
    • Weight - EU model: 32 kg (70.5 lbs), US model: 36 kg (79.4 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 40°C (104°F)
    • Maximum surface temperature: 80°C (176°F)
  • Gobos

    • Outside diameter - metal gobos: 26.9 mm, dichroic and glass gobos: 26.8mm
    • Thickness - metal gobos: 0.5mm (aluminum); dichroic gobos: 1.1mm (high temperature borofloat or better glass); glass gobos: max. thickness = 4mm (high temperature borofloat or better glass)
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 16
    • Bilt-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 8- or 16-bit
    • Master/slave operating
    • Controllable speed of fans
    • Movement control: Tracking and vector
    • Buit-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel 1: 9 dichroic filters + open
    • Colour wheel 2: 6 dichroic filters + open, 3200K and 5600K correction filters,UV filter
    • Static gobo wheel: 9 metal gobos + open
    • Rotating gobo wheel: 6 rotating, indexable, replaceable gobos + open
    • Prism: 3-facet -prism rotating in both directions at different speeds
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Iris: Motorized iris for different beam diameters
    • Focus: motorized focus
    • Pan: 530°
    • Tilt: 280°
    • Maximum Pan-movement 530° in 2.65 s
    • Maximum Tilt-movement 280° in 1.68 s
  • Rigging

    • Mounting plate for 2 clamps with M12 thread
