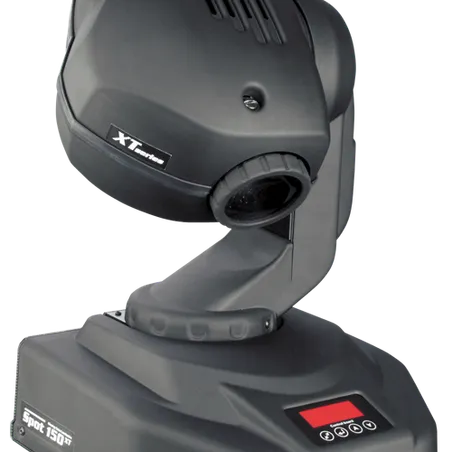

Spot 150 XT

technical

specification

  • Source

    • Lamp: Compact discharge lamp
    • Base: G-12
    • Approved model: Philips CDM-SA/T 150/942
    • Ballast: Magnetic
  • Optical System

    • Objective: 19°
  • Electrical Specification

    • Wiring options - EU-model: 208/230/240V AC, 50/60Hz
    • Wiring options - US model: 100/120/208/230/240V AC,50/60Hz
    • Power consumption: 300 VA at 230V/50Hz
  • Mechanical Specification

    • Height: 415 mm (16.3") - head in horizontal position
    • Width: 292 mm (11.5")
    • Depth: 378 mm (14.9”)
    • Weight - EU model: 10.5 kg (23.1 lbs), US model: 12.5kg (27.6 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 40°C (104°F)
    • Maximum surface temperature: 80°C (176°F)
  • Gobos

    • Outside diameter: 26.9 mm, aluminium, thickness: 0.5 mm
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 8
    • Bilt-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 8- or 16-bit
    • Master/slave operating
    • 4 DMX channel-presettings
    • Movement control: Tracking and vector
    • Buit-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
    • built-in microphone for audio mode
  • Electromechanical Effects

    • Colour wheel: 11 dichroic filters + open
    • Static gobo wheel: 11 metal gobos + open
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Pan: 530°
    • Tilt: 280°
    • Maximum Pan-movement 530° in 3 s
    • Maximum Tilt-movement 280° in 1.9 s
  • Rigging

    • via 2 Omega holders
