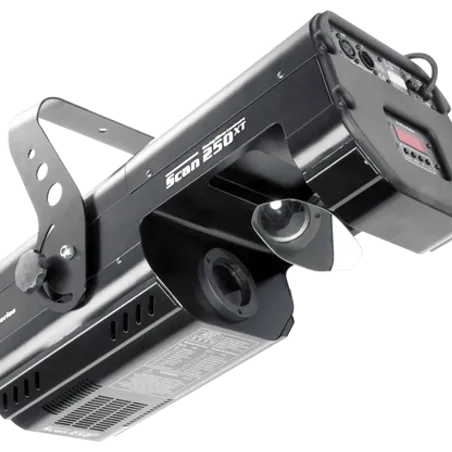

Scan 250 XT™

Scan 250 XT™

The Scan 250 XT is ideal for all clubs, discotheque or pub applications where an element of colour and sparkle is required. Features include gobo wheel with 6 rotating, indexable, replaceable gobos + open; colour wheel with 11 dichroic filters + open; remote focus, rotating prism, frost effect and dimmer and shutter.

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GY9.5
    • Approved models: Osram HSD 250/80, Philips MSD 250/2, Sylvania BA 250/2 SE
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Standard objective: 15°
    • Optional objectives: 12° and 18°
  • Electrical Specification

    • Wiring options: EU model - 208/230/240V, 50/60Hz, US model - 100/120/208/230/240V, 50/60Hz
    • Power consumption: 500VA at 230V/50Hz
  • Mechanical Specification

    • Height: 346 mm (13.6″) - bracket in horizontal position
    • Width: 306 mm (12.1″)
    • Depth: 629 mm (24.8″)
    • Weight: EU model - 16 kg (35.2 lbs), US model - 19 kg (41.9 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 45°C (113°F)
    • Maximum surface temperature: 80°C (176°F)
  • Gobos

    • Outside diameter - metal gobos: 26.9 mm
    • Outside diameter - dichroic and glass gobos: 26.8 mm
    • Thickness - metal gobos: 0.15 mm (steinless steel)
    • Thickness - dichroic gobos: 1.1 mm (high temperature borofloat or better glass); glass gobos: max. thickness = 4 mm (high temperature borofloat or better glass)
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 14 or 16
    • Bilt-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 8 or 16bit
    • Master/Slave operation
    • Stand-alone operation
    • 3-editable programs, each up to 99 steps
    • Controllable speed of fans
    • Buit-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel: 11 dichroic filters + open
    • Gobo wheel: 6 rotating, indexable, replaceable gobos + open
    • Prism: 3-facet prism rotating in both directions at different speeds
    • Effects: Frost filter and 3200K/5600K correction filters
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Focus: Motorized focus
  • Rigging

    • Via mounting bracket
  • Optional Accessories

    • Objective 12° SCN
    • Lens-module 18°
