Scan 1200 XT™

Scan 1200 XT™

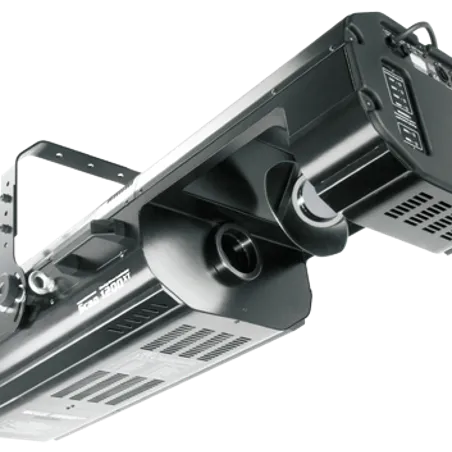

The Scan 1200 XT is ideal for all applications. This light and compact scanner features 2 colour wheels; static gobo wheel with 5 metal gobos and rotating gobo wheel with 4 rotating, indexable and replaceable gobos; effect wheel with 3 different prisms; motorized focus and iris; full range dimming and variable strobe effect. This, the most powerful scanner in Robe scans range has proved to be good for large professional installations.

technical

specification

  • Source

    • Lamp: Osram HMI 1200W/GS
    • Base: SFc15.5
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Multistep zoom lenses system (15°, 21°, 28°)
  • Electrical Specification

    • Wiring options: 208/230/240V, 50/60Hz
    • Power consumption: 1650VA at 230V/50Hz
  • Mechanical Specification

    • Height: 411 mm (16.2″) - bracket in horizontal position
    • Width: 414 mm (16.3″)
    • Depth: 1067 mm (42.0″)
    • Weight: 45 kg (83.3 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 40°C (104°F)
    • Maximum surface temperature: 80°C (176°F)
  • Rotating Gobos

    • Outside diameter - metal gobos: 53.3 mm
    • Outside diameter - dichroic gobo: 53.1 mm and glass gobo: 49.8 mm
    • Thickness - metal gobos: 0.15 mm (steinless steel)
    • Dichroic gobos: 1.1 mm (high temperature borofloat or better glass)
    • Glass gobos: max. thickness = 4 mm (high temperature borofloat or better glass)
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 14 or 16
    • Bilt-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 8 or 16bit
    • Master/Slave operation
    • Stand-alone operation
    • 3-editable programs, each up to 99 steps
    • Controllable speed of fans
    • Buit-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel 1: 8 dichroic filters + open
    • Colour wheel 2: 5 dichroic filters, colour temperature filters 3200K, 5600K and UV filter + open
    • Static gobo wheel: 5 metal gobos + open
    • Rotating gobo wheel: 4 rotating, indexable, replaceable gobos + open
    • Effect wheel: 3-facet prism, 5-facet prism, 5-linear facet prism rotating in both directions at different speeds
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Focus: Motorized focus
    • Iris: Motorized iris for different beam diameters
  • Rigging

    • Via mounting bracket
