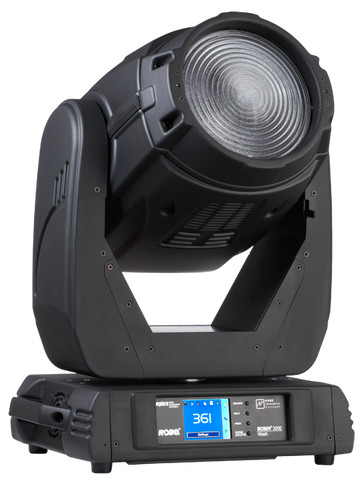

ROBIN® 300E Wash

ROBIN® 300E Wash

The ROBIN® 300E Wash will be loved by anyone needing a wide and even wash of colours over a large area provided by a quiet and unobtrusive fixture.

A flexible, lightweight, silent unit with an extremely wide zoom of 4° – 40°. The compact dimensions make it easy to conceal whilst providing an efficient wash effect in the gentlest of pastels for the richest of saturated colours. The enhanced CMY+CTO system mixes real colour correction quickly and accurately. The 7+1 colour wheel with its easily replaceable magnetic positions can spin rainbow effects at both high and low speeds. The new innovative remote hot-spot control combined with extremely fast iris is delivers maximum lumen output at any beam angle from 4° – 40° – amazing feature – never seen before.

technical

specification

  • Source

    • Lamp: Compact high-presure metal halide lamp
    • Base: PGJX28
    • Approved model: Philips MSD Gold 300/2 MiniFastFit
    • Control: Automatic and remote on/off
    • Ballast: Electronic
  • Optical System

    • Dichroic glass reflector for maximising the light efficiency
    • Beam angle: 4° – 40°
  • Electrical Specification

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100–240 V, 50/60 Hz
    • Power consumption: 400 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 518 mm (20.4″) – head in horizontal position
    • Width: 433 mm (17.0″)
    • Depth: 408 mm (16.1″)
    • Weight: 20 kg (44.1 lbs)
  • Thermal

    • Maximum ambient temperature: 45 °C (113 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Control and Programming

    • Setting & Addressing: ROBE Navigation System 2 (RNS2)
    • Protocol: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
    • Control channels: 15, 17, 20
    • 3 DMX protocol modes
    • 3-editable programs, each up to 100 steps
    • Stand-alone operation
    • Optional wireless version available: CRMX™ technology from Lumen Radio
  • Display

    • QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
    • Pan/Tilt resolution: 16bit
    • Movement control: Tracking and vector
    • Colour wheel positioning: 8 or 16bit
    • Zoom: 8 or 16bit
    • Dimmer: 8 or 16bit
    • Ethernet port: Art-Net protocol, ready for ACN
    • Data in/out: Locking 3-pin & 5-pin XLR
    • Built-in analyser for easy fault finding
  • Electromechanical Effects

    • Cyan: 0–100%
    • Magenta: 0–100%
    • Yellow: 0–100%
    • CTO: 0–100%
    • Hot-spot control: Hot-or-not-spot
    • Colour wheel: 7 replaceable ″SLOT&LOCK″ dichroic filters + open, trapezoid shape
    • Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobing ″ZAP″
    • Motorized zoom
    • Pan: 540°
    • Tilt: 260°
  • Rigging

    • Mounting points: 2 pairs of ¼-turn locks
    • Fixation option: Pan/Tilt-lock mechanism
    • 2 x Omega bracket with ¼-turn quick locks
    • Safety chain/rope attachment point
  • Optional Accessories

    • Front wide-angle lens
    • Top hats
