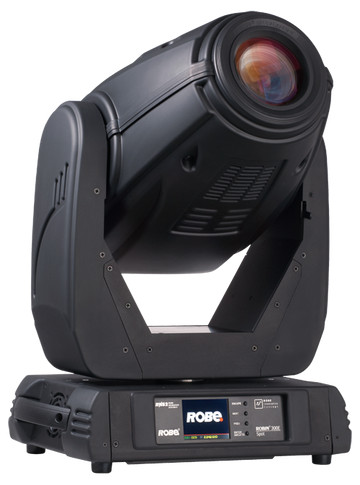

ROBIN® 300E Spot

Onboard is a package of specially designed modular features including a large 10° – 40° zoom, CMY+CTO, static and rotating gobo wheels, colour wheel, frost, iris and many more.

ROBIN® 300E Spot light is a neat, punchy profile fixture with superior functions such as a large linear zoom and dynamic hot-spot control, ideal for a wide range of applications.

A full package of rotating and static gobos plus full CMY+CTO and colour wheels give a standard base for any show. Advanced features like variable frost, linear iris, rotating prism and speedy mechanical shutters provide subtle and detailed in-tuning.

technical

specification

  • Source

    • Lamp: Compact high-presure metal halide lamp
    • Base: PGJX28
    • Approved model: Philips MSR Gold 300/2 MiniFastFit
    • Control: Automatic and remote on/off
    • Ballast: Electronic
  • Optical System

    • Dichroic glass reflector for maximising the light efficiency
    • Beam angle: 10° – 40°
  • Electromechanical Effects

    • Cyan: 0–100%
    • Magenta: 0–100%
    • Yellow: 0–100%
    • CTO: 0–100%
    • Hot-spot control: Hot-or-not-spot
    • Colour wheel: 7 replaceable ″SLOT&LOCK″ dichroic filters + open, trapezoid shape
    • Static Gobo wheel: 9 replaceable ″SLOT&LOCK″ metal gobos + open
    • Rotating Gobo wheel: 7 rotating, indexable, replaceable ″SLOT&LOCK″ dichroic and glass gobos + open
    • Iris: Motorized, stepless, up to 3 Hz
    • Prism: 3-facet 11° indexable prism rotating in both directions at different speeds
    • Frost effect: Separate, variable
    • Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing ″ZAP″
    • Motorized zoom and focus
    • Pan: 540°
    • Tilt: 280°
  • Control and Programming

    • Setting & Addressing: ROBE Navigation System 2 (RNS2)
    • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
    • Control channels: 23, 25, 32
    • 3 DMX protocol modes
    • 3-editable programs, each up to 100 steps
    • Stand-alone operation
    • Display:
    • QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
    • Pan/Tilt resolution: 16bit
    • Movement control: Tracking and vector
    • Colour wheel positioning: 8 or 16bit
    • Static gobo wheel positioning: 8 or 16bit
    • Rotating gobos: 8 or 16bit
    • Iris: 8 or 16bit
    • Frost: 8bit
    • Focus: 8 or 16bit
    • Dimmer: 8 or 16bit
    • Ethernet port: Art-Net protocol, ready for ACN
    • Data in/out: Locking 3-pin & 5-pin XLR
    • Built-in analyser for easy fault finding
    • Optional wireless version available: CRMX™ technology from Lumen Radio
  • Static Gobos

    • Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm
  • Rotating Gobos

    • Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass
  • Thermal

    • Maximum ambient temperature: 45 °C (104 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Rigging

    • Mounting points: 2 pairs of ¼-turn locks
    • Fixation option: Pan/Tilt-lock mechanism
    • 2 x Omega bracket with ¼-turn quick locks
    • Safety chain/rope attachment point
  • Electrical Specification

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100–240 V, 50/60 Hz
    • Power consumption: 450 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 516 mm (20.3″) – head in horizontal position
    • Width: 433 mm (17.0″)
    • Depth: 470 mm (18.5″)
    • Weight: 20 kg (44.1 lbs)
