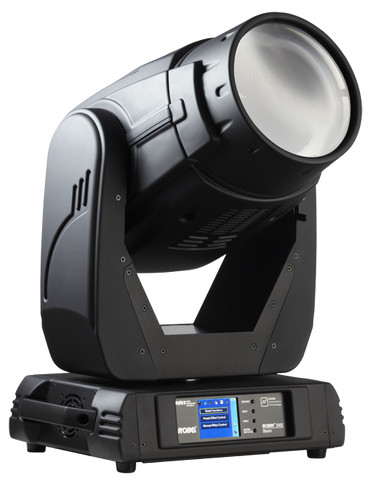

ROBIN® 300E Beam

The ROBIN® 300E Beam uses a Philips MSD Gold 300/2 MiniFastFit lamp and has a beam angle of 1.5 – 6.5 degrees, complete with dichroic glass reflector for maximising the light output.

As with all Robe fixtures, there is a host of creative features. In additional to full colour mixing, there is a colour wheel with 7 replaceable "SLOT&LOCK" dichroic filters, plus static and rotating gobo wheels.

The ROBIN® 300E Beam has a variable frost effect for the smooth transition from a beam light to a regular wash light. Full dimming a variable strobe effect and a pan and tilt of 540/260 degrees are also onboard.

The ROBIN® 300E Beam is robustly engineered to Robe’s exacting specifications and reliability standards.

technical

specification

  • Source

    • Lamp: Compact high-presure metal halide lamp
    • Base: PGJX28
    • Approved model: Philips MSD Gold 300/2 MiniFastFit
    • Control: Automatic and remote on/off
    • Ballast: Electronic
  • Optical System

    • Dichroic glass reflector for maximising the light efficiency
    • Beam angle:  1.5° - 6.5° 
  • Electrical Specification

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100  –  240 V, 50/60 Hz
    • Power consumption: 420 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 516 mm (20.3 ") – head in horizontal position
    • Width: 433 mm (17.0 ")
    • Depth: 458 mm (18.0 ")
    • Weight: 19.6 kg (43.0 lbs)
    • Fixation option: Pan/Tilt-lock mechanism
  • Thermal

    • Maximum ambient temperature: 45 °C (113 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Rotating gobos

    • Glass gobos - outside diameter: 26.8 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass
  • Control and Programming

    • Setting & Addressing: ROBE Navigation System 2 (RNS2)
    • Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
    • Control channels: 17, 19, 24
    • 3 DMX protocol modes
    • 3-editable programs, each up to 100 steps
    • Stand-alone operation
    • Display: QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
    • Pan/Tilt resolution: 16 bit
    • Movement control: Tracking and vector
    • Colour wheel positioning: 8 or 16 bit
    • Static gobo wheel positioning: 8 or 16 bit
    • Rotating gobos: 8 or 16 bit
    • Frost: 8 bit
    • Focus: 8 or 16 bit
    • Dimmer: 8 or 16 bit
    • Ethernet port: Artnet protocol, ready for ACN
    • Data in/out: Locking 3-pin & 5-pin XLR
    • Built-in analyser for easy fault finding
    • Optional wireless version available: CRMX™ technology from Lumen Radio
  • Electromechanical Effects

    • Cyan: 0 –100%
    • Magenta: 0 –100%
    • Yellow: 0 –100%
    • Colour wheel: 7 replaceable "SLOT&LOCK" dichroic filters + open, trapezoid shape
    • Static Gobo wheel: 4 gobos + 4 beam reducers
    • Rotating Gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK" dichroic and glass gobos + open
    • Frost effect: Separate, variable
    • Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing "ZAP"
    • Pan: 540°
    • Tilt: 260°
  • Rigging

    • Mounting points: 2 pairs of ¼-turn locks
    • 2x Omega bracket with ¼-turn quick locks
    • Safety chain/rope attachment point
