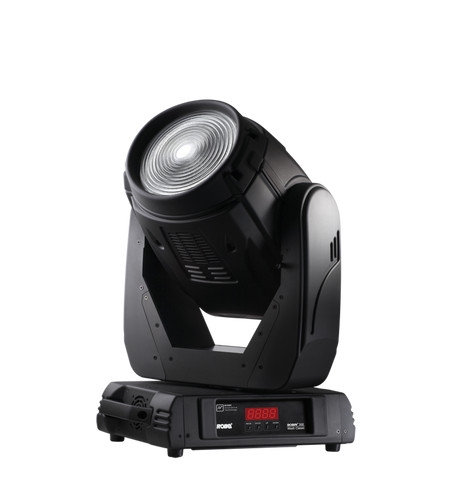

ROBIN® 300 Wash Classic

A flexible, lightweight, silent fixture with a zoom range of 10° – 35°. The compact dimensions of the ROBIN 300E Wash Classic make it easy to conceal, whilst providing an extremely efficient light output and a stunning colour range from the gentlest of pastels to the richest of saturates.

The enhanced CMS system mixes real colour correction quickly and accurately. The 7+1 colour wheel with its easily replaceable magnetic positions can spin rainbow effects at high and low speeds.

technical

specification

  • Source

    • Lamp: Compact high-presure metal halide lamp
    • Base: PGJX28
    • Approved model: Philips MSD Gold 300/2 MiniFastFit
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Dichroic glass reflector for maximising the light efficiency
    • Beam angle: 10° – 35°
  • Electrical Specification

    • Input voltage range: 208/230/240 V, 50/60 Hz
    • Power consumption: 450 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 518 mm (20.4 ") – head in horizontal position
    • Width: 433 mm (17.0 ")
    • Depth: 408 mm (16.1 ")
    • Weight: 22.6 kg (49.8 lbs)
    • Fixation option: Pan/Tilt-lock mechanism
  • Thermal

    • Input voltage range: 208/230/240 V, 50/60 Hz
    • Power consumption: 450 VA at 230 V/50 Hz
  • Control and Programming

    • Setting & Addressing: 4-digit LED display & 4 control buttons
    • Protocols: USITT DMX-512, RDM
    • Control channels: 13, 15, 18
    • 3 DMX protocol modes
    • one editable program up to 50 steps
    • Stand-alone operation, Master/slave operation
    • Pan/Tilt resolution: 8 or 16bit
    • Movement control: Tracking and vector
    • Colour wheel positioning: 8 or 16bit
    • Zoom: 8 or 16bit
    • Dimmer: 8 or 16bit
    • Built-in analyser for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Cyan: 0–100%
    • Magenta: 0–100%
    • Yellow:0–100%
    • Colour wheel: 7 replaceable "SLOT&LOCK" dichroic filters + open, trapezoid shape
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Motorized zoom
    • Pan: 540°
    • Tilt: 260°
  • Rigging

    • Mounting points: 2 pairs of ¼-turn locks
    • 2 x Omega bracket with ¼-turn quick locks
    • Safety chain/rope attachment point
  • Optional Accessories

    • Front wide-angle lens
    • Top hats
