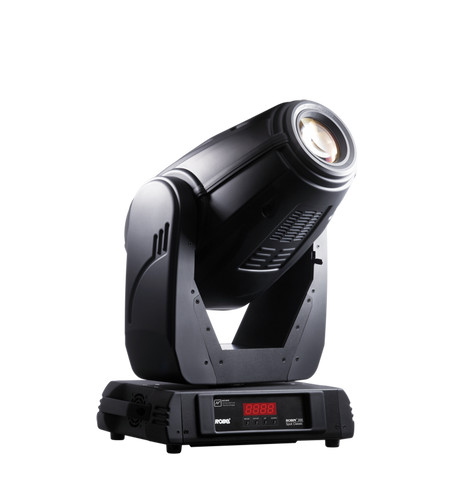

ROBIN® 300 Spot Classic

This fixture has a host of specially designed modular features including a 12° – 36° zoom, colour wheel, rotating gobo wheel, colour/gobo wheel, rotating prism and many more.

The ROBIN 300E Spot Classic is a punchy profile fixture with features such as linear zoom, a full package of rotating gobos, colour – gobo wheel including 4 colours and 5 static gobos and standard colour wheel.

Up to 24 colour mixes can be achieved with a combination of the colour wheel and colour/gobo wheel.

technical

specification

  • Source

    • Lamp: Compact high-presure metal halide lamp
    • Base: PGJX28
    • Approved model: Philips MSD Gold 300/2 MiniFastFit
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Dichroic glass reflector for maximising the light efficiency
    • Beam angle: 12° – 36°
  • Electrical Specification

    • Input voltage range: 208/230/240 V, 50/60 Hz
    • Power consumption: 475 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 516 mm (20.3 ") – head in horizontal position
    • Width: 433 mm (17.0 ")
    • Depth: 470 mm (18.5 ")
    • Weight: 23 kg (50.7 lbs)
    • Fixation option: Pan/Tilt-lock mechanism
  • Thermal

    • Maximum ambient temperature: 45 °C (104 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Rotating Gobos

    • Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm
    • Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass
  • Control and Programming

    • Setting & Addressing: 4-digit LED display & 4 control buttons
    • Protocols: USITT DMX-512, RDM
    • Control channels: 16, 18, 24
    • 3 DMX protocol modes
    • one editable program up to 50 steps
    • Stand-alone operation, Master/slave operation
    • Pan/Tilt resolution: 8 or 16 bit
    • Movement control: Tracking and vector
    • Colour wheel positioning: 8 or 16bit
    • Colour-gobo wheel positioning: 8 or 16bit
    • Rotating gobos: 8 or 16bit
    • Zoom/focus: 8 or 16bit
    • Dimmer: 8 or 16bit
    • Built-in analyser for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel: 7 replaceable "SLOT&LOCK" dichroic filters + open, trapezoid shape
    • Colour-Gobo wheel: 5 replaceable "SLOT&LOCK" static gobos + 4 colour positions + open
    • Rotating Gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK" dichroic and glass gobos + open
    • Prism: 3-facet 10° indexable prism rotating in both directions at different speeds
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Motorized zoom and focus
    • Pan: 540°
    • Tilt: 280°
  • Rigging

    • Mounting points: 2 pairs of ¼-turn locks
    • 2 x Omega bracket with ¼-turn quick locks
    • Safety chain/rope attachment point
