ROBIN® 300 Plasma Spot

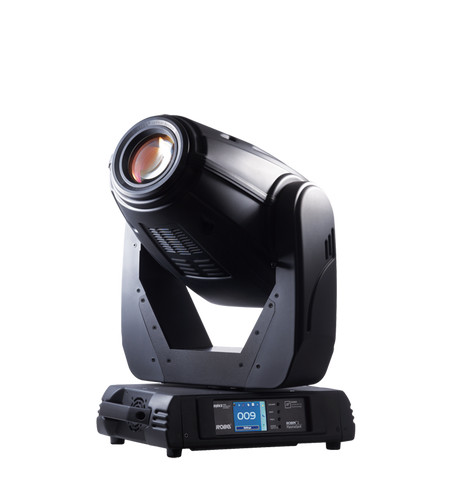

The amazing ROBIN® 300 Plasma Spot Light is the first in a unique and new era of plasma lamp based fixtures from Robe.

Robin 300 Plasma Spot light is the first in a new generation of fixtures we have all been dreaming about! A perfect colour rendering index (CRI = 94), an extremely flat and even light beam (1:1.5) and a lifespan of 10.000 hours – all these fantastic features exist thanks to a brand new light source – the plasma lamp, which is now being introduced to the market. Moreover, the new plasma lamp source offers a dimming capability from 20–100% and a semi-hot restrike function (less than 120 sec. for full lamp brightness after shutting off).

technical

specification

  • Source

    • Lamp: Plasma source
    • Approved model: Lifi ENT 31-02, 266 W, Luminous Flux 18.000 Lm, CCT 5.400 K, CRI=94, lamp life 10.000 Hrs
    • Control: Automatic and remote on/off
  • Optical System

    • Beam angle: 10° – 40°
  • Electrical Specification

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100–240 V, 50/60 Hz
    • Power consumption: 390 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 516 mm (20.3″) – head in horizontal position
    • Width: 433 mm (17.0″)
    • Depth: 470 mm (18.5″)
    • Weight: 21 kg (46.3 lbs)
  • Thermal

    • Maximum ambient temperature: 45 °C (113 °F)
    • Maximum surface temperature: 60 °C (140 °F)
  • Static Gobos

    • Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm
  • Rotating Gobos

    • Glass gobos - outside diameter: 26.8 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass
  • Control and Programming

    • Setting & Addressing: ROBE Navigation System 2 (RNS2)
    • Protocol: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
    • Control channels: 22, 24, 31
    • 3 DMX protocol modes
    • 3-editable programs, each up to 100 steps
    • Stand-alone operation
    • Optional wireless version available: CRMX™ technology from Lumen Radio
  • Display

    • QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
    • Pan/Tilt resolution: 16bit
    • Movement control: Tracking and vector
    • Colour wheel positioning: 8 or 16bit
    • Static gobo wheel positioning: 8 or 16bit
    • Rotating gobos: 8 or 16bit
    • Iris: 8 or 16bit
    • Frost: 8bit
    • Focus: 8 or 16bit
    • Dimmer: 8 or 16bit
    • Ethernet port: Art-Net protocol, ready for ACN
    • Data in/out: Locking 3-pin & 5-pin XLR
    • Built-in analyzer for easy fault finding
  • Electromechanical Effects

    • Cyan: 0–100%
    • Magenta: 0–100%
    • Yellow: 0–100%
    • CTO: 0–100%
    • Colour wheel: 7 replaceable ″SLOT&LOCK″ dichroic filters + open, trapezoid shape
    • Static Gobo wheel: 9 replaceable ″SLOT&LOCK″ metal gobos + open
    • Rotating Gobo wheel: 7 rotating, indexable, replaceable ″SLOT&LOCK″ dichroic and black and white glass gobos + open
    • Iris: Motorized, stepless, up to 3 Hz
    • Prism: 3-facet 11° indexable prism rotating in both directions at different speeds
    • Frost effect: separate, variable
    • Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobing ″ZAP″
    • Motorized zoom and focus
    • Pan: 540°
    • Tilt: 280°
  • Rigging

    • Mounting points: 2 pairs of ¼-turn locks
    • Fixation option: Pan/Tilt-lock mechanism
    • 2 x Omega bracket with ¼-turn quick locks
    • Safety chain/rope attachment point
