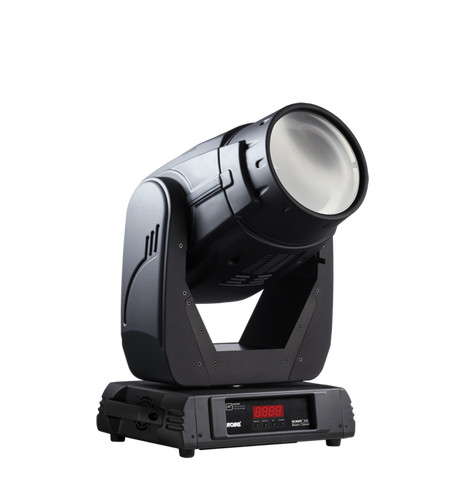

ROBIN® 300 Beam Classic

The Robin 300E Beam Classic uses a Philips MSD Gold 300/2 Mini FastFit lamp and has a beam angle of 1.5° – 6.5°, complete with dichroic glass reflector for maximising the light output.

The ROBIN 300E Beam Classic has a colour wheel with 7 replaceable ‘Slot&Lock’ dichroic filters, plus both static and rotating gobo wheels.

A variable frost effect ensures a smooth transition from a beam light to a regular wash light, and there is also full dimming, variable strobe effect and pan/tilt of 540/260 degrees.

technical

specification

  • Source

    • Lamp: Compact high-presure metal halide lamp
    • Base: PGJX28
    • Approved model: Philips MSD Gold 300/2 MiniFastFit
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Dichroic glass reflector for maximising the light efficiency
    • Beam angle: 1.5° – 6.5°
  • Electrical Specification

    • Input voltage range: 208/230/240 V, 50/60 Hz
    • Power consumption: 430 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 648 mm (25.5 ")
    • Width: 433 mm (17.0 ")
    • Depth: 458 mm (18.0 ")
    • Weight: 22.4 kg (49.3 lbs)
    • Fixation option: Pan/Tilt-lock mechanism
  • Thermal

    • Maximum ambient temperature: 45 °C (113 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Rotating Gobos

    • Glass gobos - outside diameter: 26.8 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass
  • Control and Programming

    • Setting & Addressing: 4-digit LED display & 4 control buttons
    • Protocols: USITT DMX-512, RDM
    • Control channels: 13, 15, 20
    • 3 DMX protocol modes
    • one editable program up to 50 steps
    • Stand-alone operation, Master/slave operation
    • Pan/Tilt resolution: 8 or 16 bit
    • Movement control: Tracking and vector
    • Colour wheel positioning: 8 or 16bit
    • Static gobo wheel positioning: 8 or 16bit
    • Rotating gobos: 8 or 16bit
    • Frost: 8 bit
    • Focus: 8 or 16bit
    • Dimmer: 8 or 16bit
    • Built-in analyser for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel: 7 replaceable "SLOT&LOCK" dichroic filters + open, trapezoid shape
    • Static Gobo wheel: 4 gobos+4 beam reducers + open
    • Rotating Gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK" dichroic and glass gobos + open
    • Frost effect: Separate, variable
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Motorized focus
    • Pan: 540°
    • Tilt: 260°
  • Rigging

    • Mounting points: 2 pairs of ¼-turn locks
    • 2 x Omega bracket with ¼-turn quick locks
    • Safety chain/rope attachment point
