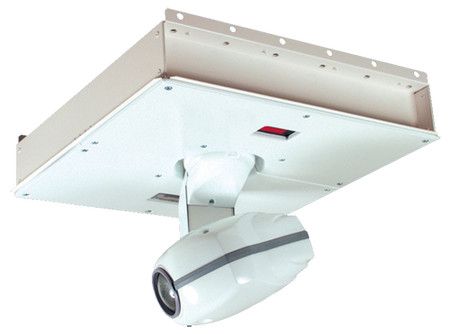

RecessedWash 150 AT

RecessedWash 150 AT is ideal for architectural lighting, bars, restaurants, clubs, retail stores, churches, exhibit halls and for all other ceiling-mount aplications. The RecessedWash 150 is a ceiling-mount version of Wash 150 XT with all functions of the popular Wash 150 XT moving head. Its colour wheel offers 10 dichroic slots plus open, and it has a dimmer and shutter. It uses a 150 Watt CDM lightsource from Philips.

technical

specification

  • Source

    • Lamp: Compact discharge lamp
    • Base: G-12
    • Approved model: Philips CDM-SA/T 150/942
    • Ballast: Magnetic
  • Optical System

    • 21° beam angle
  • Electrical Specification

    • Wiring options – EU - model: 208/230/240V AC, 50/60Hz,
    • Wiring options – US - model: 100/120/208/230/240V AC, 50/60Hz
    • Power consumption: 300 VA at 230V/50Hz
  • Mechanical Specification

    • Height (including ceiling box): 410 mm (16.1") - head
    • in horizontal position
    • Width (including ceiling box): 595 mm (23.4")
    • Depth (including ceiling box): 593 mm (23.3")
    • Weight - moving head: EU model 10 kg (22.0 lbs)
    • Weight – moving head: US model 12 kg (26.4 lbs)
    • Weight-ceiling box: 7kg (15.4 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 40°C (104°F)
    • Maximum surface temperature: 80°C (176°F)
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 6 – 8 DMX, 4 protocol modes
    • Built-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 8- or 16-bit
    • Master/slave operating
    • 4 DMX channel-presettings
    • Movement control: Tracking and vector
    • Buit-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
    • built-in microphone for audio mode
  • Electromechanical Effects

    • Colour wheel: 11 dichroic filters + open
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Pan: 530°
    • Tilt: 280°
    • Maximum Pan-movement 530° in 3 s
    • Maximum Tilt-movement 280° in 1.9 s
  • Rigging

    • Ceiling box for 600x600 mm grid mounting
    • Integral attachment points for wire hangers or all-thread support
