FUSION™

FUSION™

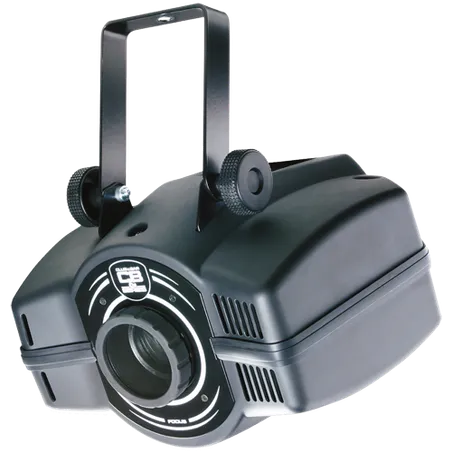

This effect projector is fully DMX controllable; projects tightly focussed flower effects and other graphic effects; offers original gobo designs; includes a parabolic mirror reflector that rotates in both directions; a combined gobo/colour wheel with 14 positions plus open; comes with a powerful 250W halogen lamp (1000hrs life); a strobe effect and 0-100% digital dimming; ″auto-trigger″ or ″music-trigger″ mode for full flexibility.

technical

specification

  • Source

    • Lamp: Halogen lamp
    • Base: GX5.3
    • Approved model: Philips ELC/24V/250W, 1000 hrs life
    • Control: Automatic and remote on/off
  • Optical System

    • Manual focus
    • Parabolic mirror reflector
  • Electrical Specification

    • Wiring options: 100/120/208/230/240V, 50/60Hz
    • Power consumption: 250VA at 230V/50Hz
  • Mechanical Specification

    • Height: 331 mm (13.0″) - bracket in horizontal position
    • Width: 326 mm (12.8″)
    • Depth: 285 mm (11.2″)
    • Weight: 7.5 kg (16.5 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 40°C (104°F)
    • Maximum surface temperature: 75°C (167°F)
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 3
    • Display: 3-digit LED display
    • Built-in demo sequences
    • Master/Slave operation
    • Stand-alone operation
    • 1-editable program up to 30 steps
    • Built-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
    • Auto- and music-trigger
  • Electromechanical Effects

    • Gobo wheel: 14 static gobos + open
    • Strobe effect with variable speed (max. 4 flashes/sec.)
    • Rotating parabolic mirror reflector
  • Rigging

    • Mounting bracket
