MMX WashBeam™
Encompassing all the new technologies develeoped for the MMX Spot, the WashBeam provides the lighting designer with a huge range of features and effects in a single fixture.
Light source
Philips MSR Platinum 35
Light output
beam mode : 235.000 lux @ 5m, wash mode : 86.700 lux @ 5m / 22.800 lm
Zoom range
Beam application: 3°-65°, Wash application: 4°-54°
Effects
rotating gobo wheel, internal barndoor module,
The Phillips Platinum 35 light source together with the Robe MMX optical system, produces a light output exceeding most traditional 1200 W products. Robin MMX WashBeam uses innovative internal motorized barndoors module for creating different unique shapes and chases, in the which also simulates barndoor effects. The module consists of four individually controllable blades and is rotatable by 180 degrees. With the change of a lens, the WashBeam switches from a super-flat, even wash - extendable out to 54 degrees into a tight 3 degree Beam effect machine - both options retaining all the key performance features of the MMX family - including full CMY colour mixing, saturated colour wheel, variable CTO, variable Hot-Spot control, motorised Zoom & Focus and Rotating indexable glass gobos - all adding up to a real advantage over other existing Beam products.
Technical Specification
Source
Lamp: Compact high-pressure metal halide lamp
Base: PGJX36
Approved model: Philips MSR Platinum 35, 1200 W equivalent
Control: Automatic and remote on/off
Ballast: Electronic
Optical system
Dichroic glass reflector
Zoom range Beam application: 3°-65°
Zoom range Wash application: 4°-54°
Electromechanical effects
Cyan: 0–100%
Magenta: 0–100%
Yellow: 0–100%
CTO: 0–100%
Hot-spot control: Variable selection ‘hot spot@ on flat beam
Colour wheel: 6 dichroic filters + white
Rotating Gobo wheel: 6 rotating, indexable, replaceable "SLOT & LOCK" glass gobos + open + beam reducer
Beam Shaper: individual position control of 4 ‘doors’ +/- 90° module rotation
Dimmer/Shutter: Full range dimming, variable strobe effect, Electronic strobbing "ZAP" effect
Motorized zoom and focus
Remote Beam flatness / Hot spot control (patent pending)
Control and programming
Colour Touch Screen: ROBE Navigation System 2 (RNS2), battery backup
Protocols: DMX-512, RDM, ArtNet, MA Net, MA Net2 DMX Modes (channels): 3 ( 34, 29, 26)
3 user defined programs, each up to 100 steps
Stand-alone operation
Pan/Tilt 540°/270°: 8 or 16 bit
Movement control: Tracking and vector
Colour wheel positioning: 8 or 16bit
Rotating gobo wheel positioning: 8 or 16bit
Gobo indexing & rotation: 8 or 16bit
Wide Zoom: 8 bit
Zoom: 8 or 16bit
Focus: 8 or 16bit
Dimmer: 8 or 16bit
Internal Barndoor Module Movement/Rotation: 8bit
Optional wireless version available : CRMX technology from Lumen Radio
Data in/out: Locking 3-pin & 5-pin XLR, RJ45
Built-in analyser for easy fault finding
Rotating gobos
Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass
Aluminium Gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, thickness: 0.5 mm
Internal barndoors
Four individually controllable blades
Rotation 0°-180° (all blades together)
Thermal specification
Maximum ambient temperature: 45 °C (104 °F)
Maximum surface temperature: 100 °C (212 °F)
Electrical specification and connections
Supply input: 100–240 V, 50/60 Hz auto ranging
Power consumption: 1020 W max.
Approvals
CE
cETLus
Mechanical specification
Height: 695 mm (27.4") – head in vertical position
Width: 446 mm (17.6")
Depth: 268 mm (10.6”)
Weight: 25.5 kg (56.2 lbs)
Rigging
2x Omega brackets (supplied) with ¼-turn quick locks
Pan and Tilt transport locks
Gobos&Colours

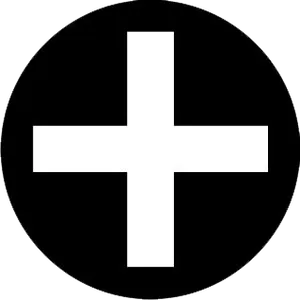

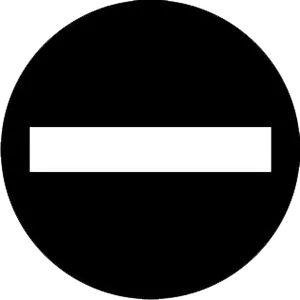

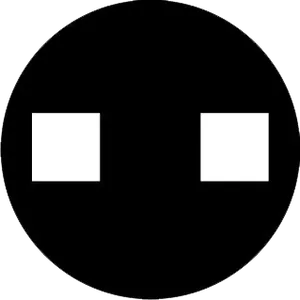

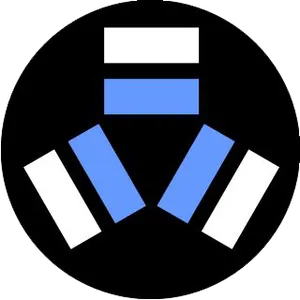

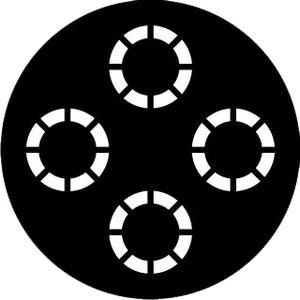

Rotating Gobo Wheel
15010756
15010758
15010759
15030032
15010755
15010760
Colour Wheel
14070344
14070343
14070342
14070341
14070340
14070339
