MMX Spot™

The Robe MMX is a new technology discharge fixture that has similar light output to most existing 1200W luminaires.

Light source

Philips MSR Platinum 35

Light output

26.141 lm

Zoom range

8,5° - 46,5°

Effects

2x rotating gobo wheel, Dual Animation Wheel, 5-facet rotating prism

| ROBE lighting

The unit is based on the all new Robin advanced technology design that provides Brighter, more efficient, physically lighter and smaller fixtures than previously possible. The MMX includes the Robe exclusive Hot-Spot lamp control feature that allows remote adjustment of flat beam uniformity or power beam hot-spot. Key feature of the MMX is the 'Dual Graphics Wheel' - 2 fully controllable contra-rotating plates that can be positioned anywhere across the light path to produce unique visual effects.

Technical Specification

Source

Lamp: Compact high-presure metal halide lamp

Base: PGJX36

Approved model: Philips MSR Platinum 35, 1200 W equivalent

Control: Automatic and remote on/off

Ballast: Electronic

Optical system

Fixture total lumen output: 26141 lm

Dichroic glass reflector for maximising the light efficiency

Beam angle:

Zoom range: 8.5° – 46.5° (8.5° – 42.5° for gobo, 9.8° – 46.5° for open hole)

Electromechanical effects

Cyan: 0–100%

Magenta: 0–100%

Yellow: 0–100%

CTO: 0–100%

Hot-spot control: Hot-or-not-spot

Colour wheel: 6 dichroic filters + white

Dual Graphic Wheel

Rotating Gobo wheel 1: 7 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open

Rotating Gobo wheel 2: 7 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open Iris: Motorized, stepless, pulse effects up to 3 Hz

Prism: 5-facet prism rotating in both directions at different speeds

Frost effect: Separate, variable

Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing "ZAP" effect

Motorized zoom and focus

Pan: 540°

Tilt: 270°

Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2

Optional wireless version available: CRMX™ technology from Lumen Radio

Control channels: 38, 31, 29, 40 4 DMX protocol modes

3-editable programs, each up to 100 steps

Stand-alone operation

QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC

Pan/Tilt resolution: 8 or 16 bit

Movement control: Tracking and vector

Colour wheel positioning: 8 or 16bit

Rotating gobo wheel positioning: 8 or 16bit

Gobo indexing & rotation: 8 or 16bit

Dual Graphic Wheel: 8 bit Iris: 8 or 16bit

Frost: 8 bit Zoom: 8 or 16bit

Focus: 8 or 16bit

Dimmer: 8 or 16bit

Ethernet port: Art-Net protocol, ready for ACN

Data in/out: Locking 3-pin & 5-pin XLR

Built-in analyser for easy fault finding

Rotating gobos

Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass

Thermal specification

Maximum ambient temperature: 45 °C (104 °F)

Maximum surface temperature: 100 °C (212 °F)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100–240 V, 50/60 Hz

Power consumption: 1020 W at 230 V / 50 Hz

Approvals

CE

cETLus

Mechanical specification

Height: 722 mm (28.4") – head in vertical position

Width: 446 mm (17.6")

Depth: 530 mm (20.8")

Weight: 25.5 kg (56.2 lbs)

Fixation option: Pan/Tilt-lock mechanism

Rigging

Mounting points: 2 pairs of ¼-turn locks

2 x Omega brackets with ¼-turn quick locks

Gobos&Colours

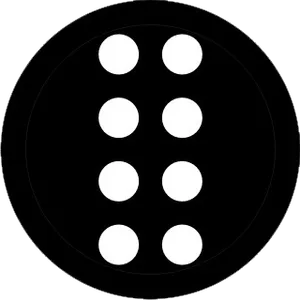

Rotating Gobo Wheel

15020255

15020249

15020250

15020178

15020252

15020251

15030030

Rotating Gobo Wheel 2

15020248

15020190

15020253

15020254

15020256

15020257

15020143

Colour Wheel

14070344

14070343

14070342

14070341

14070340

14070339

Animation Wheel

11020168

11020169

11020170

11020171

11020172
