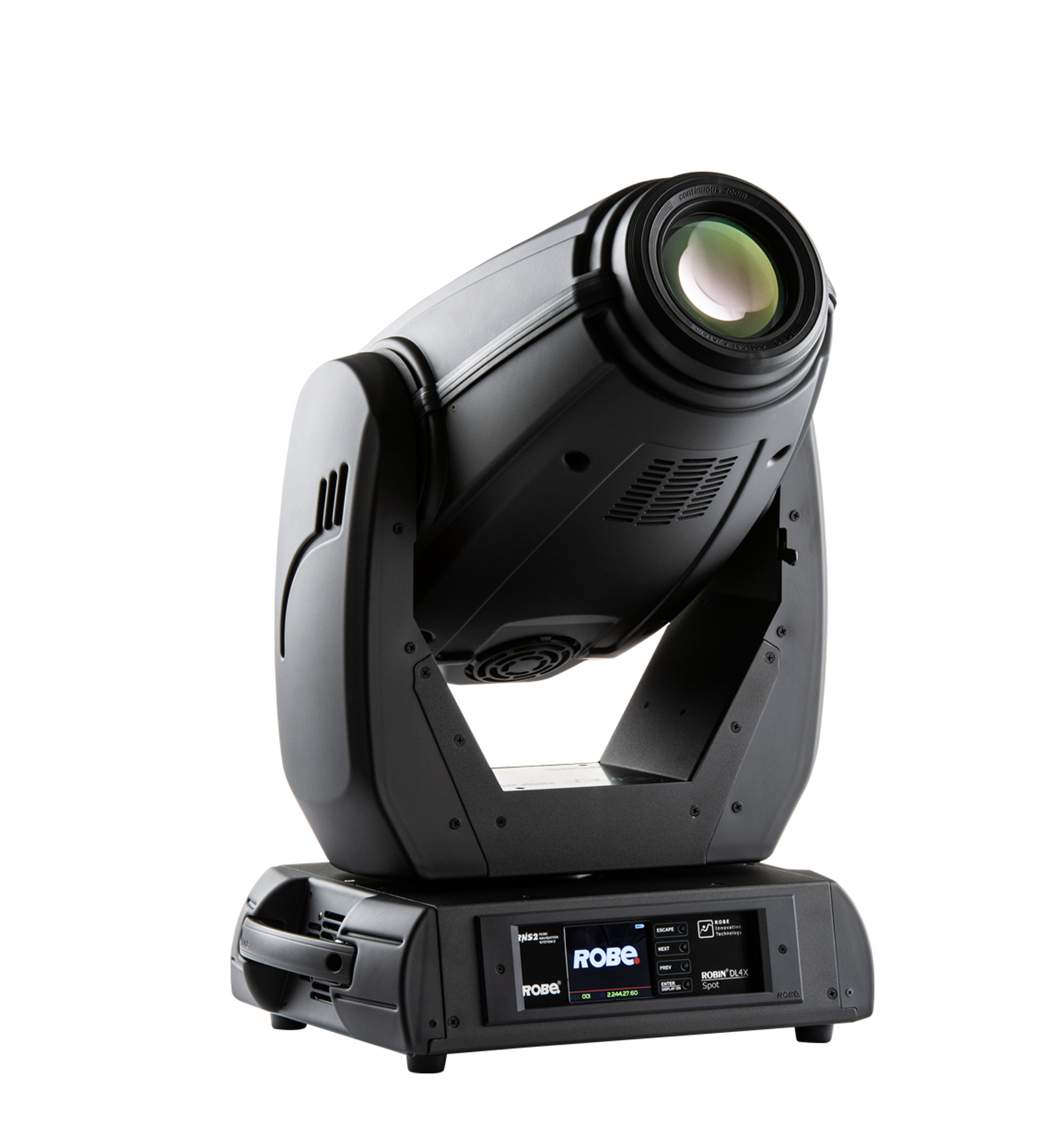

DL4X Spot™
Improved, brighter version of the ROBE RGBW LED module allows the DL4X Spot fixture to utilize the specifically modified colour mixing and dimming for extra smooth, stepless operation especially at minimum brightness levels while giving colour outputs brighter than a 1200 Watt discharge unit, but with an average very eco-friendly power consumption of only 250 Watts.
Light source
480 W RGBW LED engine
Light output
6.320 lm
Zoom range
10° - 45°
Effects
rotating and static gobo wheel
To magnify the already perfectly smooth colours, fades and dimming, the DL4X features innovative LED driving system for improved, extremely high definition dimming curve for all R, G, B, W colours, with 18 bit resolution. The optical system produces a very smooth, high quality light output of rich, beautiful colours with no shadows and utilizes a versatile zoom of 10 – 45 degrees. Effects features consist of a combination of static and rotating gobo wheels that have custom replaceable positions, variable frost, three-faceted prism, superfast iris and more... including full range dimming and variable strobe effects.
Technical Specification
Source
Light source type: 480 W RGBW LED engine
LED life expectancy: min. 20 000 hours
Control: Automatic and remote on/off
Light source warranty: 3 years or 20.000 hours
Illuminance: 11.230 lx @ 5 m
Optical system
Robe’s proprietary optical design
High - efficiency zoom optical system, ratio 4.5:1
Zoom range: 10° - 45°
Fixture total lumen output: 6.320 lm
Light output: 11.230 lx @ 5 m
Dynamic Effects and Features
Colour mixing mode RGBW or CMY
Variable CTO: 2.700K - 8.000K
Virtual Colour Wheel: preprogrammed 237 colours including whites (2.700K, 3.200K, 4.200K, 5.600K and 8.000K)
Tungsten lamp effect at whites: 2.700K and 3.200K
Rotating gobo wheel: 7 rotating, indexable, replaceable
Static gobo wheel: 9 static, replaceable
Prism: 3 - facet 11° prism rotating in both directions at variable speed
Iris: Motorized, stepless, pulse effects up to 3 Hz
Frost: Separate, variable
Motorized zoom and focus
Electronic strobe effect with variable speed up to 20 Hz
Pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
Wireless CRMX™ technology from Lumen Radio
DMX Protocol modes: 3
Control channels: 35, 25, 23
Pan/Tilt resolution: 16 bit
Colour mixing: 8 or 16 bit (internal 18 bit)
Rotating gobo wheel positioning: 8 bit
Static gobo wheel positioning: 8 bit
Gobo indexing & rotation: 8 or 16 bit
Prism indexing & rotation: 8 bit
Iris: 8 or 16 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Dimmer: 8 or 16 bit (internal 18 bit)
Movement
Pan movement: 540°
Tilt movement: 280°
Movement control: Standard and Speed
Controllable speed of Pan/Tilt movement
Automatic Pan/Tilt position correction
Rotating gobos
7x rotating glass gobos
Image diameter: 25.0 mm
Outside diameter: 26.8 mm
Thickness: 1.1 mm
Max. thickness: 4 mm
High temperature borofloat or better glass
"SLOT&LOCK" system for easy replacement of gobos
Static gobos
9 x Aluminium gobos
Outside diameter: 26.9 mm
Image diameter: 22.5 mm
Thickness: 0.5 mm
"SLOT&LOCK" system for easy replacement of gobos
Thermal specification
Maximum ambient temperature: 45°C (113°F)
Maximum surface temperature: 90°C (194°F)
Minimum operating temperature: -5°C (23°F)
Electrical specification and connections
Power supply: Electronic auto-ranging Input voltage range: 100-240 V, 50/60 Hz
Power consumption: maximum 550 W at 230 V / 50 Hz (RGBW = full)
Typical power consumption: 160 - 215 W (one colour = full)
Power in connector: Neutrik powerCON
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in: RJ45
Approvals
CE Compliant
cETLus Compliant
Mechanical specification
Height: 678 mm (26.7")
Width: 432 mm (17")
Depth: 480 mm (18.9") - head in horizontal position
Weight: 21.4 kg (47.2 lbs)
Ingress protection rating: IP20
Rigging
Mounting positions: Horizontally or vertically
Universal operating position
Mounting points: 2 pairs of 1/4-turn locking points
2x Omega adaptors with 1/4-turn quick locks
Safety cable attachment point
Pan and Tilt transport locks
Included items
User Manual
Omega Adaptor CL-regular 2 pcs
Power cord including powerCON In connector
Optional accessories
Doughty Trigger Clamp : 17030386
Safety wire 35 kg: 99011963
Single Top Loader Case: 10120078-01
Dual Top Loader Case: 10120076-01
Foam Shell: 20020270
Legal
DL4X Spot™ is a trademark of Robe lighting s.r.o.
DL4X Spot™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents

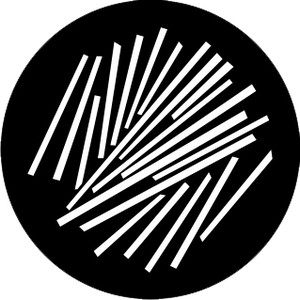

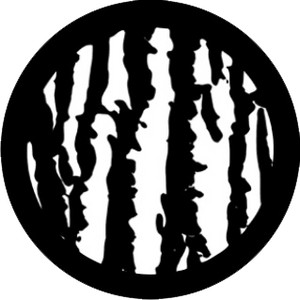

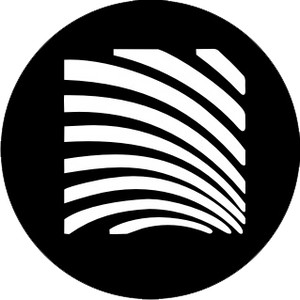

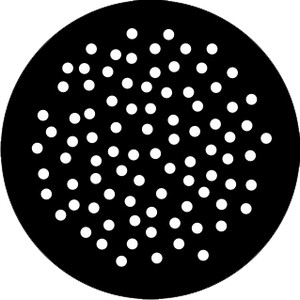

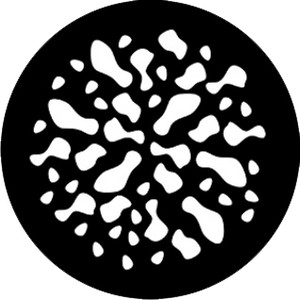

Gobos&Colours
Rotating Gobo Wheel
15030031
15020265
15020264
15020263
15020262
15020261
15020260
Static Gobo Wheel
15010739
15010740
15010741
15010742
15010743
15010744
15010745
15010746
15010747
