DL7S Profile™

The DL7S Profile is the first DL range fixture to receive a powerful new 800W version of the LED engine with seven colours for unprecedented smooth, stable and even colour mixing and a very high CRI.

Light source

800 W 7 colours LED engine

Light output

8.590 lm

Zoom range

7°- 43°

Effects

rotating and static gobo wheel, animation wheel, framing shutters module, 5-facet rotating prism

| ROBE lighting

From the deepest to the lightest colours the DL7S provides a rich full colour spectrum experience, and features custom colour mixing and dimming and seamless operation especially at the minimum brightness levels. Four fast framing shutters within the optical path are individually controllable for position and angle and the entire framing module can be rotated. Crisp and soft frames can be used on projections, and a new series of effects is possible using a selection of preprogrammed shutter blade shape and movement sequences. One rotating gobo wheel with six slot&lock gobo positions plus a static gobo wheel with 8 static gobos can be combined with the Animation wheel. Other effects and features include variable frost, rotating prism and super-fast iris. As with all the DL luminaire range, the multiple LED lightsource is completely homogenised.

Technical Specification

Source

Light source: Robe's 800 W 7 colours LED engine

LED engine life expectancy: 20.000 hrs

CRI: 90

Control: Automatic and remote on/off

Light source warranty: 3 years or 20.000 hours

Optical system

Robe’s proprietary optical design

High - efficiency zoom optical system, ratio 6:1

Zoom range: 7° - 43°

Output lens diameter: 132 mm

Fixture total lumen output: 8.590 lm

Illuminance: 17.720 lx @ 5 m

Dynamic Effects and Features

Colour mixing mode RGB/CMY or 7 colours (8 or 16 bit)

Variable CTO: 2.700K - 8.000K

Virtual Colour Wheel: with 80 preset swatches

Tungsten lamp effect at whites: 2700K - 4200K

Green correction function

Framing shutters : 4 individually positionable blades plus rotation of the complete frame system +-45°

Rotating gobo wheel: 6 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open

Static gobo wheel: 8 static, replaceable "SLOT&LOCK" glass gobos + open

Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed

Prism: 5 - facet 10° prism rotating in both directions at variable speed

Iris: Motorized, stepless, pulse effects up to 3 Hz

Frost: Variable, replaceable frost filter 1°; 20° filter included

Motorized zoom and focus

Electronic strobe effect with variable speed up to 20 Hz

Pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

Wireless CRMX™ technology from Lumen Radio

DMX protocol modes: 4

DMX modes (channels): 51, 42, 59, 46

Pan/Tilt resolution: 16 bit

Colour mixing: 8 or 16 bit (internal 18 bit)

Framing shutters module movement & rotation: 8 bit

Rotating gobo wheel positioning: 8 bit

Static gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16 bit

Animation wheel: 8 bit

Animation wheel rotation: 8 bit

Prism indexing & rotation: 8 bit

Iris: 8 or 16 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Dimmer: 8 or 16 bit (internal 18 bit)

Movement

Pan movement: 540°

Tilt movement: 270°

Movement control: Standard and Speed

Controllable speed of Pan/Tilt movement

EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)

Automatic Pan/Tilt position correction

Rotating gobos

6x rotating glass gobos

Outside diameter: 30.8 mm

Image diameter: 25.0 mm

Thickness: 1.1 mm

Max. Thickness: 3.5 mm

High temperature borofloat or better glass

"SLOT&LOCK" system for easy replacement of gobos

Static gobos

8x static glass gobos

Outside diameter: 30.8 mm

Image diameter: 25.0 mm

Thickness: 1.1 mm

High temperature borofloat or better glass

"SLOT&LOCK" system for easy replacement of gobos

Effect wheel

Single animation wheel

Material: Aluminium

Can be used alone or in combination with rotating gobos

Rotating in both directions, variable speed

Framing shutters system

Shutters: 4 Blades, each with separate movement and +- 25° rotation control

Movement: Smooth with variable speed, ultra fast blade movement for creating mid-air effects

Pre-programmed: Shape and blade sequences

Rotation: 90° of the complete Framing system

Thermal specification

Maximum ambient temperature: 45 °C (104 °F)

Maximum surface temperature: 80°C (176°F)

Minimum operating temperature: -5 °C (23 °F)

Cooling: Forced air (temperature-regulated, low noise, user-selectable modes)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 1000 W at 230 V / 50 Hz

Power in connector: Neutric powerCON TRUE1

DMX and RDM data in/out: Locking 3-pin & 5-pin XLR

Ethernet port in: RJ45

Approvals

CE Compliant

cETLus Compliant

Mechanical specification

Height: 796 mm (31.3") - head in vertical position

Width: 472 mm (18.6")

Depth: 321 mm (12.6")

Weight: 35.9 kg (79.1 lbs)

Ingress protection rating: IP20

Rigging

Mounting positions: Horizontally or vertically

Universal operating position

Mounting points: 2 pairs of 1/4-turn locking points

2x Omega adaptors with 1/4-turn quick locks

Safety cable attachment point

Pan and Tilt transport locks

Included items

User Manual

20° frost filter

Omega Adaptor CL-regular 2 pcs

Power cord including powerCON TRUE1 In connector

Optional accessories

Frost 10° (exchange) assembled: 10980288

Frost 30° (exchange) assembled: 10980289

Doughty Trigger Clamp: 17030386

Safety wire 50 kg: 99011957

Single Top Loader Case: 10120172-02

Dual Top Loader Case: 10120173-01

Foam Shell: 20020245-01

Legal

DL7S Profile™ is a trademark of Robe lighting s. r. o.

DL7S Profile™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents

Gobos&Colours

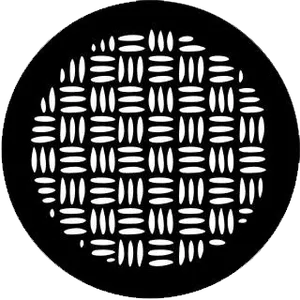

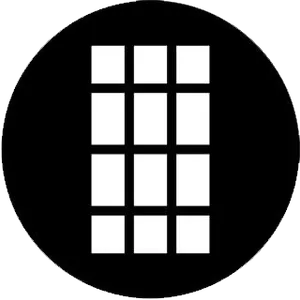

Rotating Gobo Wheel

15020312

15020313

15020314

15020315

15020316

15020317

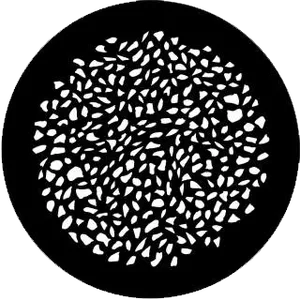

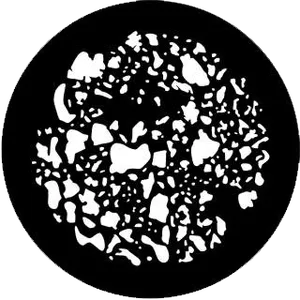

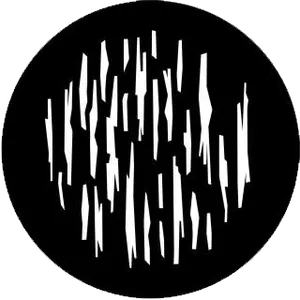

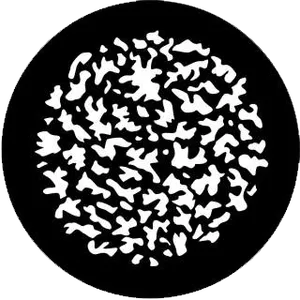

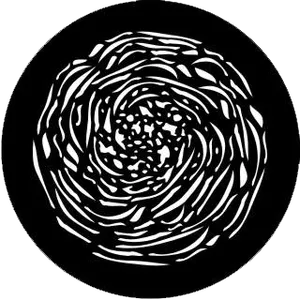

Static Gobo Wheel

15020304

15020305

15020306

15020307

15020308

15020309

15020310

15020311

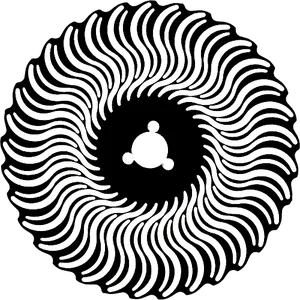

Animation Wheel
