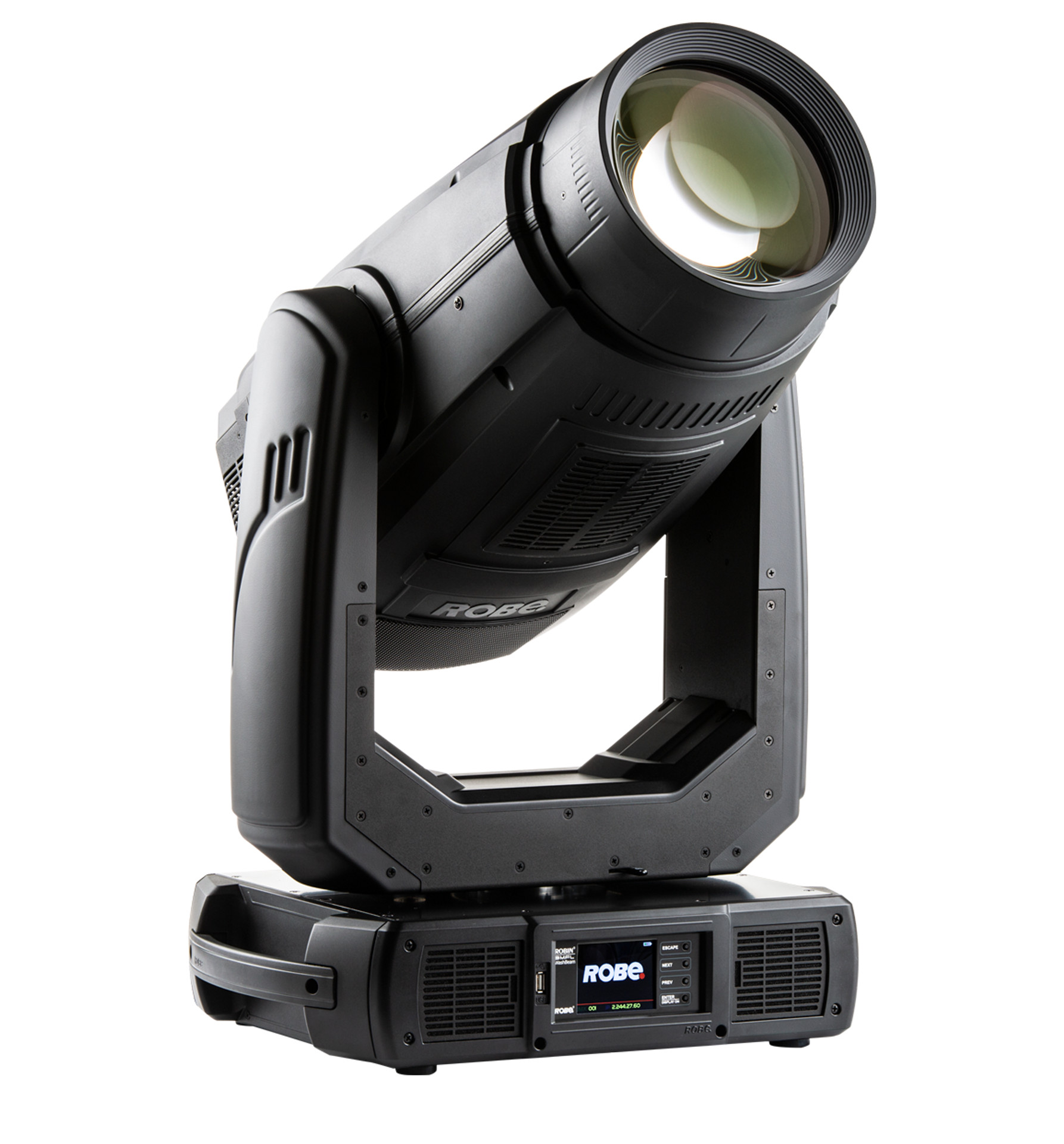

BMFL™ WashBeam

The strong-arm of the BMFL™ family - the superbly powerful BMFL WashBeam comes with extra bright output and an abundance of great features, e.g newly developed framing shutters, super wide front lens and animation wheel.

Light source

1700 W OSRAM Lok-it! HTI 1700/PS

Light output

41.000 lm, 300.000 lx @ 5 m, 3.000 lx @ 50 m

Zoom range

5° - 45°

Effects

framing shutters, rotating gobo wheel, interchangeable frost

| ROBE lighting

The BMFL WashBeam will enhance any show with its large beam produced through wide 180 mm front lens. With custom light source designed for Robe it produces an astounding 300.000 lux at 5 metres! Rotating gobo wheel with carefully selected gobos ensure many combinations of in air animations, but can also produce nice spot-like projections on surfaces. Four fast shutter blades with smooth and precise movement offer individually angled positions within a frame - which itself can rotate through 90 degrees, providing a sharp or soft, precisely repeatable frame for the projected image. Fast movement of the framing system also allows unique in air beam effects. Adding frost filters can enhance the projection by adding smooth touches to the beam‘s edge.

Technical Specification

Source

Lamp: Compact short-arc metal halide lamp

Base: PGJX28

Approved model: OSRAM Lok-it! HTI 1700/PS

Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode

CRI 92+

Colour temperature: 6.000 K

Control: Automatic and remote on/off

Ballast: Electronic

Optical system

Robe’s proprietary optical design

High - efficiency zoom optical system, ratio 9:1

Zoom range: 5° - 45°

Output lens diameter: 180 mm

Dichroic glass reflector for maximising the light efficiency

High efficient component optics

  • 41.000 lm @ 1700 W

  • 38.130 lm @ 1500 W

  • 33.620 lm @ 1200 W (Quiet mode)

Light output: 300.000 lx @ 5 m, 3.000 lx @ 50 m

Dynamic Effects and Features

Cyan: 0-100 %

Magenta: 0-100 %

Yellow: 0-100 %

Variable CTO: 2.700-6.000 K

Colour wheel 1: 6 fixed dichroic colours - deep red, deep blue, orange, green, magenta, congo blue + white

Colour wheel 2: 6 replaceable "SLOT&LOCK" dichroic colours - pink, lavender, laser green, 9.000 K CTB, minus half and minus green + white

Framing shutters: 4 individually positionable blades plus rotation of the complete frame system +-45°

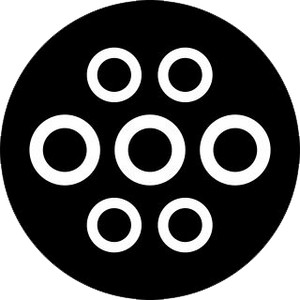

Rotating gobo wheel: 6 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open

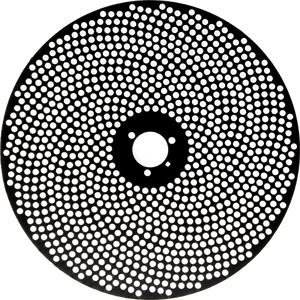

Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed

Iris: Motorized, stepless, pulse effects up to 3 Hz

Frost: Variable Light, Medium plus replaceable Heavy (two another frosts included)

Motorized zoom and focus

Shutter: Separate dual blade system, Variable strobe effect up to 10 Hz, full black out

Dimmer: Optimized dual blade system for exceptional smooth dimming

Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, Art-Net, MA Net, MA Net2, sACN

REAP™ - Robe Ethernet Access Portal

Wireless version: CRMX™ technology from Lumen Radio

DMX Protocol modes: 2

Control channels: 48, 41

Pan/Tilt resolution: 16 bit

CMY & CTO: 8 bit

Colour wheel positioning: 8 or 16 bit

Framing shutters module movement & rotation: 8 bit

Rotating gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16 bit

Animation wheel: 8 bit

Animation wheel rotation: 8 bit

Iris: 8 or 16 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Dimmer: 8 or 16 bit

Movement

Pan movement: 540°

Tilt movement: 270°

Movement control: Standard and Speed

Controllable speed of Pan/Tilt movement

EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patent pending)

Automatic Pan/Tilt position correction

Rotating gobos

6x rotating glass gobos

Outside diameter: 30.8 mm

Image diameter: 25.0 mm

Thickness: 1.1 mm

Max. thickness: 3.5 mm

High temperature borofloat or better glass

Effect wheel

Single animation wheel

Material: Aluminium

Diameter: 109 mm

Can be used alone or in combination with rotating gobos

Rotating in both directions at variable speed

Framing shutters system

Shutters: 4 Blades, each with separate movement and +- 25° rotation control

Movement: Smooth with variable speed, ultrafast blade movements for creating mid-air effects

Pre-programmed: Shape and blade sequences

Rotation: 90° of the complete framing system

Thermal specification

Maximum ambient temperature: 45 °C (113 °F)

Maximum surface temperature: 170 °C (338 °F)

Minimum operating temperature: -5°C (23°F)

Total heat dissipation: max. 5800 BTU/h (calculated)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 200-240 V, 50/60 Hz

Power consumption: 2000 W at 230 V / 50 Hz

Power in connector: Neutrik powerCON

DMX and RDM data in/out: Locking 3-pin & 5-pin XLR

Ethernet port in: RJ45

Approvals

cETLus Compliant

CE Compliant

Mechanical specification

Height: 826 mm (32.5")

Width: 483 mm (19.0")

Depth: 335 mm (13.2")

Weight: 38.4 kg (84.7 lbs)

Ingress protection rating: IP20

Rigging

Mounting positions: 0°, 32°, 90°

Universal operating position

Mounting points: 5 pairs of 1/4-turn locks

2x Omega adaptors with 1/4-turn quick locks

Safety cable attachment point

Pan and Tilt transport locks

Included items

User Manual

Omega Adaptor CL-regular 2 pcs

Power cord including powerCON In connector

Optional accessories

Lamp Osram Lok-it HTI 1700/PS: 14080049

BMFL Handles 2 pcs: 10980233

BMFL Side Handle: 10980396

Trigger Clamp Doughty: 17030386

Safety wire 50 kg: 99011957

Single Top Loader Case: 10120163-02

Dual Top Loader Case: 10120164-02

Foam Shell: 20020218-01

Legal

BMFL™ is a trademark of Robe lighting s.r.o.

BMFL™ WashBeam is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patent

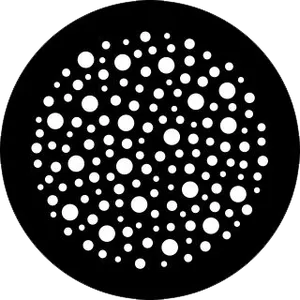

Gobos&Colours

Rotating Gobo Wheel

15020323

15020322

15020321

15020320

15020319

15020318

Colour Wheel 1

14070411

14070393

14070394

14070395

14070396

14070397

Colour Wheel 2

99014263

99014264

99014265

99014266

99014267

99014268

Animation Wheel

11020215
