BMFL™ Spot

The BMFL™ – Bright Multi-Functional Luminaire – much anticipated new lighting fixture from Robe, brings a real game changer in the world of moving lights.

Light source

1700 W OSRAM Lok-it! HTI 1700/PS

Light output

40.000 lm, 250.000 lx @ 5 m, 2.500 lx @ 50 m

Zoom range

5° - 55°

Effects

2x gobo wheel, dual graphic wheel, circular and linear prism

| ROBE lighting

The BMFL Spot™ has a custom light source designed for Robe and produces a staggering powerful 250 000 lux at 5 metres – no other product currently on the market can equal this output! Despite its power and comprehensive feature set, it weighs just 36 Kgs… and has a compact body profile.

The lamp produces light at a CRI of 92+, this combined with a refined optical system, 5–55 degree zoom, results in a crisp, high quality fat beam that is truly homogenised and without a hotspot. There are also two colour wheels which include filters that can be utilised to adjust colour temperature and improve the CRI of the white output in aging lamps. There are two rotating gobo wheels – each with six slot&lock gobo positions. There are also two Rotating Prisms. The Dual Graphic Wheels both focus within the same focal plane and the rotation and movement can be individually controlled and varied… to create ultra-cool, infinitely subtle special effects. The frost and dimming functions provide further effects.

Three grades of Frost are available and the dimmer is exceptionally smooth with no distortion, so the full beam width is visible right up to the point at which it disappears. The strobe effect is authentic with up to 10 flashes per second!

Aimed at long-throw applications, the newly patented Robe EMS™ (Electronic Motion Stabiliser) technology, enables the BMFL™ to absorb vibrations from audio outputs, truss movement, sprung or suspended floors, etc. The BMFL™ is a very powerful, feature packed luminaire that will provide a real signature light source for any project.

Technical Specification

Source

Lamp: Compact short-arc metal halide lamp

Base: PGJX28

Approved model: OSRAM Lok-it! HTI 1700/PS

Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode

CRI: 92+

Colour Temperature: 6.000 K

Control: Automatic and remote on/off

Ballast: Electronic

Optical system

Robe’s proprietary optical design

High - efficiency zoom optical system, ratio 11:1

Zoom range: 5°–55°

Output Lens diameter: 160 mm

Dichroic glass reflector for maximising the light efficiency

Fixture total lumen output:

  • 40.000 lm @ 1700 W

  • 36.500 lm @ 1500 W

  • 32.000 lm @ 1200 W (Quiet mode)

Illuminance: 250.000 lx @ 5 m

Dynamic Effects and Features

Cyan: 0 – 100 %

Magenta: 0 – 100 %

Yellow: 0 – 100 %

Variable CTO: 2.700 – 6.000 K

Colour wheel 1 with 6 fixed dichroic colours: deep red, deep blue, orange, green, magenta, congo blue + white

Colour wheel 2 with 6 replaceable "SLOT&LOCK" dichroic colours: pink, lavender, laser green, 9000 K CTB, minus half and minus green + white

Rotating Gobo wheel 1:6 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open

Rotating Gobo wheel 2:6 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open

Dual Graphic Wheel with two animation discs, individual control of rotation of each disc

Prism 1: 6 facet linear

Prism 2: 6 facet circular

Iris: Motorized, stepless, pulse effects up to 3 Hz

Frost: variable Light, Medium and Heavy Frosts

Motorized zoom and focus

Shutter: Separate dual blade system, Variable strobe effect up to 10 Hz, full black out

Dimmer: Optimized dual blade system for exceptional smooth dimming

Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

REAP™ - Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio

DMX Protocol modes: 2

Control channels: 41, 33

Pan/Tilt resolution: 16 bit

CMY & CTO: 8 bit

Colour wheel positioning: 8 or 16 bit

Rotating Gobo Wheel positioning: 8 or 16 bit

Gobo indexing & rotation: 8 or 16 bit

Dual Graphic Wheel: 8 bit

Iris: 8 or 16 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Dimmer: 8 or 16 bit

Movement

Pan movement: 540°

Tilt movement: 270°

Movement control: Standard and Speed

Controllable speed of Pan/Tilt movement

EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)

Automatic Pan/Tilt position correction

Rotating gobos

12x fully rotating, indexable glass gobos on two wheels

Outside diameter: 30.8 mm

Image diameter: 25.0 mm

Thickness: 1.1 mm

Max. thickness: 3.5 mm

High temperature borofloat or better glass

Effect wheel

Dual Graphic Wheel

Material: Aluminium

Diameter: 96 mm

Can be used alone or in combination with rotating gobos

Rotating in both directions at variable speed

Thermal specification

Maximum ambient temperature: 45 °C (113 °F)

Maximum surface temperature: 100 °C (212 °F)

Minimum operating temperature: -5°C (23°F)

Total heat dissipation: max. 5800 BTU/h (calculated)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 200–240 V, 50/60 Hz

Power consumption: 2000 W at 230 V / 50 Hz

Power in connector: Neutrik powerCON

DMX and RDM data in/out: Locking 3-pin & 5-pin XLR

Ethernet port in: RJ45

Approvals

CE Compliant

cETLus Compliant

Mechanical specification

Height: 813 mm (32") – head in vertical position

Width: 483 mm (19")

Depth: 335 mm (13.2")

Weight: 36 kg (79.4 lbs)

Ingress protection rating: IP20

Rigging

Mounting positions: 0°, 32° and 90°

Universal operating position

Mounting points: 5 pairs of 1/4-turn locking points

2x Omega adaptors with 1/4-turn quick locks

Safety cable attachment point

Pan and Tilt transport locks

Included items

User Manual

Omega Adaptor CL-regular 2 pcs

Power cord including powerCON In connector

Optional accessories

Lamp Osram Lok-it HTI 1700/PS: 14080049

BMFL Handles - 2 pcs in box: 10980233

BMFL Side Handle: 10980396

Doughty Trigger Clamp: 17030386

Frost 0.5° (exchange) assembled: 10980594

Frost 1° (exchange) assembled: 10980296

Frost 5° (exchange) assembled: 10980595

Frost 10° (exchange) assembled: 10980596

Frost 20° (exchange) assembled: 10980597

Frost 30° (exchange) assembled: 10980598

Safety wire 50 kg: 99011957

Single Top Loader Case: 10120163-02

Dual Top Loader Case: 10120164-02

Foam Shell: 20020218-01

Legal

BMFL™ is a trademark of Robe lighting s.r.o.

BMFL™ Spot is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patent

Gobos&Colours

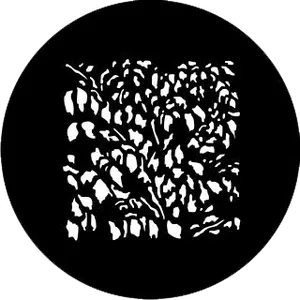

Rotating Gobo Wheel 1
