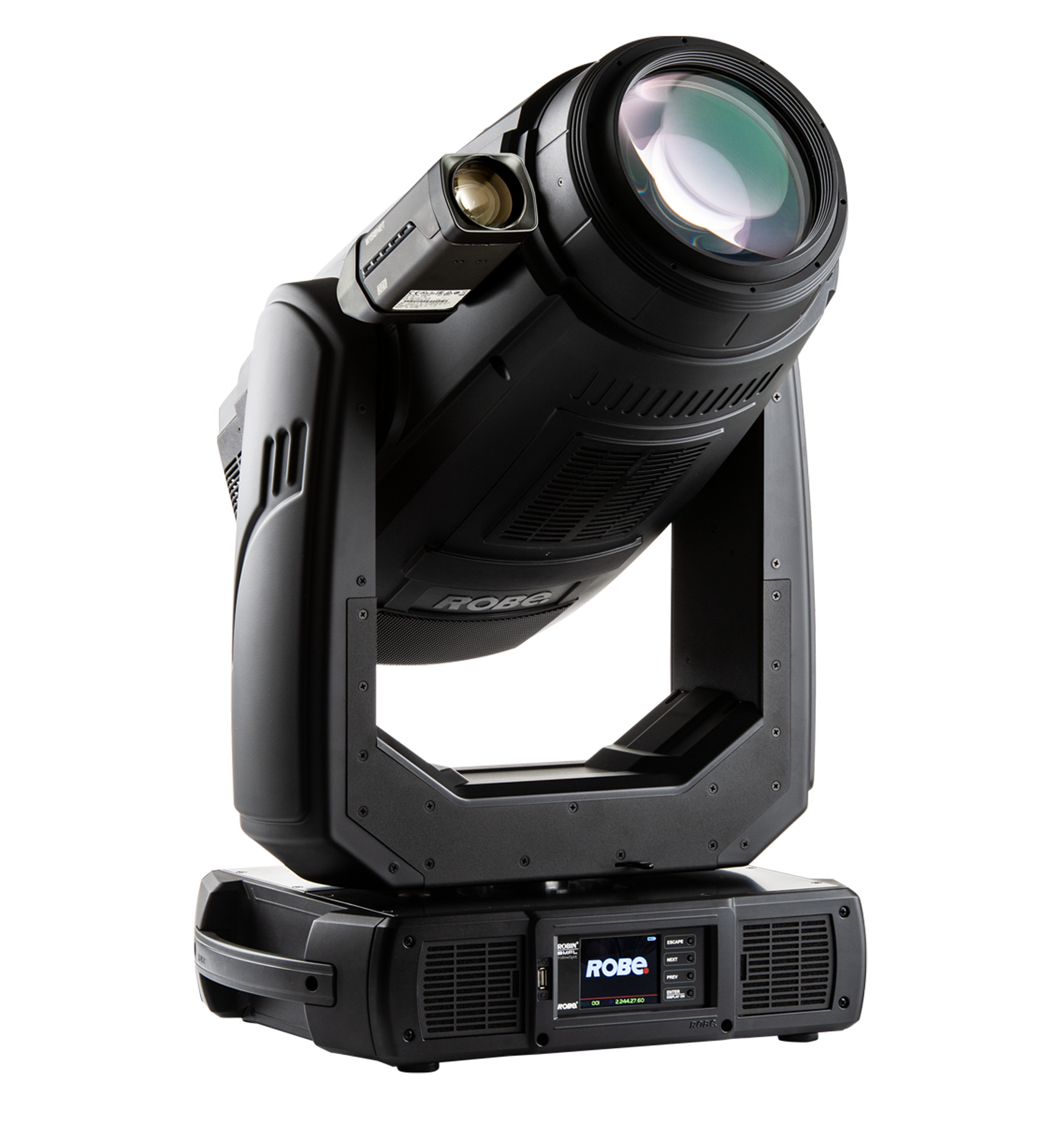

BMFL™ FollowSpot

Created specifically for follow-spot operation, this custom modified version of BMFL comes with specific features to provide both motorised movement and manual operation with follow-spot handles. Based on the powerful BMFL WashBeam it blasts beams of extra bright output and has an abundance of great features.

Light source

1700 W OSRAM Lok-it! HTI 1700/PS

Light output

39.770 lm, 251.000 lx @ 5 m, 2.500 lx @ 50 m

Zoom range

5° - 45°

Effects

CMY, 2 Colour wheels, Frost, Iris

| ROBE lighting

The BMFL FollowSpot takes advantage of its wide 160 mm front lens and a high CRI 1700W lamp. With a custom light source designed for Robe it produces an astounding 251.000 lux at 5 metres and has a wide zoom range of 5° to 45° with precise focusing. Manually or remotely controllable features include smooth color mixing and CTO flags, two color wheels, multiple variable frost filters, focus, zoom and quick pulsing iris. Follow-spot operation can be extended by using LightMaster handles - an optional accessory.

The BMFL FollowSpot is pre-wired for installation of the digital camera on the head and is connected with the new RoboSpot base station for off-stage follow-spot operation…

Technical Specification

Source

Light source type: Compact short-arc metal halide lamp

Base: PGJX28

Approved model: OSRAM Lok-it! HTI 1700/PS

Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode

CRI: CRI 92+

Colour temperature: 6.000K

Control: Automatic and remote on/off

Ballast: Electronic

Optical system

Robe’s proprietary optical design

High - efficiency zoom optical system, ratio 9:1

Zoom range: 5° - 45°

Output lens diameter: 160 mm

Dichroic glass reflector for maximising the light efficiency

High efficient component optics

Fixture total lumen output:

  • 39.770 lm @ 1700 W

  • 36.985 lm @ 1500 W

  • 32.610 lm @ 1200 W (Quiet mode)

Light output: 251.000 lx @ 5 m

Dynamic Effects and Features

Cyan: 0 - 100%

Magenta: 0 - 100%

Yellow: 0 - 100%

Variable CTO: 2.700 - 6.000 K

Colour Wheel 1: 6 fixed dichroic colours: deep red, deep blue, orange, green, magenta, congo blue + white

Colour Wheel 2: 6 replaceable "SLOT&LOCK" dichroic colours: pink, lavender, laser green, 9000 K CTB, minus half and minus green + white

Iris: Motorized, stepless, pulse effects up to 3 Hz

Frost: Variable Light, Medium plus repleceable Heavy (two another frosts included)

Motorized zoom and focus

Shutter: Separate dual blade system, variable strobe effect up to 10 Hz, full black out

Dimmer: Optimized dual blade system for exceptional smooth dimming

Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

REAP™ - Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio - on request

DMX Protocol modes: 2

Control channels: 33, 27

Pan/Tilt resolution: 16 bit

CMY & CTO: 8 bit

Iris: 8 or 16 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Dimmer: 8 or 16 bit

Movement

Pan movement: 540°

Tilt movement: 270°

Movement control: Standard and Speed

Controllable speed of Pan/Tilt movement

EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)

Automatic Pan/Tilt position correction

Thermal specification

Maximum ambient temperature: 45°C (113°F)

Maximum surface temperature: 170°C (338°F)

Minimum operating temperature: -5°C (23°F)

Total heat dissipation: max. 5800 BTU/h (calculated)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 200-240 V, 50/60 Hz

Power consumption: 2000 W at 230 V / 50 Hz

Power in connector: Neutrik powerCON

DMX and RDM data in/out: Locking 3-pin & 5-pin XLR

Ethernet port in: RJ45

Approvals

cETLus Compliant

CE Compliant

Mechanical specification

Height: 813 mm (32.0") - Head in vertical position

Width: 483 mm (19.0")

Depth: 335 mm (13.2")

Weight: 35 kg (77.2 lbs)

Ingress protection rating: IP20

Rigging

Mounting positions: 0°, 32°, 90°

Universal operating position

Mounting points: 5 pairs of 1/4-turn locks

2x Omega adaptors with 1/4-turn quick locks

Safety cable attachment point

Pan and Tilt transport locks

Included items

User Manual

Omega Adaptor CL-regular 2 pcs

Power cord including powerCON In connector

Frost filter set: 15050007

Optional accessories

Lamp Osram Lok-it HTI 1700/PS: 14080049

BMFL Handles 2 pcs: 10980233

BMFL Side Handle: 10980396

RoboSpot Camera: 100080311

Doughty Trigger Clamp: 17030386

Safety wire 50 kg: 99011957

Single Top Loader Case: 10120226

Dual Top Loader Case: 10120227

Legal

BMFL™ is a trademark of Robe lighting s.r.o.

BMFL™ FollowSpot is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patent
