iFORTE®
Even the mighty need the right protection! With unique game-changing patented technology, you can shift the power outside, rain or shine, dust, smoke and haze, with the iFORTE®!
Light source
iSE-TE™ 1.000W White LED TRANSFERABLE ENGINE
Light output
up to 50.000 lm, 113.000 lx @5m, Cpulse™ special flicker free management for HD and UHD cameras, ready for 8K and 16K
Zoom range
5° - 55°
Effects
2 rotating gobo wheels, 2 color wheels, animation wheel, frost, iris, 6-facet circular and linear prisms, framing shutters
The most powerful member of the Robe iSeries, the IP65-rated iFORTE® combines far-reaching output and feature-rich effects in a fully protected package, capable of handling all the challenges of being outdoors.
iFORTE® negates the traditional weight penalty associated with IP-rated fixtures being only 1.5 kg heavier than the indoor FORTE®. With its class-leading form factor, size and appearance, and all the features and identical performance of the indoor original, iFORTE® enables seamless integration with each other, even on the same truss if desired!
The ingenious ingress protection system has been specifically designed to allow standard maintenance and preparation procedures, such as TRANSFERABLE ENGINE exchange and gobo replacement without any additional tools, as gobo change or maintenance work can be done on-site.
The onboard RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provides constant monitoring to ensure peak performance.
iFORTE® runs an ingenious Self Pressure Test to check internal pressure. This self-test, taking no more than 3 minutes, provides an error message if covers were not replaced correctly or locking screws were incorrectly tightened (Patent pending).
Their lightweight magnesium alloy covers, with aluminium alloy substructure, provide a dust-free environment for the optics, eliminating the need for frequent cleaning, routine maintenance, and UV damage to plastic parts.
To maintain consistently high lumen output, even with the rigours of outdoor performance, water, dirt, dust, haze, and smoke are repelled from the front lens with our unique parCoat™ hydrophobic, oleophobic resistant coating. Furthermore, it allows easy removal of deposits without scratching or damage.
By including NFC (Near-Field Communication) technology, you can access setup, diagnostic and performance features, even when the fixture is not powered, directly from your mobile device using the Robe Com app.
Outdoor fixtures need to operate in extreme cold. iFORTE® contains an innovative POLAR+™ technology - a special standby mode with low powerconsumption, in which the fixture's sensors and communications channels continue to function. When activated, POLAR+™ automatically maintains an internal temperature level, giving instant operability down to minus 50 degrees centigrade!
iFORTE® is available with a choice of patented IP65-rated iSE-TE™ 1000W White LED TRANSFERABLE ENGINES; HP (High Performance) 6.700 K, 50.000 lm (Integrating sphere) CRI70; HCF (High Colour Fidelity) 6.000 K, 35.000 lm (Integrating sphere) CRI 96. The identical 11:1 zoom optical system, with a 5.5° to 55° zoom range, provides all the flexibility you require.
Removing the need for distracting pre-use pan and tilt calibration movement, our patented MAPS™ (Motionless Absolute Positioning System) allows the fixture to fully calibrate while remaining static. Very useful when fixtures are located within confined spaces.
Our cutting-edge CMY colour mixing system provides beautifully smooth mixing and transitions. Combined with two colour wheels, CRI 80 and 90 filters (HP Engine), and a variable CTO from 3.000 – 6.700 K give iFORTE® total colour finesse.
With the patented Plano4™ four individual plane framing shutters, two fully indexable rotating gobo wheels, an animation wheel, two independent 6-facet prisms and two MagFrost 1° and 5° frosts, you have all the creative tools you need.
Keeping up with technological advances, we have incorporated Epass™ for maintaining network connectivity, and for television users, Cpulse™ is included for flicker-free management of HD and UHD camera systems.
iFORTE® - Robe reliability in all weathers.
Technical Specification
Source
Light source type: iSE-TE™ 1.000W HP White LED Engine (Patented)
- HP - High Performance Engine for maximum light output and optimal colour characteristics
- LED Engine output: 82.000 lm
- Fixture total lumen output:
- 50.000 lm (integrating sphere)
- 40.000 lm (goniophotometer)
- Colour temperature output: 6.700 K
- CRI: 70, remotely selectable filters for CRI 80 and CRI 90
- Illuminance: 113.000 lx @ 5 m
Light source type: iSE-TE™ 1.000W HCF White LED Engine (Patented)
- HCF - High Colour Fidelity Engine for the best light quality and colour rendition
- LED Engine output: 55.000 lm
- Fixture total lumen output:
- 35.000 lm (integrating sphere)
- 28.000 lm (goniophotometer)
- Colour temperature output: 6.000K
- CRI: 96, TLCI: 97, TM-30-18 Rf: 92, TM-30-18 Rg: 99
- Illuminance: 78.000 lx @ 5 m
LED life expectancy: min. 50.000 hours
Typical lumen maintenance: L70/B50 @ 50.000 hours
Light source warranty: 4 years or 20.000 hours
Optical system
Robe’s proprietary optical design
High-efficiency 13-lens zoom optical system, ratio: 11:1
Zoom range: 5° - 55°
Output lens diameter: 180 mm
parCoat™ (particle resistant coating) unique hydrophobic and oleophobic coating helps prevent water, dirt, dust, haze and smoke from sticking to the output lens
Dynamic Effects and Features
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
Variable CTO: 3.000K - 6.700K
ChromaTint™ - Patented plus / minus green correction function
Colour Wheel 1: 5 fixed dichroic colours + white
Colour Wheel 2: 5 fixed dichroic colours + white
Framing shutters: Patented Plano4™ framing shutters module with 4 individually positionable blades plus rotation of the complete frame system + - 60°
Rotating gobo wheel 1: 6 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system
Rotating gobo wheel 2: 6 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system
Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
MLP™ - Patented Multi-Level Prisms allow multiple prisms to be "stacked" while retaining individual speed and direction control. With variable shape and size it creates unlimited dynamic, multi-level flower and beam effects:
Prism 1: Independent 6 facet linear prism rotating in both directions at variable speed
Prism 2: Independent 6 facet circular prism rotating in both directions at variable speed
Frosts: MagFrost™ - magnetic paddle fast change system providing exchangeable frosts containing as standard a very light 1° for instant softening of the projected gobo or framing shutters, and a medium 5° for even wash, both specifically selected for theatre and TV use
Hot-Spot: From flat field to 6:1 hot-spot (optional)
Iris: Motorized, stepless, pulse effects up to 3 Hz
Motorized zoom and focus
Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Extremely quiet operation suitable for all types of production in Theatre and TV
Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
POLAR+™ for power saving and instant operation in extremely cold weather conditions
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding, NFC app controller
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Wireless CRMX™ technology from Lumen Radio
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity
RAINS™ (Robe Automatic Ingress Neutralization System) manages humidity, temperature and pressure control using an active monitoring system to automatically remove any moisture detected within the fixture and provides constant monitoring to ensure peak performance
DMX Protocol modes: 2
Control channels: 54, 56
Pan & Tilt resolution: 16 bit
CMY & CTO: 8 bit
Colour wheel positioning: 16 bit
Framing shutters module movement & rotation: 8 bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 16 bit
Animation wheel: 8 bit
Animation wheel rotation: 8 bit
Iris: 16 bit
Frost: 8 bit
Zoom: 16 bit
Focus: 16 bit
Dimmer: 16 bit (internal 18 bit)
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan & Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan & Tilt position correction
MAPS™ - Motionless absolute positioning system for Pan & Tilt (Patented)
Rotating gobos
12x fully rotating, indexable glass gobos on two wheels
Outside diameter: 30.8 mm
Image diameter: 25.0 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Patented slot & lock system for easy replacement of gobos
Effect wheel
Single animation wheel
Material: Aluminium
Diameter: 112 mm
Can be used alone or in combination with rotating gobos
Rotating in both directions at variable speed
Framing shutters system
Patented Plano4™ framing shutters module
Shutters: 4 Blades, each with separate movement and +- 25° rotation control
Movement: Smooth with variable speed, ultra-fast for creating mid-air effects
Rotation: +- 60° of the complete framing system
Thermal specification
Maximum ambient temperature: 50 °C (122 °F)
Maximum surface temperature: 80 °C (176 °F)
Minimum operating temperature: -50 °C (-58 °F)
Total heat dissipation: max. 3200 BTU/h (calculated)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: max. 1250 W
Power connector in: IP65 Neutrik powerCON TRUE1
DMX and RDM data in/out: IP65 Locking 5-pin XLR connectors
Ethernet port in/out: IP65 RJ45, for Embedded Epass™ switch 10/100 Mbps
Approvals
CE Compliant
cETLus Compliant
Mechanical specification
Height: 837 mm (32.96") - head in vertical position
Width: 480 mm (18.89")
Depth: 335 mm (13.1") - head in vertical position
Weight: 42.5 kg (93.7 lbs)
Ingress protection rating: IP65
Rigging
Mounting positions: 0°, 32°, 90°
Universal operating position
Mounting points: 5 pairs of 1/4-turn locking points
2x Omega adaptors with 1/4-turn quick locks
Safety cable attachment point
Pan & Tilt transport locks
Included items
User Manual
Omega Adaptor CL-regular 2 pcs
Power cord including powerCON TRUE1 In connector:
US: 13052277-01
EU: 13052276-01
Optional accessories
iFORTE iSE-TE™ 1.000W HP White LED Engine: 14080081
iFORTE iSE-TE™ 1.000W HCF White LED Engine: 14080082
Frost 0.5° (exchange) assembled: 10980581
Frost 1° (exchange) assembled: 10980564
Frost 3.5° (exchange) assembled: 10981037
Frost 5° (exchange) assembled: 10980565
Frost 10° (exchange) assembled: 10980556
Frost 20° (exchange) assembled: 10980577
Frost 30° (exchange) assembled: 10980582
Hot-Spot lens in gobo holder: 10980557
Doughty Trigger Clamp: 17030386
Safety wire 50 kg: 99011957
Single Top Loader Case: 110120295-01
Dual Top Loader Case: 10120296-01
Foam Shell: 20020439-01
Legal
iFORTE® is Registered Trademark of Robe lighting s. r. o.
iFORTE® is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
Gobos&Colours

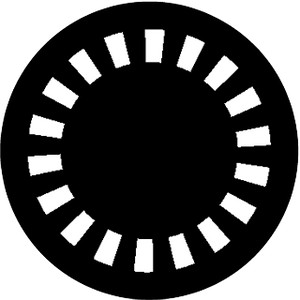

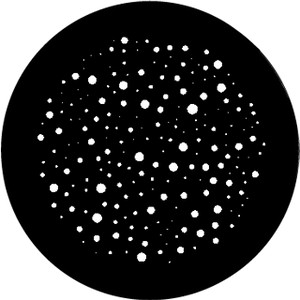

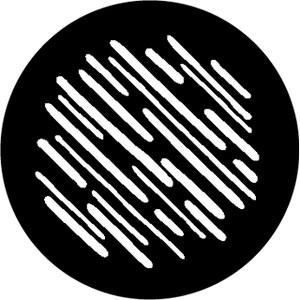

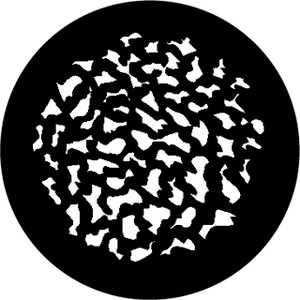

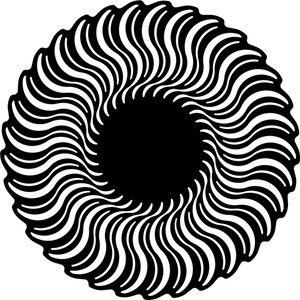

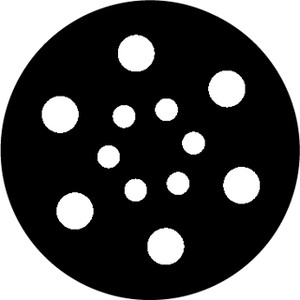

Rotating Gobo Wheel 1
15020396
15020397
15020398
15020399
15020400
15040025

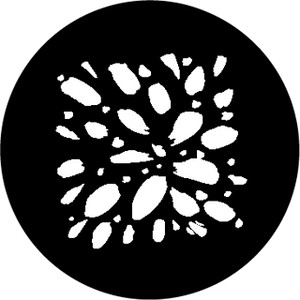

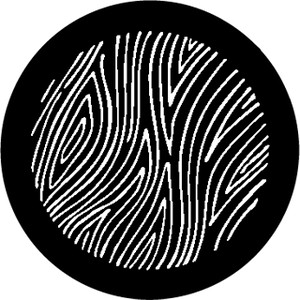

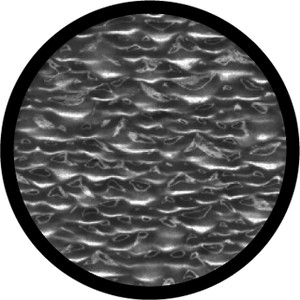

Rotating Gobo Wheel 2
15020401
15020402
15020403
15020404
15020405
15020406

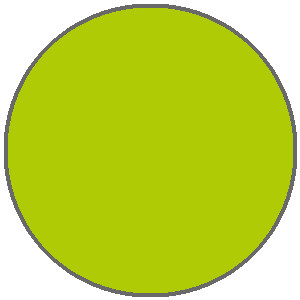

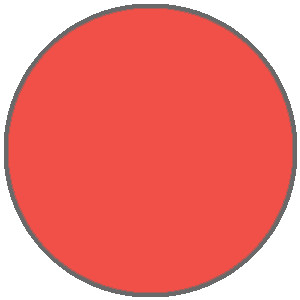

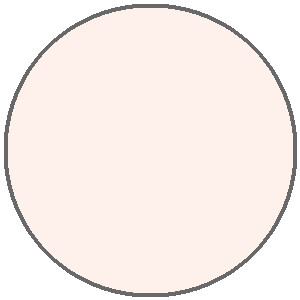

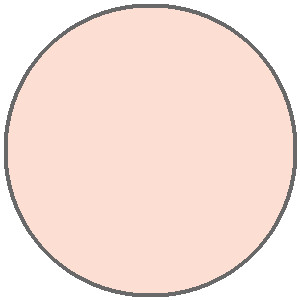

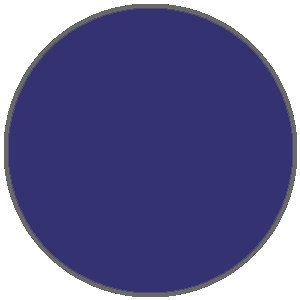

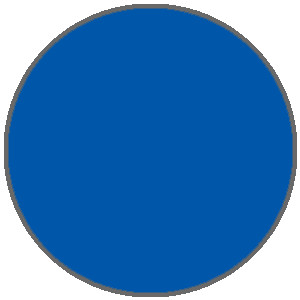

Colour Wheel 1
14070483
14070484
14070485
14070486
14070487

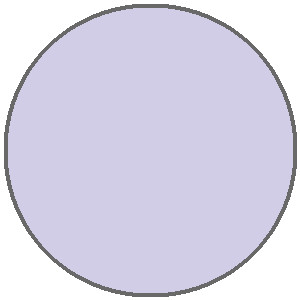

Colour Wheel 2
14070493-6
14070489
14070490
14070491
14070492
Animation Wheel
11020262
