PAINTE™

PAINTE™ delivers the perfect compact, quiet, quality profile solution for short to medium throw scenarios in theatrical, television, installation, live or corporate settings to create your masterpiece!

Light source

TE™ 310W White LED TRANSFERABLE ENGINE

Light output

14.900 lm, 24.000 lx @ 5m, Cpulse™ special flicker free management for HD and UHD cameras, ready for 8K and 16K

Zoom range

8° - 48°

Effects

Static and rotating gobo wheel, Full curtain framing shutters, Prism

| ROBE lighting

Whether broad brush strokes or adding the finest detail, PAINTE™ delivers the master’s touch. Colours are boundless via the advanced CMY colour mixing system. From its compact frame, PAINTE ™ punches way above its weight, with an impressive 14.900-lumen fixture output of sparkling, clear, white light.

Designed for noise-sensitive environments, PAINTE™ features the TE™ 310W HP White LED engine from our ground-breaking TRANSFERABLE ENGINE technology. The high-performance engine gives you the ability to easily maintain light quality and consistency across your inventory.

The motorised zoom gives a range of 8° - 48°, perfect for short to medium throw applications.

Precise beam control is via our highly advanced, patented, Plano4™ four individual plane shutter system. With 120-degree module rotation, each individual blade has a full curtain effect capability.

PAINTE™ is packed with Robe innovation including CPulse™ flicker-free management system for HD and UHD cameras; L3™ Low Light Linearity dimming software for imperceptible fades to black; AirLOC™ (Less Optical Cleaning) technology keeping the optical elements in pristine condition for far longer; EMS™ Electronic Motion Stabiliser technology for enhanced fixture stability.

The fast, feature-packed, small footprint PAINTE™ lets you brush in the finest detail or boldest statement with Robe quality.

Technical Specification

Source

Light source type: TE™ 310W HP White LED Engine (Patented):

  • HP - High Performance Engine for maximum light output and optimal colour characteristics
  • LED Engine output: 18.500 lm
  • Fixture total lumen output:
    • 14.900 lm (integrating sphere)
    • 12.000 lm (goniophotometer)
  • Colour temperature output: 6.700 K
  • CRI: 70, remotely selectable filter for CRI 90
  • Illuminance: 24.000 lx @ 5 m

Light source type: TE™ 310W HCF White LED Engine (Patented):

  • HCF - High Colour Fidelity Engine for the best light quality and colour reproduction
  • LED Engine output: 13.000 lm
  • Fixture total lumen output:
    • 9.800 lm (integrating sphere)
    • 7.800 lm (goniophotometer)
  • Colour temperature output: 6.000 K
  • CRI: 96, TLCI: 97, TM-30-18 Rf: 92, TM-30-18 Rg: 99

LED life expectancy: min. 50.000 hours

Typical lumen maintenance: L70/B50 @ 50.000 hours

Light source warranty: 4 years or 20.000 hours

Optical system

Robe’s proprietary optical design

High-efficiency 13-lens zoom optical system, ratio: 4.5:1

Zoom range: 8°- 48°

Output lens diameter: 110 mm

Dynamic Effects and Features

Cyan: 0 - 100%

Magenta: 0 - 100%

Yellow: 0 - 100%

+ - Green correction function

Virtual CTO

Colour Wheel: 9 dichroic filters + white

Rotating gobo wheel: 8 rotating, indexable and replaceable breakup and aerial gobos + open, patented slot & lock system

Static gobo wheel: 9 gobos + open

Full curtain framing shutters: Patented Plano4™ framing shutters module with 4 individually positionable blades plus rotation of the complete framing system +-60°

Prism: 8-facet prism rotating in both directions at variable speed

Iris: Motorized, stepless, pulse effects up to 3 Hz

MagFrost™ - magnetic paddle fast change system providing exchangeable frost containing as standard a medium 5° for even wash

Motorized zoom and focus

Electronic strobe effect with variable speed up to 20 Hz

Extremely quiet operation suitable for all types of production in Theatre and TV

L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K

AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.

Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding

Protocols:

USITT DMX-512, RDM

ArtNet, MA Net, MA Net2, sACN

REAP™ - Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio - on request

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity - on request

DMX Protocol modes: 1

Control channels: 43

Pan/Tilt resolution: 16 bit

CMY: 8 bit

Framing shutters module movement & rotation: 8 bit

Rotating gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16 bit

Static gobo wheel positioning: 8 or 16 bit

Prism indexing & rotation: 8 bit

Iris: 8 or 16 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Dimmer: 16 bit (internal 18 bit)

Movement

Pan movement: 540°

Tilt movement: 270°

Controllable speed of Pan/Tilt movement

EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)

Automatic Pan/Tilt position correction

Rotating gobos

Glass gobos: 8 rotating gobos + open

Outside diameter: 15.9 mm

Image diameter: 12.5 mm

Thickness: 1.1 mm

High temperature borofloat or better glass

Slot & lock system for easy replacement of gobos

Static gobos

Aluminium wheel with fixed gobos: 9 gobos + open position

Framing shutters system

Full curtain framing shutters: 4 Blades, each with separate movement and rotation control

Movement: Smooth with variable speed, ultrafast blade movements for creating mid-air effects

Rotation: +- 60° of the complete framing system

Thermal specification

Maximum ambient temperature: 45 °C (113 °F)

Maximum surface temperature: 80 °C (176 °F)

Minimum operating temperature: -5 °C (23 °F)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: max. 440 W

Power connector in: Neutrik powerCON TRUE1

DMX and RDM data in/out: Locking 5-pin XLR

Ethernet port in: RJ45

Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps - on request

Approvals

CE Compliant

cETLus Compliant

Mechanical specification

Height: 619 mm (24.4") - Head in vertical position

Width: 367 mm (14.4")

Depth: 219 mm (8.6") - Head in vertical position

Weight: 19.6 kg (43.2 lbs)

Ingress protection rating: IP20

Rigging

Mounting positions: Horizontally or vertically

Universal operating position

Mounting points: 2 pairs of 1/4-turn locking points

2x Omega adaptors with 1/4-turn quick locks

Pan and Tilt transport locks

Included items

User Manual

Omega Adaptor CL-regular 2 pcs

Power cord including powerCON TRUE1 In connector

Optional accessories

Frost 0.5° (exchange) assembled: 10980690

Frost 1° (exchange) assembled: 10980691

Frost 10° (exchange) assembled: 10980693

Frost 20° (exchange) assembled: 10980694

Frost 30° (exchange) assembled: 10980695

Doughty Trigger Clamp: 17030386

Safety wire 36 kg: 99011963

Single Top Loader Case: 10120287

Dual Top Loader Case: 10120288

Quad Top Loader Case: 10120289

Foam Shell: 20020444

Legal

PAINTE™ is a Trademark of Robe lighting s. r. o.

PAINTE™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents

Gobos&Colours

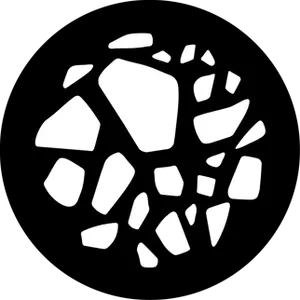

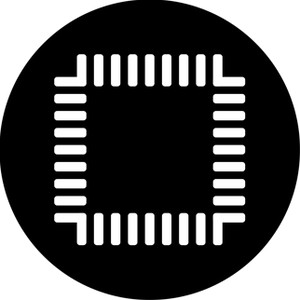

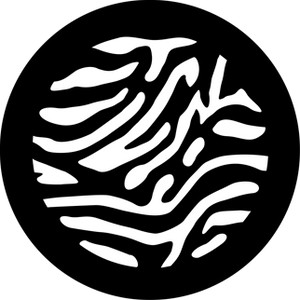

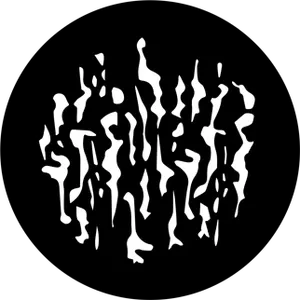

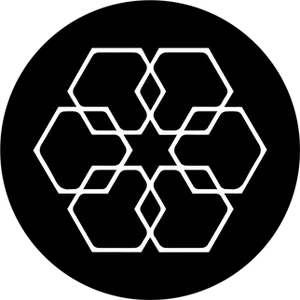

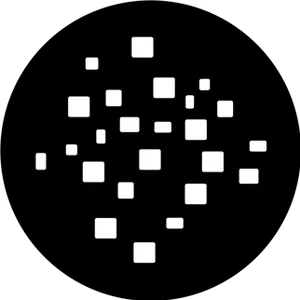

Rotating Gobo Wheel

15020441

15020442

15020443

15020444

15020445

15020446

15020447

15020448

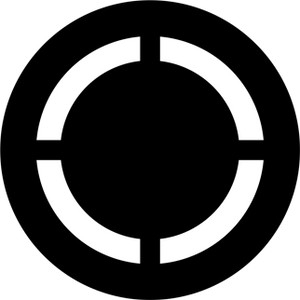

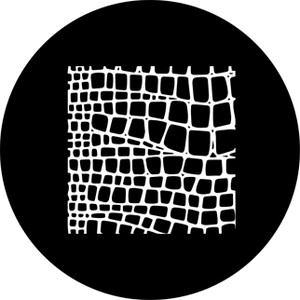

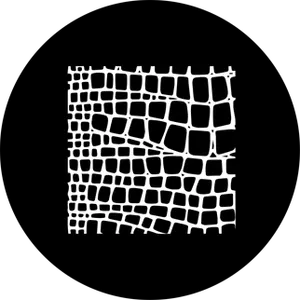

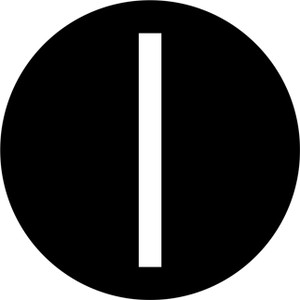

Fixed Gobo Wheel, Detail
