ROBIN® 600E Spot™
The ROBIN 600E Spot has a dramatically increased light output (from the 300 Series) and lower power requirements - thanks to an optimized optical path made from carefully selected components.
The super strong light-output can be maximised by using ROBE‘s unique HotSpot Control system together with the linear iris to create very powerful beam effects. An innovative patented cooling system ensures the best lamp operating temperatures and allows DMX controlled noise reduction. Users have complete control of all features of this fixture, making it ideal for environments where noise levels are critical and light output requirements are high.
Technical Specification
Source
Lamp: Compact high-presure metal halide lamp
Base: PGJX28
Approved model: Philips MSR Gold 575/2 MiniFastFit
Control: Automatic and remote on/off
Ballast: Electronic
Optical system
Dichroic glass reflector for maximising the light efficiency
Beam angle: Zoom range: 10° – 45° (2° – min. zoom with iris, 60° max. zoom with frost)
Electromechanical effects
Cyan: 0–100%
Magenta: 0–100%
Yellow:0–100%
CTO: 0–100%
Hot-spot control: Hot-or-not-spot
Colour wheel: 7 replaceable "SLOT&LOCK" dichroic filters + open, trapezoid shape
Static Gobo wheel: 9 replaceable "SLOT&LOCK" black and white gobos + open
Rotating Gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK" dichroic and glass gobos + open Iris: Motorized, stepless, up to 3 Hz
Prism: 3-facet 11° indexable prism rotating in both directions at different speeds
Frost effect: Separate, variable
Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing "ZAP"
Motorized zoom and focus
Pan: 540°
Tilt: 280°
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
Control channels: 23, 25, 32 3 DMX protocol modes
3-editable programs, each up to 100 steps
Stand-alone operation
QVGA Robe touch screen with battery backup gravitation sensor for auto screen positioning operation memory service log with RTC
Pan/Tilt resolution: 8 or 16 bit
Movement control: Tracking and vector
Colour wheel positioning: 8 or 16bit
Static gobo wheel positioning: 8 or 16bit
Rotating gobos: 8 or 16bit
Iris: 8 or 16bit
Frost: 8 bit
Focus: 8 or 16bit
Dimmer: 8 or 16bit
Ethernet port: Art-Net protocol, ready for ACN
Data in/out: Locking 3-pin & 5-pin XLR
Built-in analyser for easy fault finding
Optional wireless version available: CRMX™ technology from Lumen Radio
Static gobos
Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm
Glass gobo - high temperature borofloat
Rotating gobos
Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass
Thermal specification
Maximum ambient temperature: 45 °C (104 °F)
Maximum surface temperature: 80 °C (176 °F)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100–240 V, 50/60 Hz
Power consumption: 770 VA at 230 V/50 Hz
Mechanical specification
Height: 516 mm (20.3 ") – head in horizontal position
Width: 433 mm (17.0 ")
Depth: 470 mm (18.5 ")
Weight: 21.7 kg (47 lbs)
Fixation option: Pan/Tilt-lock mechanism
Rigging
Mounting points: 2 pairs of ¼-turn locks
2 x Omega bracket with ¼-turn quick locks
Safety chain/rope attachment point
Gobos&Colours

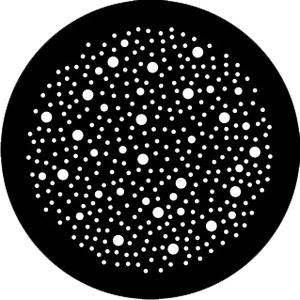

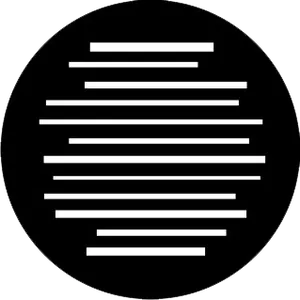

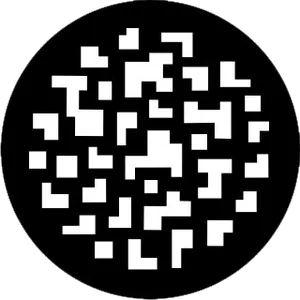

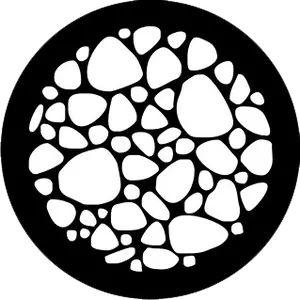

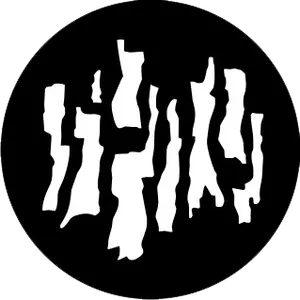

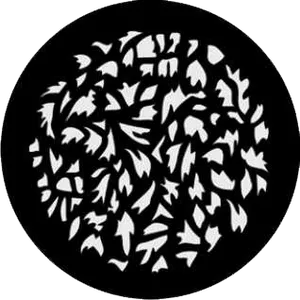

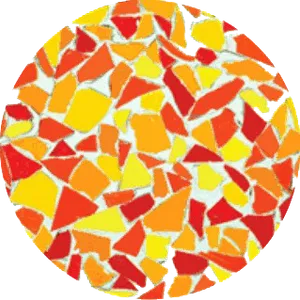

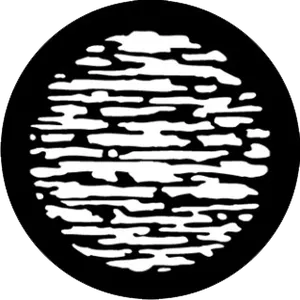

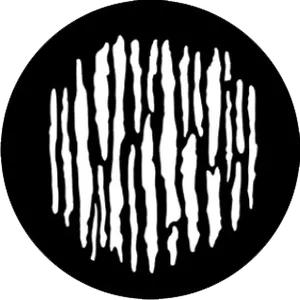

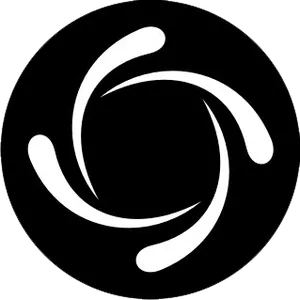

Rotating Gobo Wheel
15020216
15020217
15020218
15020219
15020220
15020221
15030029

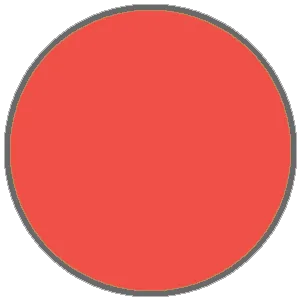

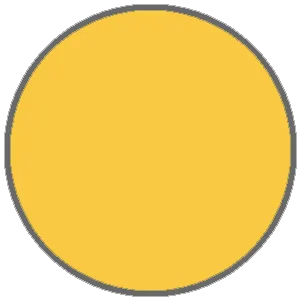

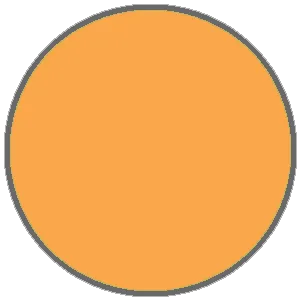

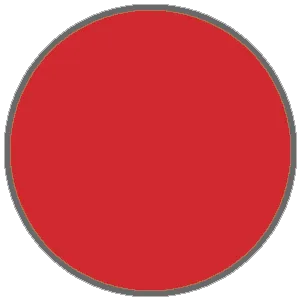

Colour Wheel
99011881
99011882
99011884
99011883
99011887
99011886
99011885

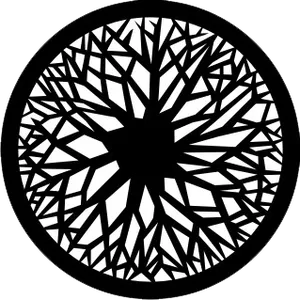

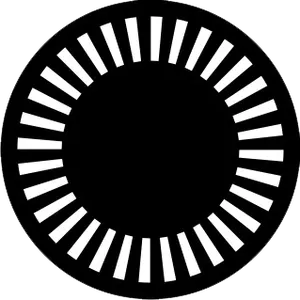

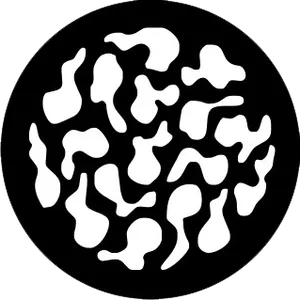

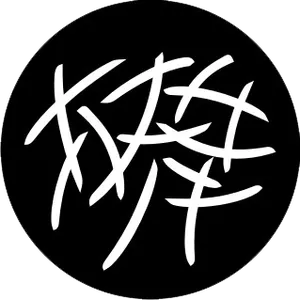

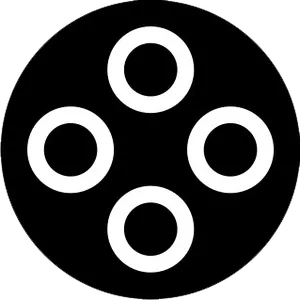

Static Gobo Wheel
15010734
15010720
15020222
15010735
15010728
15010730
15010736
15010737
15010738
