Source

Lamp: Compact high-pressure metal halide lamp

Base: GY9.5

Approved models: Osram HSD 250/80, Philips MSD 250/2, Sylvania BA 250/2 SE

Controls: Automatic and remote on/off

Ballast: Magnetic

Optical system

Standard objective: 15°

Optional objectives: 12° and 18°

Electrical specification and connections

Wiring options: EU model - 208/230/240 V, 50/60 Hz, US model - 100/120/208/230/240 V, 50/60 Hz

Power consumption: 420 VA at 230 V/50 Hz

Mechanical specification

Height: 478 mm (18.8 ") - head in horizontal position

Width: 417 mm (16.4 ")

Depth: 398 mm (15.7 ")

Weight: EU model - 20.5 kg (42.2 lbs), US model - 24 kg (52.9 lbs)

Thermal specification

Maximum ambient temperature (Ta): 45 °C (113 °F)

Maximum surface temperature: 80 °C (176 °F)

Static gobos

Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, thickness: 0.15 mm, stainless steel

Dichroic gobos - outside diameter: 26.8 mm, thickness: 1.1 mm, high temperature borofloat or better glass

Control and programming

Protocol: USITT DMX-512

Control channels: 8 or 10

DMX channels: 2 protocol modes

Built-in demo sequences

Display: 4-digit LED display

Pan/Tilt resolution: 8 or 16bit

Master/Slave operation

Stand-alone operation

3-editable programs, each up to 99 steps

Controllable speed of fans

Movement control: Tracking and vector

Built-in analyzer for easy fault finding

Data in/out: Locking 3-pin XLR

Electromechanical effects

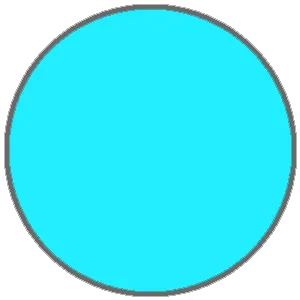

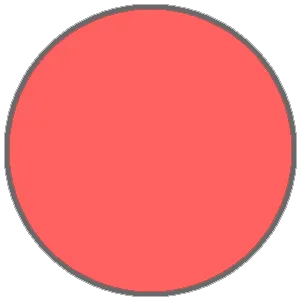

Colour wheel: 11 colours + white, rainbow effects in both directions

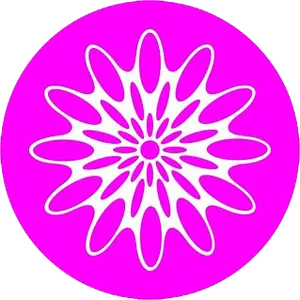

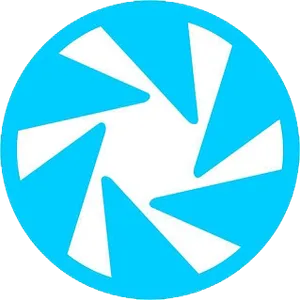

Static gobo wheel: 8 metal gobos, 2 replaceable dichroic gobos + open

Dimmer/Shutter: Full range dimming and variable strobe effect

Focus: Manual focus

Pan: 530°

Tilt: 280°

Rigging

2 pairs of ¼-turn locks; 2x Omega bracket with ¼-turn quick locks

1 pair of mounting holes for clamps with M10 threat

Optional accessories

Objective 12°

Lens-module 18°

Mounting plate
