T11 Profile™

Our unique T11 Profile™ delivers both superb performance and total generic flexibility!

Light source

TE™ 350W Multi-Spectral LED engine

Light output

12.000 lm, CRI 95+, + - Green Correction Function, Cpulse™ special flicker free management for HD and UHD cameras, ready for 8K and 16K

Zoom range

manual 5°- 50°

Effects

manual Framing shutters, Frost, Static gobo, optional drop-in module with motorised Iris, Static and Rotating gobo

| ROBE lighting

Building on the superb MSL™ (Multi-Spectral Light) colour concept, and innovative TE™ technology, our T11 Profile™ maintains the exceptional colour finesse of the phenomenally successful T series. With a fast, interchangeable front lens system, the T11 Profile™ offers absolute, cost-effective flexibility while delivering superb optical quality.

With the MSL-TE™ 350W LED Engine generating over 12.000 lm from the Profile fixture and all the advantages of cost, exchange or replacement, this LED technology provides identical colour characteristics, responses, and control of T series luminaires, giving absolute colour consistency across your Robe lighting installation.

High-definition optics deliver precise projection, beam control, and an extreme, wide-ranging 10:1 ratio 5-50° zoom range, from its single, integral lens tube, without additional lens tubes or optical variants.

A virtually controlled CCT range of 2.700K to 8.000K, calibrated whites, and tungsten emulation gives precise control, while we ensure skin tones are perfectly rendered due to T11’s high TLCI and TM30-18 ratings and exceptional CRI of 95.

Our innovative manual shuttering system is both accurate and easy to use. Integral to the fixture is a manual 1° MagFrost™ for instant softening, with an optional 5° frost available.

The unobtrusive T11 is specifically designed to operate in any noise-sensitive environment, with TV studio use enhanced via Cpulse™ flicker-free software and a dedicated plus and minus green channel control.

To increase gobo capacity from the single breakup gobo and holder included with the fixture, an optional drop-in module with two rotating and three static gobos using our standard slot and lock system is available. Furthermore, a motorised iris is included. Easy to install, this allows dual projection of both static and rotating gobos to produce dynamic effects.

Utilizing the rapid-change front lens system, the T11 Profile™ quickly transforms into a Fresnel or PC fixture for total luminaire flexibility without the cost of separate generic purchases.

T11 The three into one generic solution!

Technical Specification

Source

Light source type: MSL-TE™ 350W LED Engine

LED Engine output: 16.700 lm

LED life expectancy: min. 40.000 hours

Colour rendition:

    CRI: 95, CRI R9: 96, TM30-18 Rf: 92, TM30-18 Rg: 106, TLCI: 91

Typical lumen maintenance: L70/B50 @ 40.000 hours

Light source warranty: 4 years or 20.000 hours

Optical system

Robe’s proprietary optical design

Profile zoom lens system

High-efficiency manual zoom: High definition optics: ratio 10:1, zoom range 5°- 50°

Fixture total lumen output

  • 12.000 lm (integrating sphere)

  • 9.500 lm (goniophotometer)

Optional PC and Fresnel zoom lens systems

Main features

Colour mixing: CMY/RGB or RGBAL

White light: Variable CCT 2.700K - 8.000K

DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K

Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay)

+ - Green correction function

Adjustable CRI: from 80 to 95+

Manual framing shutters: framing shutters module with 4 individually positionable blades

Optional drop-in gobo module: motorised iris, 2 rotating and 3 static gobos

MagFrost™ - magnetic paddle fast change system providing exchangeable frost containing as standard a light 1° for instant softening of the framing shutters or projected gobo

Manual zoom and focus

Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects

High resolution electronic dimming: 0 - 100%

L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black

Dimmer profile selection: Linear, Square law

Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K

Extremely quiet operation suitable for all types of production in Theatre and TV

Control and programming

Setting & Addressing: two-row LCD display & 4 control buttons

Protocols:

  • USITT DMX-512, RDM

  • ArtNet, MA Net, MA Net2, sACN

REAP™ - Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio - on request

Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity - on request

DMX Protocol modes: 8

Control channels: 18, 9, 22, 6, 1, 24, 13, 28

Variable CCT: 8 bit

+ - Green correction: 8 bit

Colour mixing: 8 or 16 bit (internal 18 bit)

Gobo indexing & rotation: 8 or 16 bit

Iris: 8 or 16 bit

Dimmer: 8 or 16 bit (internal 18 bit)

Rotating gobos

2x rotating glass gobos: (with optional drop-in gobo module)

Outside diameter: 26.8 mm

Image diameter: 23.5 mm

Thickness: 1.1 mm

Max. thickness: 4.0 mm

High temperature borofloat or better glass

Slot & lock system for easy replacement of gobo

Static gobos

1x static glass gobo: (3x with optional drop-in gobo module)

Outside diameter: 26.8 mm

Image diameter: 23.5 mm

Thickness: 1.1 mm

Max. thickness: 4.0 mm

High temperature borofloat or better glass

Gobo holder R size: slot & lock system for easy replacement of gobos

Thermal specification

Maximum ambient temperature: 45 °C (113 °F)

Maximum surface temperature: 90 °C (194 °F)

Minimum operating temperature: -5 °C (23 °F)

Total heat dissipation: max. 1125 BTU/h (calculated)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: Max. 420 W

Power connector in/out: Neutrik powerCON TRUE1 in/out

DMX and RDM data in/out: Locking 5-pin XLR

Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps - on request

Approvals

CE Compliant

cETLus Compliant

Mechanical specification

Height: 493 mm (19.4")

Width: 385 mm (15.15")

Depth: 653 mm (25.7")

Weight:

  • 15.7 kg (34.6 lbs)

  • 16.9 kg (37.3 lbs) with optional drop-in gobo module

Ingress protection rating: IP20

Rigging

Mounting horizontally or vertically via mounting yoke

Mounting points: M12 bolt

Safety cable attachment point

Included items

User Manual

Gel frame adaptor

Gobo Holder R size with gobo: 10980655

Optional accessories

Doughty Trigger Clamp

Wireless DMX external module: 10980127

Safety wire 36 kg: 99011963

T11 Fresnel lens module: 10980644

T11 PC lens module: 10980645

Pole operated yoke: 10980667

Robin T11 MFS handles: 10080338

Drop-in manual Iris: 10980677

Frost 0.5° (exchange) assembled: 10980583

Frost 3.5° (exchange) assembled: 10980668 Frost 5° (exchange) assembled: 10980573

Frost 10° (exchange) assembled: 10980497

Frost 20° (exchange) assembled: 10980574

Frost 30° (exchange) assembled: 10980584

Drop-in gobo and iris module: 10980649

Hot-spot lens: 10980666

Gel frame: 10980372

Barndoor module: 10980349

Top hat

Mains Cable powerCON TRUE1 In/Schuko, 2m, Indoor: 13052405

Mains Cable powerCON TRUE1 In/US, 2m, Indoor: 13052406

Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Indoor: 13052439

Mains Cable powerCON TRUE1 In/CEE 16A, 2m, Indoor: 13052445

Mains Cable powerCON TRUE1 In/Open ended, 2m, Indoor: 13052407

Daisy Chain powerCON TRUE1 In/Out, US, 2m, Indoor: 13052440

Daisy Chain powerCON TRUE1 In/Out, EU, 5m, Indoor: 13052444

Single Top Loader Case: 10120279

Single Top Loader Trolley case: 10120281 Dual Top Loader Case: 10120282

Foam Shell: 20020425

Legal

T11 Profile™ is a Trademark of Robe lighting s. r. o.

T11 Profile™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents

Gobos&Colours

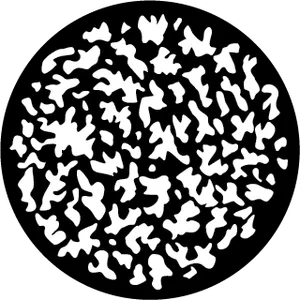

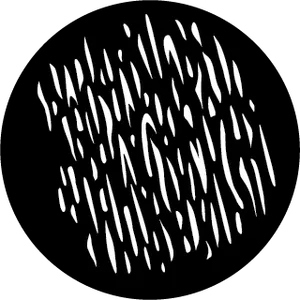

Rotating Gobo Wheel

15020449

15020430

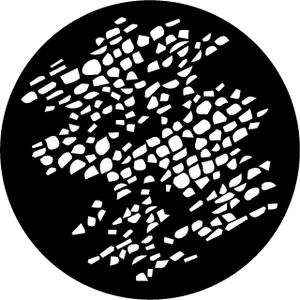

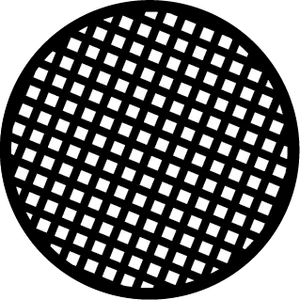

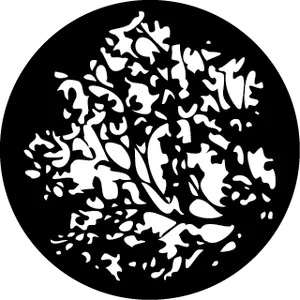

Fixed Gobo Wheel

15020427

15020428

15020429

Fixed Gobo Wheel 1

15020426
