T2 Profile™
T2. Taking Multispectral perfection even further! While simultaneously maintaining the absolute colour finesse of Robe’s phenomenally successful T1 series, featuring the MSL™ (Multi-Spectral) LED engine, our T2 Profile™ provides an enhanced output of more than 22.000 lumens, measured at the front lens, via its 850W MSL™ source, to throw their beautiful light even further than before. With a zoom range of 5–55°, T2 Profile™ is ideally suited to its longer-throw role in theatre, television, and touring.
Light source
MSL™ 850 W Multi-Spectral LED engine
Light output
up to 22.000 lm, CRI 95+, + - Green Correction Function, Cpulse™ special flicker free management for HD and UHD cameras
Zoom range
5° - 55°
Effects
Rotating gobo wheel, Static gobo wheel, Animation Wheel, Framing Shutters, 6-facet circular and linear prisms
T2 Profile™ is again full of theatrical subtlety. With CMY colour control, DataSwatch™ filters containing a selection of pre-programmed colours via our renowned RCC™ (Robe Colour Calibration) algorithm and a wide-ranging 2.700K to 8.000K CCT control, all variations of colour are possible. With absolutely no difference in colour produced by T1 and T2 platforms, you can use them together with confidence to provide consistent colour across your lighting rig, perfect for even the most demanding designers.
The precise needs of theatrical dimming are catered for with our super-smooth L3™ dimming system producing imperceptible fades to black. The high CRI of 95+ assures natural rendition of all skin tones. Specifically, for television work, we have included a plus and minus green channel and the Cpulse™ flicker-free management system for all vision systems including HD and UHD cameras, all controllable directly from your console. All this combined with our acclaimed four plane shuttering system, two rotating gobo wheels, an animation wheel, two rotating prisms, changeable 1° and 5° variable frosts with full zoom range coverage, gives you total control over your designs.
Designed to operate in noise-sensitive environments such as television studios, theatres, and houses of worship, T2 utilises our innovative AirLOC™ system. Meaning "Less Optical Cleaning," this technology not only aids noise reduction but also dramatically reduces the level of airborne particles drawn over the optics, keeping them in pristine condition for far longer.
Technical Specification
Source
Light source type: MSL™ 850 W Multi-Spectral LED engine (Patented)
LED life expectancy: min. 40.000 hours
Colour rendition:
CRI: 95, CRI R9: 91, TM30-18 Rf: 93, TM30-18 Rg: 103, TLCI: 94
Typical lumen maintenance: L70/B50 @ 40.000 hours
Light source warranty: 3 years or 20.000 hours
Optical system
Robe’s proprietary optical design
High-efficiency zoom optical system, ratio 11:1
Zoom range: 5° - 55°, covers favoured field angles of most Theatre and TV lights
Fixture total lumen output:
22.000 lm (integrating sphere)
17.600 lm (goniophotometer)
Output lens diameter: 180 mm
Dynamic Effects and Features
Factory calibrated whites and colours via the new RCC™ (Robe Colour Calibration) system, automatic or on-call self-re-calibration of the LED engine without the use of any external tool (Patent pending)
Colour mixing: CMY/RGB or RGBAL
White light: Variable CCT 2.700K - 8.000K
DataSwatch™ filters: pre-programmed 237 colours and tones including most used whites 2.700K, 3.200K, 4.200K, 5.600K and 8.000K
Tungsten lamp effect: 750W, 1.000W, 1.200W, 2.000W, 2.500W lamp emulation for whites from 2.700K to 4200K (red shift and thermal delay)
+ - Green correction function
Adjustable CRI from 80 to 95+
MCE™ - Split and multicoloured effects created directly from the LED engine (Patented)
Framing shutters: Patented Plano4™ framing shutters module with 4 individually positionable blades plus rotation of the complete frame system + - 60°
Rotating gobo wheel: 6 rotating, indexable and replaceable breakup and aerial gobos + open, all gobos specially selected for theatrical and TV productions, patented slot & lock system
Static gobo wheel: 8 static, replaceable breakup gobos + open, all gobos specially selected for theatrical and TV productions, patented slot & lock system
MLP™ - Patented Multi-Level Prisms allow multiple prisms to be “stacked” while retaining individual speed and direction control. With variable shape and size it creates unlimited dynamic, multi-level flower and beam effects:
Prism 1: Independent 6 facet linear prism rotating in both directions at variable speed
Prism 2: Independent 6 facet circular prism rotating in both directions at variable speed
Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed
Iris: Motorized, stepless, pulse effects up to 3 Hz
Frosts: MagFrost™ - magnetic paddle fast change system providing exchangeable frosts containing as standard a very light 1° for instant softening of the projected gobo or framing shutters, and a medium 5° for even wash, both specifically selected for theatre and TV use
Motorized zoom and focus
Electronic strobe effect with variable speed up to 20 Hz, pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
L3™ - (Low Light Linearity) Imperceptible 18 bit dimming for ultra smooth fade to black
Extremely quiet operation suitable for all types of production in Theatre and TV
Cpulse™ special flicker-free management for HD and UHD cameras, ready for 8K and 16K
AirLOC™ (Less Optical Cleaning) technology greatly reduces the level of airborne particles drawn over the optical elements. This increases the overall performance, light quality and time between routine cleaning and maintenance.
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, built-in analyser for easy fault finding, NFC app controller
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
REAP™ - Robe Ethernet Access Portal
Epass™: Ethernet pass through switch which sustains Ethernet integrity, when the fixture has no power, to automatically maintain network connectivity
Wireless CRMX™ technology from Lumen Radio - on request
DMX Protocol modes: 3
Control channels: 52, 36, 56
Pan & Tilt resolution: 16 bit
Colour mixing: 8 or 16 bit (internal 18 bit)
Variable CCT: 8 bit
Adjustable CRI: 8 bit
+ - Green correction: 8 bit
Framing shutters module movement & rotation: 8 bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 8 or 16 bit
Animation wheel: 8 bit
Prism indexing & rotation: 8 bit
Iris: 8 or 16 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Dimmer: 8 or 16 bit (internal 18 bit)
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Automatic Pan & Tilt position correction
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
MAPS™ - Motionless absolute positioning system for Pan & Tilt (Patented) - on request
Static gobos
8x static glass gobos
Outside diameter: 30.8 mm
Image diameter: 25 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Patented slot & lock system for easy replacement of gobos
Rotating gobos
6x rotating glass gobos
Outside diameter: 30.8 mm
Image diameter: 25 mm
Thickness: 1.1 mm
Max. thickness: 3.5 mm
High temperature borofloat or better glass
Patented slot & lock system for easy replacement of gobos
Effect wheel
Single animation wheel
Material: Aluminium
Diameter: 121 mm
Can be used alone or in combination with rotating gobos
Rotating in both directions at variable speed
Framing shutters system
Patented Plano4™ framing shutters module
Shutters: 4 Blades, each with separate movement and +- 25° rotation control
Movement: smooth with variable speed
Smooth and very precise motion of framing shutters
Rotation: +- 60° of the complete framing system
Thermal specification
Maximum ambient temperature: 45°C (113°F)
Maximum surface temperature: 70°C (158°F)
Minimum operating temperature: -5°C (23°F)
Total heat dissipation: max. 3924 BTU/h (calculated)
Noise Levels
Sound pressure level:
23 dB(A) at 1 m (quiet mode)
29 dB(A) at 1 m (auto mode)
Sound power level:
31 dB(A) (quiet mode)
37 dB(A) (auto mode)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: max. 1150 W
Power connector in: Neutrik powerCON TRUE1
DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
Ethernet port in/out: RJ45 for Embedded Epass™ switch 10/100 Mbps
USB connector (series A) for lightmaster purposes
Approvals
CE Compliant
cETLus Compliant
Mechanical specification
Height: 802 mm (31.6") - head in vertical position
Width: 483 mm (19")
Depth: 335 mm (13.2") - head in vertical position
Weight: 36.9 kg (81.4 lbs)
Ingress protection rating: IP20
Rigging
Mounting positions: 0°, 32°, 90°
Universal operating position
Mounting points: 5 pairs of 1/4-turn locking points
2x Omega adaptors with 1/4-turn quick locks
Safety cable attachment point
Pan & Tilt transport locks
Included items
User Manual
Omega Adaptor CL-regular 2 pcs: 10980033
Power cord including powerCON TRUE1 In connector
Gel frame adaptor: 99016721
Optional accessories
7.5" Gel Frame: 10980561
Top hat: 10980591
Frost 0.5° (exchange) assembled: 10980581
Frost 1° (exchange) assembled: 10980564
Frost 3.5° (exchange) assembled: 10981037
Frost 5° (exchange) assembled: 10980565
Frost 10° (exchange) assembled: 10980556
Frost 20° (exchange) assembled: 10980577
Frost 30° (exchange) assembled: 10980582
Doughty Trigger Clamp: 17030386
Omega Adaptor Tall CL-regular 2 pcs in box: 10980501
Safety wire 50 kg: 99011957
Single Top Loader Case: 10120271
Dual Top Loader Case: 10120272
Foam Shell: 20020396
Legal
T2 Profile™ is a Trademark of Robe lighting s. r. o.
T2 Profile™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
Gobos&Colours

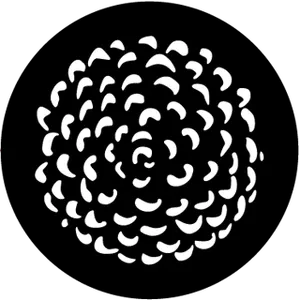

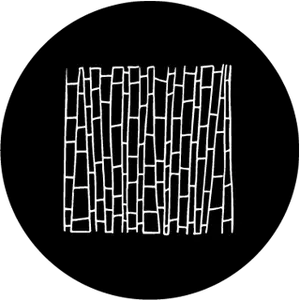

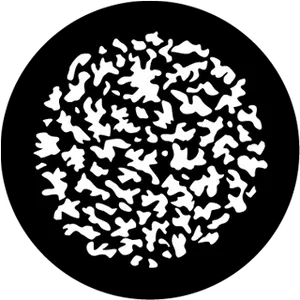

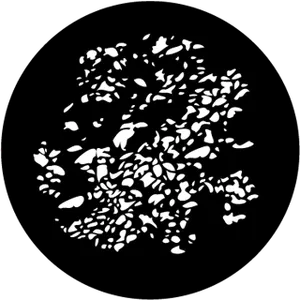

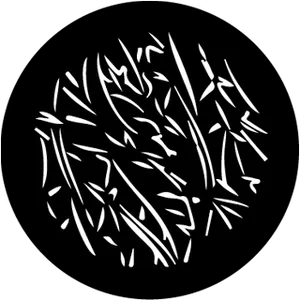

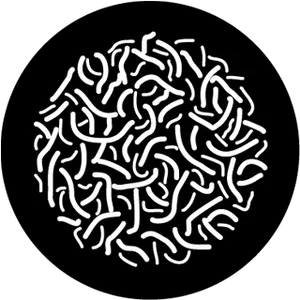

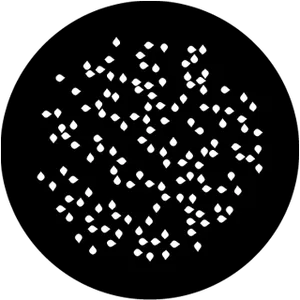

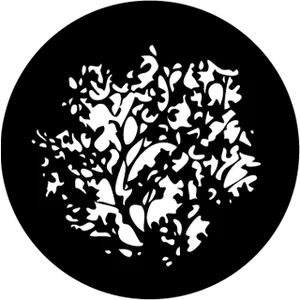

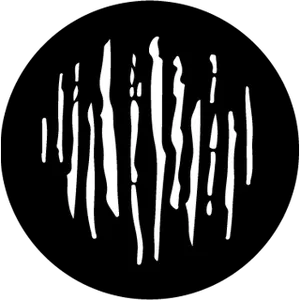

Rotating Gobo Wheel
15020407
15020408
15020409
15020410
15020411
15040025

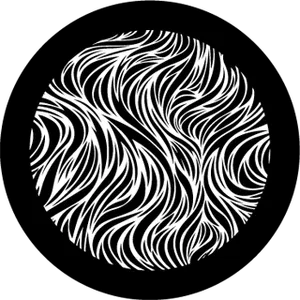

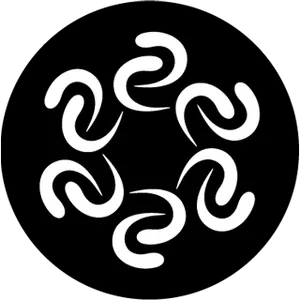

Static Gobo Wheel
15020412
15020413
15020306
15020414
15020308
15020415
15020416
15020417
Animation Wheel
11020248
