Source

Lamp: Compact high-pressure metal halide lamp

Base: GY9.5

Approved model: Philips MSD 250/2

Control: Automatic and remote on/off

Ballast: Magnetic

Optical system

Standard objective: 15°

Optional objectives: 12° and 18°

Electromechanical effects

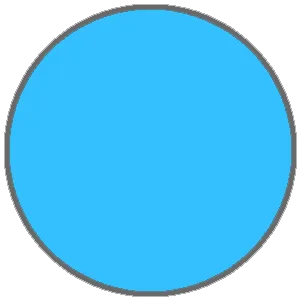

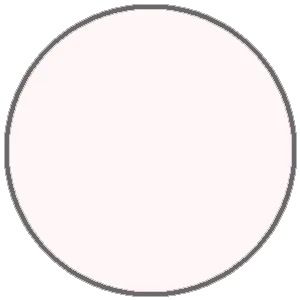

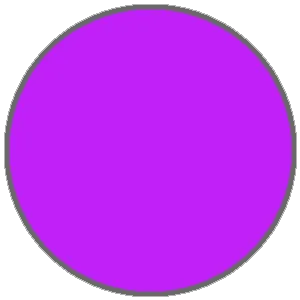

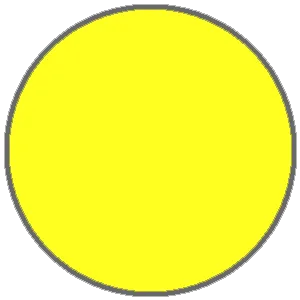

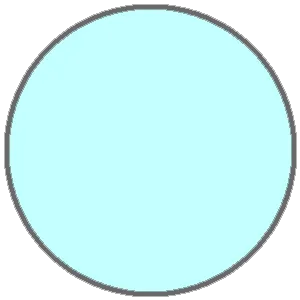

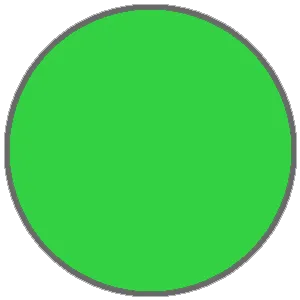

Colour wheel: 10 replaceable ″SLOT&LOCK″ dichroic filters + open

Gobo wheel: 7 rotating, indexable, replaceable ″SLOT&LOCK″ glass gobos + open

Interchangeable high-speed rotating 3-facet prism, optional frost filter supplied with the fixture

Dimmer/Shutter: Full range dimming and variable strobe effect

Focus: Motorized focus

Pan: 530°

Tilt: 280°

Control and programming

Protocol: USITT DMX-512, RDM support

Control channels: 14, 16, 18 or 20

DMX channels: 4 protocol modes

Built-in demo sequences

Display: 4-digit LED display

Pan/Tilt resolution: 16bit

Colour wheel: 8 or 16bit

Gobo indexing: 8 or 16bit

Focus: 8 or 16bit

Dimmer: 8 or 16bit

Master/Slave operation

Stand-alone operation

3-editable programs, each up to 99 steps

Movement control: Tracking and vector

Built-in analyzer for easy fault finding

Data in/out: Locking 3-pin XLR + 5-pin XLR

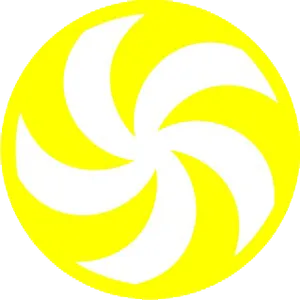

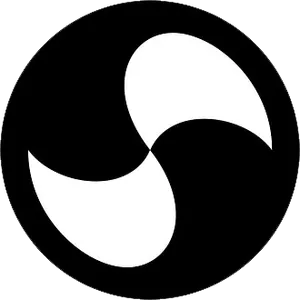

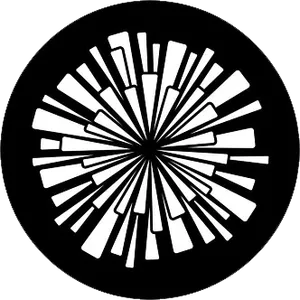

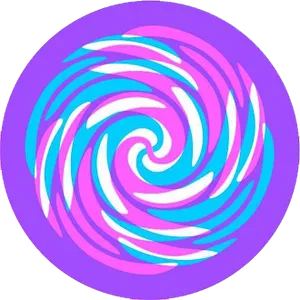

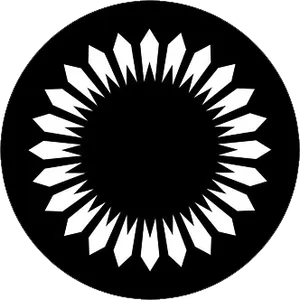

Rotating gobos

Dichroic glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, high temperature borofloat or better glass

Glass gobo - outside diameter: 26.8 mm, max. thickness: 4 mm, high temperature borofloat or better glass

Thermal specification

Maximum ambient temperature (Ta): 40 °C (104 °F)

Maximum surface temperature: 80 °C (176 °F)

Electrical specification and connections

Wiring options: EU model - 208/230/240 V, 50/60 Hz, US model - 100/120/208/230 V, 50/60 Hz

Power consumption: 410 VA at 230 V/50 Hz

Mechanical specification

Height: 483 mm (19.0″) - head in horizontal position

Width: 419 mm (16.5″)

Depth: 438 mm (17.3″)

Weight: EU model - 20.5 kg (45.2 lbs), US model - 23.5 kg (51.8 lbs)

Rigging

Mounting points: 4 pairs of ¼-turn locks

2x Omega bracket with ¼-turn quick locks

Optional accessories

Objective 12°

Lens-module 18°
