Source

Standard Lamp: MSR 1500 FastFit

Lamp on request: MSR GOLD 1200 FastFit

Base: PGJX50 Control: Automatic and remote on/off

Ballast: Electronic

Electromechanical effects

Cyan: 0–100%

Magenta: 0–100%

Yellow: 0–100%

CTO: 0–100%

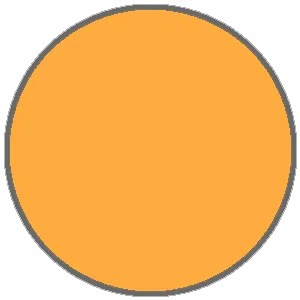

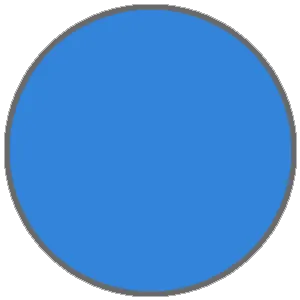

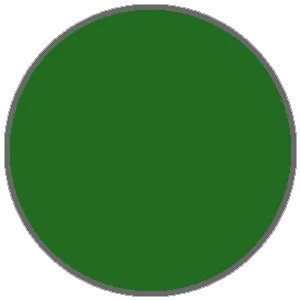

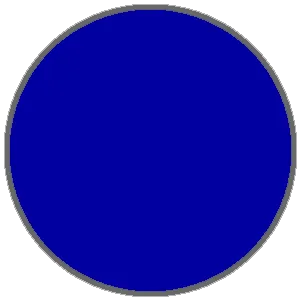

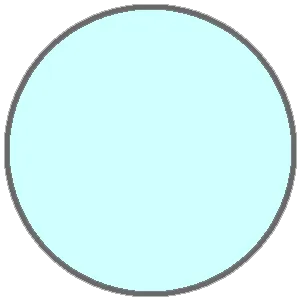

Colour wheel: 6 replaceable ″SLOT&LOCK″ colours + open

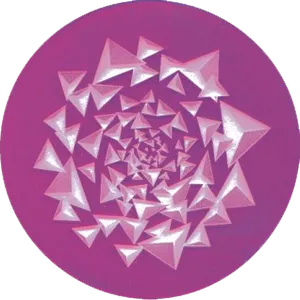

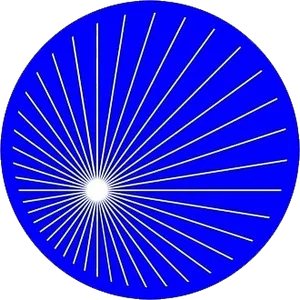

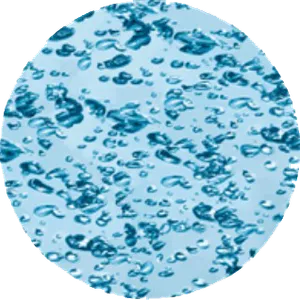

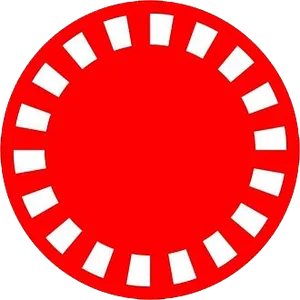

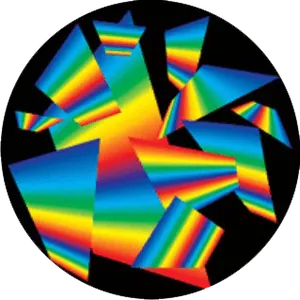

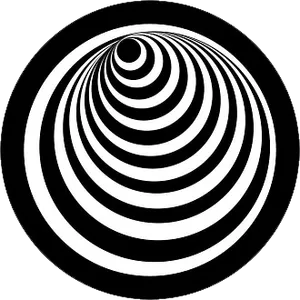

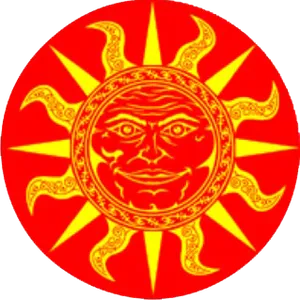

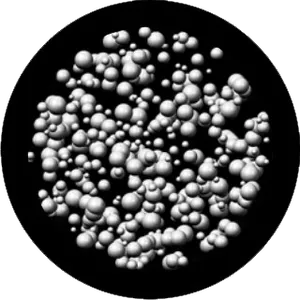

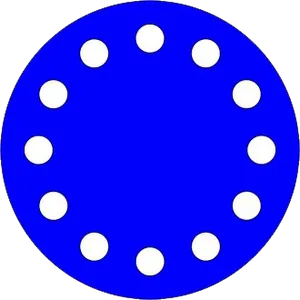

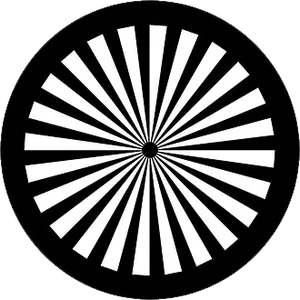

Gobo wheel 1: 6 rotating, indexable, replaceable ″SLOT&LOCK″ dichroic glass gobos + open

Gobo wheel 2: 6 rotating, indexable, replaceable ″SLOT&LOCK″ dichroic glass gobos + open

Iris: Motorized, stepless

Effect wheel: 4 rotating, indexable, replaceable ″SLOT&LOCK″ prisms and effects + open

Frost effect: Separate, variable

Dimmer/Shutter: Full range dimming and variable strobe effect

Focus: 2 m - infinity

Zoom: 10° – 30°

Pan: 530°

Tilt: 260°

Control and programming

Protocol: USITT DMX-512, RDM support

Control channels: 24 or 32 3 DMX control modes

Setting & Addressing: ROBE Navigation System (RNS)

Display: Blue/white LCD graphic

Pan/Tilt resolution: 16bit

Gobo indexing: 8 or 16bit

Prism indexing: 8 or 16bit

Dimmer: 8 or 16bit

Movement control: Tracking and vector

Ethernet port: Art-Net protocol, ready for ACN

Data in/out: Locking 3-pin & 5-pin XLR

Stand-alone operation

3-editable programs, each up to 99 steps

Rotating gobos

Dichroic glass gobos - outside diameter: 37.3 mm, image diameter: 31.5 mm, thickness: 1.1 mm, max. thickness: 5 mm, high temperature borofloat or better glass, coating: dichroic or enhanced aluminium

Glass gobo - outside diameter: 37.0 mm, thickness: 1.1 mm, max. thickness: 5 mm, high temperature borofloat or better glass

Optical system and effects

Outside diameter: 47+0/-0.3 mm

Thickness: Up to 5 mm in rotating slots (up to 8 mm in the center)

Thermal specification

Maximum ambient temperature : 40 °C (104 °F)

Maximum surface temperature: 135 °C (275 °F)

Electrical specification and connections

Wiring options: 208/230/250 V, 50/60 Hz

Power consumption: 1860 VA at 230 V/50 Hz

Mechanical specification

Height: 638 mm (25.1 ") – head in horizontal position

Width: 536 mm (21.1 ")

Depth: 678 mm (26.7 ")

Weight: 42.5 kg (93.7 lbs)

Rigging

Mounting points: 8 pairs of ¼-turn locks

Fastening system: ROBE‘s own 2x Omega clamps

Fixation option: Pan/Tilt-lock mechanism

Optional accessories

Remote control IR
