ColorSpot 700E AT™

The ColorSpot 700E AT marks a new series of Robe 700 W movinghead fixtures. Featuring the MSR GOLD 700 FastFit lamp, it is ideal for all professional applications and installations. It also offers a full CMY and CTO colour mixing systems, a colour wheel with 7 replaceable ″SLOT&LOCK″ dichroic filters; a static gobo wheel with 9 replaceable ″SLOT&LOCK″ gobos and a rotating gobo wheel with 7 replaceable ″SLOT&LOCK″ gobos; a replaceable animation wheel and a rotating 3-facet prism. The zoom range is 15° - 51° and there’s also dimmer, shutter, strobe effects.

| ROBE lighting

Technical Specification

Source

Lamp: Compact high-presure metal halide lamp

Base: PGJX50

Approved model: Philips MSR Gold 700 FastFit

Control: Automatic and remote on/off

Ballast: Electronic

Optical system

Dichroic glass reflector for maximising the light efficiency

Beam angle: 15° - 51°

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 100-240 V, 50/60 Hz

Power consumption: 930 VA at 230 V/50 Hz

Mechanical specification

Height: 597 mm (23.5 ") - head in horizontal position

Width: 514 mm (20.2 ")

Depth: 499 mm (19.7 ")

Weight: 32 kg (70.6 lbs)

Fixation option: Pan/Tilt-lock mechanism

Thermal specification

Maximum ambient temperature: 40 °C (104 °F)

Maximum surface temperature: 120 °C (248 °F)

Static gobos

Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm

Rotating gobos

Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness: 4.0 mm, high temperature borofloat or better glass

Control and programming

Setting & Addressing: ROBE Navigation System (RNS)

Protocol: USITT DMX-512, RDM support

Control channels: 26, 28, 31, 34 or 36 5 DMX protocol modes

3-editable programs, each up to 99 steps

Stand-alone operation

Display: Blue/white LCD graphic

Pan/Tilt resolution: 16bit

Movement control: Tracking and vector

Colour wheel positioning: 8 or 16bit

Static gobo wheel positioning: 8 or 16bit

Rotating gobos: 8 or 16bit

Iris: 8 or 16bit

Frost: 8 or 16bit

Zoom: 8 or 16bit

Dimmer: 8 or 16bit

Ethernet port: Art-Net protocol, ready for ACN

Data in/out: Locking 3-pin & 5-pin XLR

Built-in analyser for easy fault finding

Electromechanical effects

Cyan: 0-100%

Magenta: 0-100%

Yellow:0-100%

CTO: 0-100%

Colour wheel: 7 replaceable ″SLOT&LOCK″ dichroic filters + open

Static Gobo wheel: 9 replaceable ″SLOT&LOCK″ gobos + open

Rotating Gobo wheel: 7 rotating, indexable, replaceable ″SLOT&LOCK″ glass gobos + open

Animation wheel: Replaceable, variable rotation angle,continuous rotation in both directions at different speeds

Iris: Motorized, stepless

Prism: 3-facet indexable prism rotating in both directions at different speeds

Frost effect: Separate, variable

Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing “ZAP”

Motorized zoom and focus

Pan: 540°

Tilt: 280°

Rigging

Mounting points: 4 pairs of ¼-turn locks

2 x Omega bracket with ¼-turn quick locks

Safety chain/rope attachment point

Optional accessories

Remote Control IR

Animation Wheels

Gobos&Colours

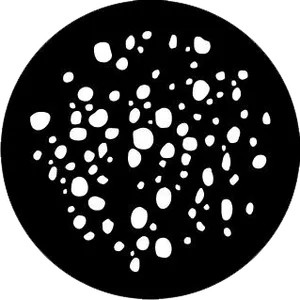

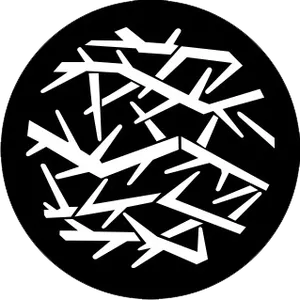

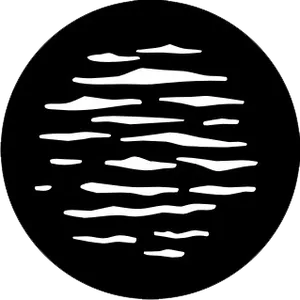

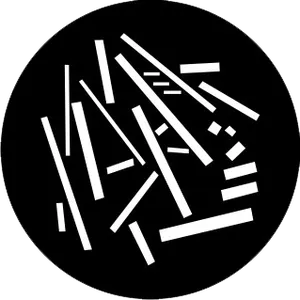

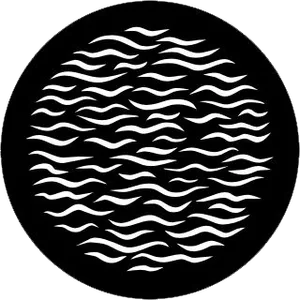

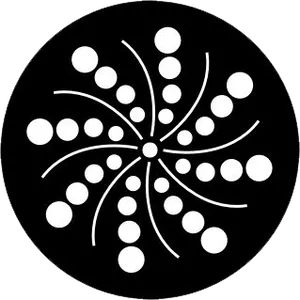

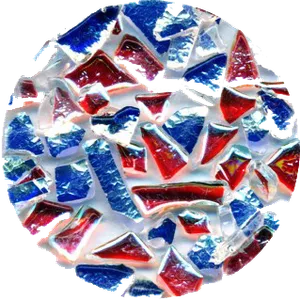

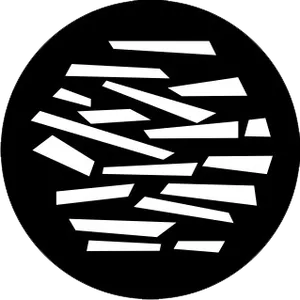

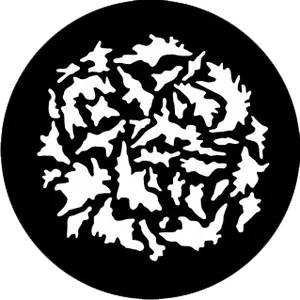

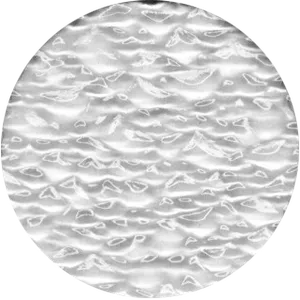

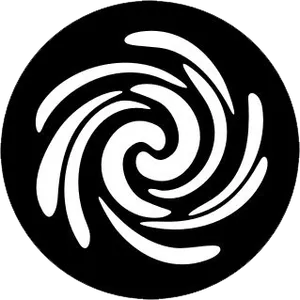

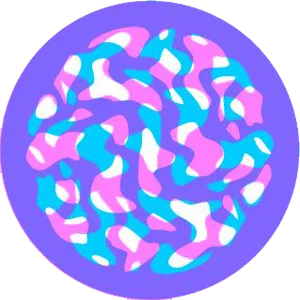

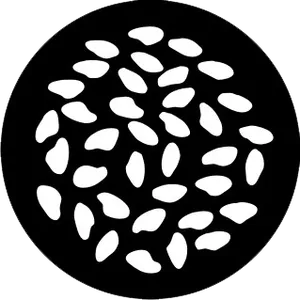

Rotating Gobo Wheel

15020178

15020179

15020180

15030027

15020181

15040023

15030026

Colour Wheel

99011885

99011886

99011887

99011883

99011884

99011882

99011881

Static Gobo Wheel

15010718

15010719

15010720

15010722

15010723

15010724

15010725

15010726
