ColorWash 1200E AT™
The ColorWash 1200E AT is a powerful moving head wash light that comes complete with a CMY colour mixing system; variable CTO; 2 colour wheels - each with 6 easily replaceable slots for colours and effects; a combined dimmer/shutter and many more features. The ColorWash 1200E AT zoom has a range of 10° - 87° depending on the lens type used.
The electronic ballast enables features like flicker-free operation, extended lamp life and power-saving mode. The large LCD display - highly successful on Robe‘s ColorSpot 1200 AT profile fixture, makes the operation of the ColorWash 1200E AT quick and easy. An Ethernet connection offers additional connectability. The ColorWash 1200E AT is an ideal tool for large theatres, live and television shows, and for all types of installations from multi-purpose venues to large clubs.
Technical Specification
Source
Lamp: 1200 W short arc discharge
Base: GY22
Approved model: Philips MSR 1200 SA
Control: Automatic and remote on/off
Ballast: Electronic
Electrical specification and connections
Wiring options: 100/120/208/230/250 V, 50/60 Hz
Power consumption: 1480 VA at 230 V/50 Hz
Mechanical specification
Height: 621 mm (24.5 ") - head in horizontal position
Width: 536 mm (21.1 ")
Depth: 620 mm (24.4 ")
Weight: 41 kg (90.4 lbs)
Thermal specification
Maximum ambient temperature: 40 °C (104 °F)
Maximum surface temperature: 135 °C (275 °F)
Control and programming
Protocol: USITT DMX-512, RDM support
Control channels: 17, 21, 23, 24, 30
DMX channels: 5 protocol modes
Built-in demo sequences
Display: Blue/white LCD graphic
Pan/Tilt resolution: 16bit
Color wheel 1 positioning: 8 or 16bit
Color wheel 2 positioning: 8 or 16bit
Zoom: 8 or 16bit
Dimmer: 8 or 16bit
Controllable speed of fans
Movement control: Tracking or vector
Built-in analyzer for easy fault finding
Ethernet port: Art-Net protocol, ready for ACN
Data in/out: Locking 3-pin XLR & 5-pin XLR
Stand-alone operation
3-editable programs, each up to 99 steps
Electromechanical effects
Cyan: 0-100%
Magenta: 0-100%
Yellow: 0-100%
CTO: 0-100%
Colour wheel 1: 6 replaceable ″SLOT&LOCK″ colours + open
Colour wheel 2: 6 replaceable ″SLOT&LOCK″ colours + open
Dimmer/Shutter: Full range dimming and variable strobe effect
Zoom: 10° - 87° depending on the lens type used
Pan: 530°
Tilt: 280°
Rigging
Mounting points: 8 pairs of ¼-turn locks
Fastening system: ROBE‘s own 2x Omega clamps
Fixation option: Pan/Tilt-lock mechanism
Optional accessories
Remote control IR
Module of lens D200 PC
Top Hats
Gobos&Colours

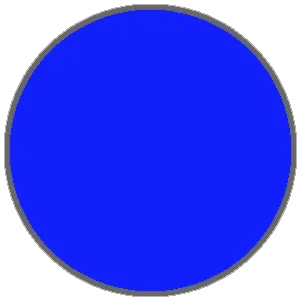

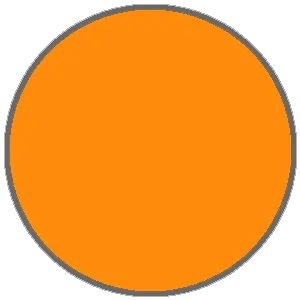

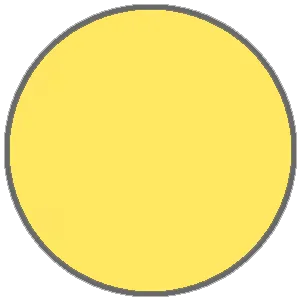

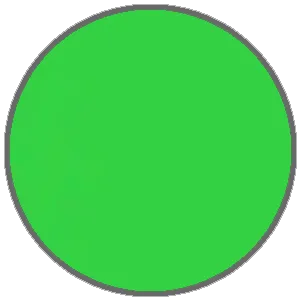

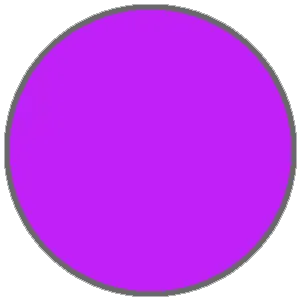

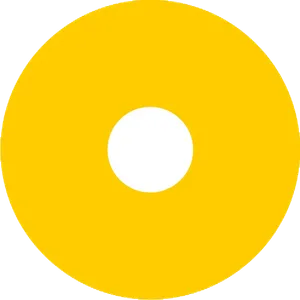

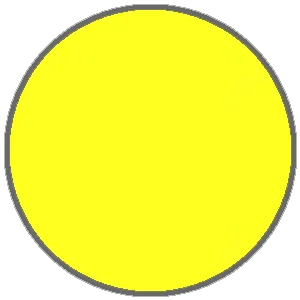

Colour Wheel 1
14070121
14070119
14070118
14070120
14070123
14070122

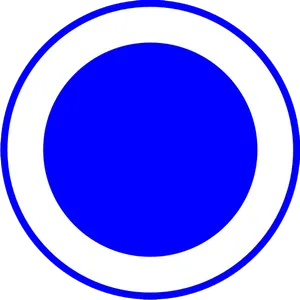

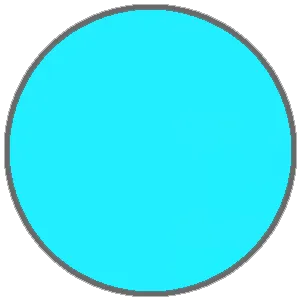

Colour Wheel 2
14070121
14070174
14070175
14070176
14070177
14070179
14070178
14070182
14070181
14070183
14070180
