Viva™ CMY
Powerfully smooth, Robe’s VIVA CMY combines brightness of exceptionally clear zero-fringing white beam together with continuous color transitions of CMY mixing.
Light source
350 W White LED engine
Light output
30.060 lx @ 5 m / 14.990 lm
Zoom range
9° - 40°
Effects
rotating and static gobo wheel, 3-facet rotating prism
Elegant and lightweight, packed with smart effects that are easy to use. The fixture is very powerful yet consumes little energy.
The 350W white LED light engine gives an extra punchy beam with even flat field and an incredible 20 000 hours of operation – in fact, no relamping will be needed for the entire life of the fixture!
Smooth color transition and fixed vivid and radiant colours can be applied from CMY mixing system and colour wheel, and rotating or static gobos added for projections or mid-air effects. The smooth zoom can go out to 40 degrees at its widest and be softened it up with variable frost to create a gentle wash-like output or dynamic background projections.
The minimum 9° zoom produces a piercing beam that can be trimmed with ultra-fast stepless iris for really punchy output, and VIVA has extremely fast pan/tilt movement using Robe’s proprietary EMS™ (Electronic Motion Stabiliser) technology.
That and much more is possible with VIVA – entertaining and contemporary!
Technical Specification
Source
Light source type: 350W White LED engine
LED life expectancy: min. 20.000 hours
Colour temperature: 6.500 K
Typical lumen maintenance: L70/B50 @ 40.000 hours
Light source warranty: 3 years or 20.000 hours
Optical system
Robe’s proprietary optical design
High - efficiency zoom optical system, ratio 4,5:1
Zoom range: 9°- 40°
Even flat field, 2:1 hotspot
Output lens diameter: 120 mm
Fixture total lumen output:
14.990 lm (integrating sphere)
12.040 lm (goniophotometer)
Light output: 30.060 lx @ 5 m
Dynamic Effects and Features
Cyan: 0 - 100%
Magenta: 0 - 100%
Yellow: 0 - 100%
Colour Wheel: 6 fixed dichroic colours + white
Virtual Color Wheel: with 66 preset swatches
Rotating gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open
Static gobo wheel: 9 aluminium gobos + open
Prism: 3-facet circular rotating prism
Iris: Motorized, stepless, pulse effects up to 3 Hz
Frost: Variable, replaceable 20° frost filter; optional 1°, 10° and 30°
Motorized zoom and focus
Shutter: Electronic with variable speed strobe (max. 20 flashes per second)
Pre-programmed random strobe & pulse effects
High resolution electronic dimming: 0 - 100%
Control and programming
Setting & Addressing: ROBE Navigation System 2 (RNS2)
Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
Wireless CRMX™ technology from Lumen Radio - on request
DMX Protocol modes: 2
Control channels: 32, 26
Pan/Tilt resolution: 16 bit
CMY: 8 bit
Colour wheel positioning: 8 bit
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 8 or 16 bit
Static gobo wheel positioning: 8 or 16 bit
Iris: 8 or 16 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Dimmer: 8 or 16 bit (internal 18 bit)
Movement
Pan movement: 540°
Tilt movement: 270°
Movement control: Standard and Speed
Controllable speed of Pan/Tilt movement
EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)
Automatic Pan/Tilt position correction
Rotating gobos
7x glass gobos
Outside diameter: 26.8 mm
Image diameter: 22.0 mm
Thickness: 1.1 mm
Max. thickness: 4.0 mm
High temperature borofloat or better glass
"SLOT&LOCK" system for easy replacement of gobos
Static gobos
Aluminium wheel with 9 fixed gobos + open position
Image diameter: 22.5 mm
Thickness: 0.5 mm
Thermal specification
Maximum ambient temperature: 45°C (113°F)
Maximum surface temperature: 80°C (176°F)
Minimum operating temperature: -5°C (23°F)
Electrical specification and connections
Power supply: Electronic auto-ranging
Input voltage range: 100-240 V, 50/60 Hz
Power consumption: 500 W at 230 V / 50 Hz
Power in connector: Neutric powerCON TRUE1
DMX and RDM data in/out : Locking 3-pin & 5-pin XLR
Ethernet port in: RJ45
Approvals
CE Compliant
cETLus Compliant (pending)
Mechanical specification
Height: 664 mm (26.1")
Width: 382 mm (15")
Depth: 250 mm (9.8")
Weight: 19 kg (41.9 lbs)
Ingress protection rating: IP20
Rigging
Mounting positions: Horizontally or vertically
Universal operating position
Mounting points: 2 pairs of 1/4-turn locking points
2x Omega adaptors with 1/4 turn quick locks
Pan and Tilt transport locks
Included items
User Manual
Omega Adaptor CL-regular 2 pcs
Power cord including powerCON TRUE1 In connector
Optional accessories
Frost 1° (exchange) assembled: 10980308
Frost 10° (exchange) assembled: 10980309
Frost 30° (exchange) assembled: 10980310
Trigger Clamp Doughty: 17030386
Safety wire 36 kg: 99011963
Upgrade kit CRMX Universal 260: 99030100
Single Top Loader Case: 10120209
Dual Top Loader Case: 10120210
Quad Top Loader Case: 10120211
Foam Shell: 20020295
Legal
Viva™ is a trademark of Robe lighting s.r.o.
Viva™ CMY is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patent
Gobos&Colours

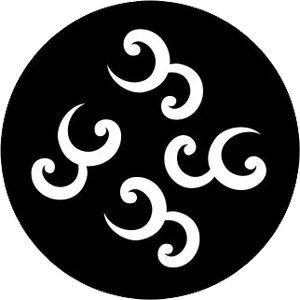

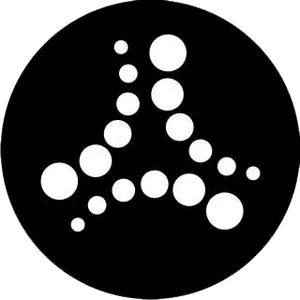

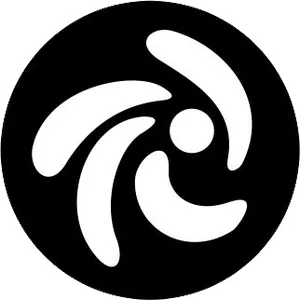

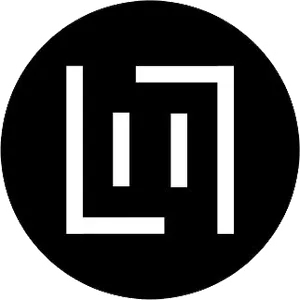

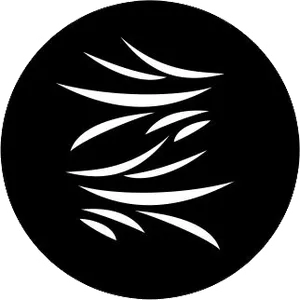

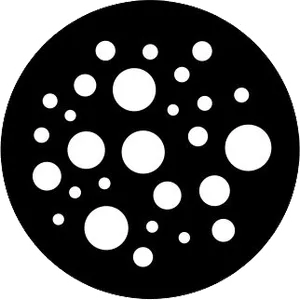

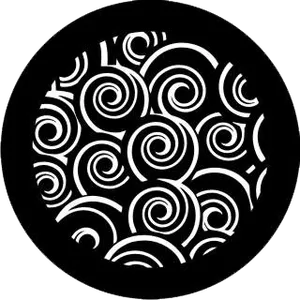

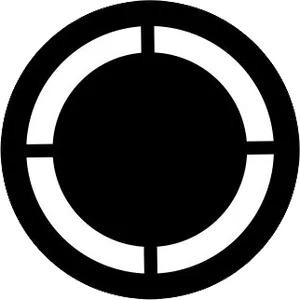

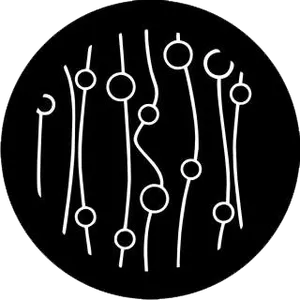

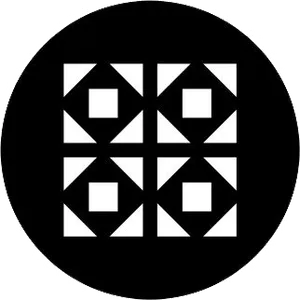

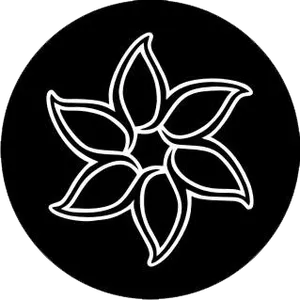

Rotating Gobo Wheel
15020333
15020332
15020331
15020330
15020329
15020328
15020327

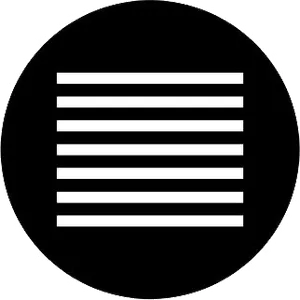

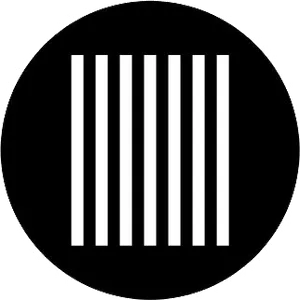

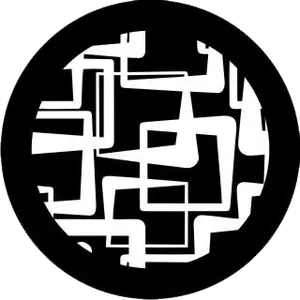

Fixed Gobo Wheel, Detail
99014836-1
99014836-2
99014836-3
99014836-4
99014836-5
99014836-6
99014836-7
99014836-8
99014836-9

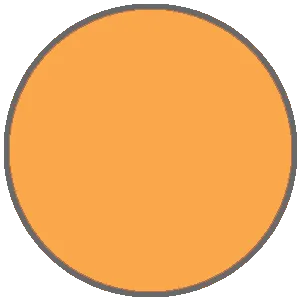

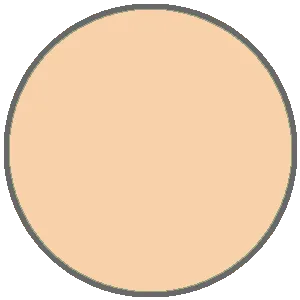

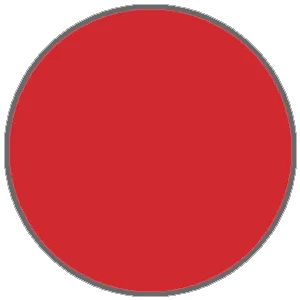

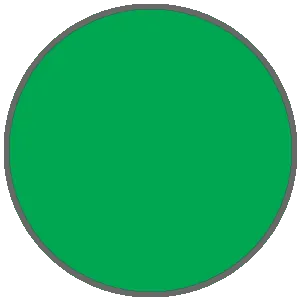

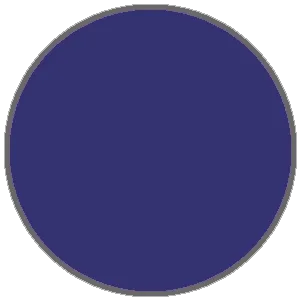

Colour Wheel 1
14070419
14070435
14070420
14070417
14070387
14070418
