BMFL™ Blade

Four fast shutter blades with smooth and precise movement in the new BMFL Blade lighting fixture. Individually angled and positioned within a frame - which itself can rotate through 90 degrees, providing a sharp or soft, precisely repeatable, frame for the projected image.

Light source

1700 W OSRAM Lok-it! HTI 1700/PS

Light output

40.000 lm, 250.000 lx @ 5 m, 2.500 lx @ 50 m

Zoom range

5° - 55°

Effects

rotating and static gobo wheel, circular and linear prism, framing shutters, animation wheel

| ROBE lighting

Producing a new series of fast-moving in-air effects through pre-programmed shape and movement sequences of the blades, gobo images can be trimmed or framed in a regular, triangular or trapezoid shape. Each pair of opposing blades can close to a complete blackout.Two gobo wheels – one rotating with six slot&lock gobo positions plus another with 8 static gobos can be combined with the Animation wheel to create numerous dynamic projected effects.

Add all this to the already acclaimed BMFL features including: exceptionally smooth linear dimming, Imperceptable high definition colour mixing, full width beam, Output in excess of 250,000 lux at 5 metres – and the Robe EMS™ (Electronic Motion Stabiliser) technology, enabling the BMFL™ to both move and stop faster and more precisely than any other fixture in its class - all this housed in a compact body profile weighing just 37,9 Kgs.

Technical Specification

Source

Lamp: Compact short-arc metal halide lamp

Base: PGJX28

Approved model: OSRAM Lok-it! HTI 1700/PS

Lifetime: 750 hours @ 1700 W / 1500 W / Quiet mode

CRI: 92+

Colour Temperature: 6.000 K

Control: Automatic and remote on/off

Ballast: Electronic

Optical system

Robe’s proprietary optical design

High - efficiency zoom optical system, ratio 11:1

Zoom range: 5° - 55°

Output Lens diameter: 160 mm

Dichroic glass reflector for maximising the light efficiency

High efficient component optics

Fixture total lumen output:

  • 40.000 lm @ 1700 W

  • 36.500 lm @ 1500 W

  • 32.000 lm @ 1200 W (Quiet mode)

Light output: 250.000 lx @ 5 m, 2.500 lx @ 50 m

Dynamic Effects and Features

Cyan: 0-100 %

Magenta: 0-100 %

Yellow: 0-100 %

Variable CTO: 2.700 - 6.000 K

Colour Wheel 1: 6 fixed dichroic colours: deep red, deep blue, orange, green, magenta, congo blue + white

Colour Wheel 2: 6 replaceable "SLOT&LOCK" dichroic colours: pink, lavender, laser green, 9000 K CTB, minus half and minus green + white

Framing shutters: 4 individually positionable blades plus rotation of the complete frame system +-45°

Rotating Gobo wheel: 6 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open

Static Gobo wheel: 8 static, replaceable "SLOT&LOCK" glass gobos + open

Animation wheel: Aluminium animation wheel, used alone or in combination with gobos, rotating in both directions at variable speed

Prism 1: 6 facet linear

Prism 2: 6 facet circular

Iris: Motorized, stepless, pulse effects up to 3 Hz

Frost: Variable Light, Medium and Heavy Frosts

Motorized zoom and focus

Shutter: Separate dual blade system, Variable strobe effect up to 10 Hz, full black out

Dimmer: Optimized dual blade system for exceptional smooth dimming

Control and programming

Setting & Addressing: ROBE Navigation System 2 (RNS2)

Display: QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC, stand-alone operation with 3 editable programs (each up to 100 steps), built-in analyser for easy fault finding

Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN

REAP™ - Robe Ethernet Access Portal

Wireless CRMX™ technology from Lumen Radio - on request

DMX Protocol modes: 2

Control channels: 49, 42

Pan/Tilt resolution: 16 bit

CMY & CTO: 8 bit

Colour wheel positioning: 8 or 16 bit

Framing shutters module movement & rotation: 8 bit

Rotating gobo wheel positioning: 8 bit

Gobo indexing & rotation: 8 or 16 bit

Static gobo wheel positioning: 8 bit

Animation wheel: 8 bit

Animation wheel rotation: 8 bit

Iris: 8 or 16 bit

Frost: 8 bit

Zoom: 8 or 16 bit

Focus: 8 or 16 bit

Dimmer: 8 or 16 bit

Movement

Pan movement: 540°

Tilt movement: 270°

Movement control: Standard and Speed

Controllable speed of Pan/Tilt movement

EMS™: Electronic Motion Stabilizer system for Pan & Tilt reducing beam deviation caused by truss movement or vibration (Patented)

Automatic Pan/Tilt position correction

Rotating gobos

6x rotating glass gobos

Outside diameter: 30.8 mm

Image diameter: 25.0 mm

Thickness: 1.1 mm

Max. thickness: 3.5 mm

High temperature borofloat or better glass

Static gobos

8x static glass gobos

Outside diameter: 30.8 mm

Image diameter: 25.0 mm

Max. thickness: 1.1 mm

High temperature borofloat or better glass

Effect wheel

Single animation wheel

Material: Aluminium

Diameter: 109 mm

Can be used alone or in combination with rotating gobos

Rotating in both directions, variable speed

Framing shutters system

Shutters: 4 Blades, each with separate movement and +- 25° rotation control

Movement: Smooth with variable speed, ultrafast blade movements for creating mid-air effects

Pre-programmed: Shape and blade sequences

Rotation: 90° of the complete framing system

Thermal specification

Maximum ambient temperature: 45 °C (113 °F)

Maximum surface temperature: 170 °C (338 °F)

Minimum operating temperature: -5°C (23°F)

Total heat dissipation: max. 5800 BTU/h (calculated)

Electrical specification and connections

Power supply: Electronic auto-ranging

Input voltage range: 200-240 V, 50/60 Hz

Power consumption: 2000 W at 230 V / 50 Hz

Power in connector: Neutrik powerCON

Data in/out: Locking 3-pin & 5-pin XLR

Ethernet port in: RJ45

Approvals

CE Compliant

cETLus Compliant

Mechanical specification

Height: 813 mm (32")

Width: 483 mm (19")

Depth: 335 mm (13.2")

Weight: 37.9 kg (83.6 lbs)

Ingress protection rating: IP20

Rigging

Mounting positions: 0°, 32°, 90°

Universal operating position

Mounting points: 5 pairs of 1/4-turn locking points

2x Omega adaptors with 1/4-turn quick locks

Safety cable attachment point

Pan and Tilt transport locks

Included items

User Manual

Omega Adaptor CL-regular 2 pcs

Power cord including powerCON In connector

Optional accessories

Lamp Osram Lok-it HTI 1700/PS: 14080049

BMFL Handles 2 pcs: 10980233

BMFL Side Handle: 10980396

Doughty Trigger Clamp: 17030386

Frost 0.5° (exchange) assembled: 10980594

Frost 1° (exchange) assembled: 10980296

Frost 5° (exchange) assembled: 10980595

Frost 10° (exchange) assembled: 10980596

Frost 20° (exchange) assembled: 10980597

Frost 30° (exchange) assembled: 10980598

Safety wire 50 kg: 99011957

Single Top Loader Case: 10120163-02

Dual Top Loader Case: 10120164-02

Foam Shell: 20020218-01

Legal

BMFL™ is a trademark of Robe lighting s.r.o.

BMFL™ Blade is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patent

Gobos&Colours

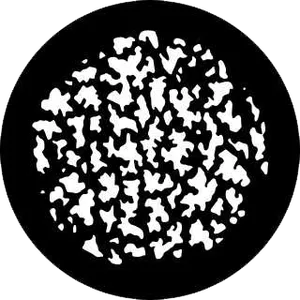

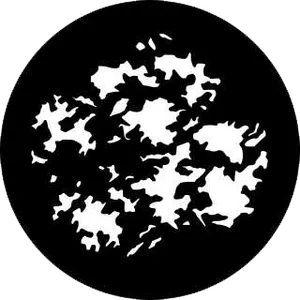

Rotating Gobo Wheel

15020290

15020303

15020302

15020300

15020297

15020301

Static Gobo Wheel

15020296

15020291

15020292

15020293

15020294

15020295

15020298

15020299

Colour Wheel 1

14070411

14070393

14070394

14070395

14070396

14070397

Colour Wheel 2

99014263

99014264

99014265

99014266

99014267

99014268

Animation Wheel

11020208-02
