Dominator 1200 XT™

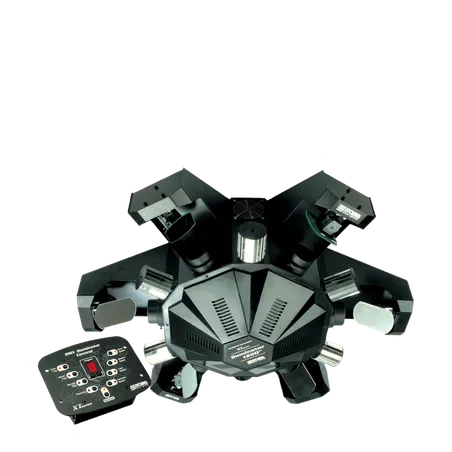

Dominator 1200 XT

The Dominator‘s center-piece is a 6-fold multi-scanner featuring 6 arms with moving mirrors and barrel mirrors to create fantastic lighting effects.

The rotation-speed of the barrel mirrors is fully controllable, and the Dominator 1200 XT also has a stunning 3-facet prism effect, 6 different gobos and 3 different dichroic color filters. The Dominator 1200 XT is exclusively supplied with a DMX controller, complete with a series of pre-programmed sequences.

  • Light source

    HMI 1200/GS discharge lamp

  • Effects

    6x Double condenser system, 6x 3-facet rotating prism

technical

specification

  • Source

    • Lamp: HMI 1200/GS discharge lamp
  • Optical System

    • 6x Double Condenser System
    • 6x 3-facet rotating prism
  • Electromechanical Effects

    • 6 mirrorheads with PAN & TILT
    • 6 mirrorhead cylinders rotating in both directions
    • Effect carousel 1: multicolour gobo, 6 different static gobos/colours
    • Effect carousel 2: 3 different dichroic colour filters (magenta, cyan, yellow), rotating 3-facet prism
    • Shutter: Black-out and dimming
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 12
    • Data in/out: Locking 3-pin XLR
  • Gobos

    • Metal gobos – outside diameter = 33 mm
    • Image diameter = 29 mm, thickness = 0,2 mm
  • Electrical Specification

    • Wiring options: EU version - 230 V, 50/60 Hz, US version - 208 V, 60 Hz
    • Power consumption: 1500 W
  • Approvals

    • CE compliant
  • Mechanical Specification

    • Length: 1005 mm (39.0″)
    • Height: 475 mm (18.7″)
    • Depth: 950 mm (37.4″)
    • Weight: 48 kg (106 lbs)
  • Rigging

    • Mounting bracket
  • Legal

    • Dominator 1200 XT™ is a trademark of Robe lighting s.r.o.
    • Dominator 1200 XT™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
Dominator 1200 XT

downloads

Here you can find all technical and marketing documents related to this product.
