DMX Control 512™

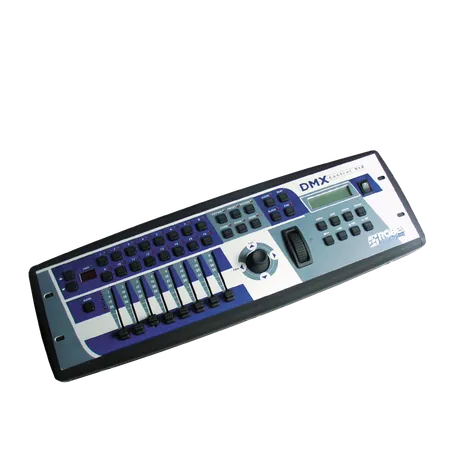

DMX Control 512™

The DMX Control 512 offers control of up to 16 fixtures with a maximum of 32 channels each.

The DMX Control 512 supports ROBE and all other popular lighting brands. A show of up to 1024 Scenes can be created consisting of Presets and Chases. The DMX Control 512 uses Flash memory for easy software updates via a computer (RS 232). The DMX Control 512 is suitable for all range of AT, CT and LT series.

technical

specification

  • Control and Programming

    • Real time control of Moving Heads and Scanners
    • Total 512 DMX Channels
    • Control 16 Projectors up to 32 channels each
    • 1024 Programmable Scenes
    • 512 Programmable Presets
    • 256 Chases + 48 pre-recorded
    • 256 Shows
    • Effects Engine
    • Large Fixture Library
    • Factory ready Color, Gobo, Focus, and Effects Presets
    • MIDI Function
    • 1 Large rotary wheel for Menu and Control
    • 8 Faders x 4 Banks
    • 1 (3pin) DMX Output
    • 1 Polarity switch
    • MIDI-In port, MIDI-Out port
    • RS-232 Port for PC interface
    • RCA Audio Input for Chases
  • Electrical Specification

    • Power supply: 120/230V via external Power Supply 9V DC/500mA
  • Mechanical Specification

    • Height: 120 mm (47.2″)
    • Width: 133 mm (52.4″)
    • Length: 483 mm (19.0″)
    • Weight: 3.2 kg (7.1 lbs)
  • Rigging

    • Rack size: 19″ 3U rack mountable, 3 spaces
DMX Control 512™

downloads

Here you can find all technical and marketing documents related to this product.
