DMX Control 24 CT™

DMX Control 24 CT™

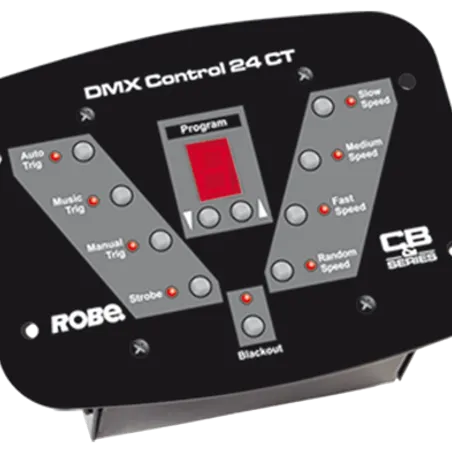

The DMX Control 24 CT is a compact DMX controller with 24 DMX control channels. The built-in microphone and audio input connector allows the program to be perfectly triggered to the beat of the music.

technical

specification

  • Electrical Specification

    • Wiring options: 100-125, 200-230 V AC, 50/60 Hz
  • Mechanical Specification

    • Height: 75 mm (3.0″)
    • Width: 120 mm (4.7″)
    • Length: 155 mm (6.1″)
    • Weight: 0.5 kg (1.1 lbs)
  • Control and Programming

    • Number of control channels: 24
    • Up to 4 projectors each of max. 6 channels can be individually controlled
    • Slow, medium, fast and random speeds of Pan and Tilt movements
    • Manual strobe and black-out control
    • Audio, Manual and Auto trigger
    • 3 pin XLR output
    • Sound input: ¼″ mono jack
    • Built in programs for ClubScan 150/250 CT, ClubRoller 150/250 CT, ClubSpot 150 CT, ClubSpot 160 CT
  • Rigging

    • Can be operated standing on a table, for rack mounting 3U rack adapter available
