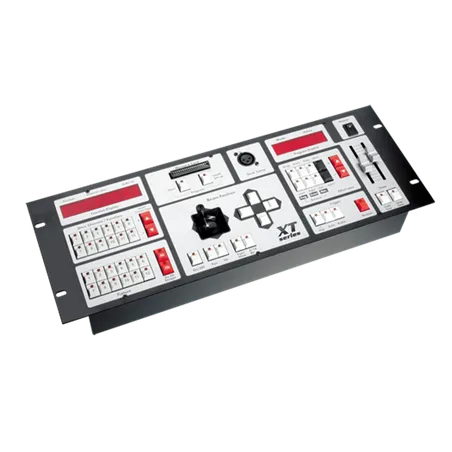

DMX Control 192

This powerful little controller enables you to control most of Robe lighting products. The DMX Control 192 offers 192 DMX control channels; up to 12 projectors can be controlled; manual control of all projectors by joystick; fade-in time and step time adjustable via 2 faders.

technical

specification

  • Electrical Specification

    • Wiring options: 115, 200-230 V AC, 50/60 Hz
  • Mechanical Specification

    • Height: 70 mm (2.7")
    • Width: 176 mm (6.9")
    • Length: 483 mm (19.01")
    • Weight: 3.5 kg (7.7 lbs)
  • Control and Programming

    • Number of control channels: 192
    • Up to 12 projectors each of max. 16 channels can be individually controlled
    • 40 freely-programmable programs with up to 99 steps each
    • 500 recordable scenes
    • Manual control of all projectors by joystick
    • Fade time and step time adjustable via 2 faders
    • Audio, Manual and Auto trigger
    • Memory card 1 Mb
    • 2 parallel 3 pin XLR outputs for simple connection
    • sound input: ¼" mono jack
  • Rigging

    • 19" 4U rack mountable

downloads

Here you can find all technical and marketing documents related to this product.
