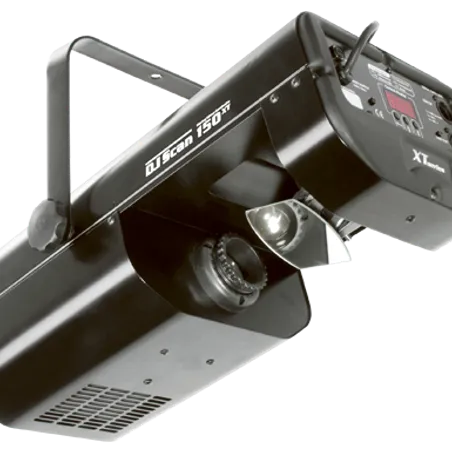

DJ Scan 150 XT

The DJ Scan 150 XT is ideal for all clubs, discotheque or pub applications where an element of colour and sparkle is required. Features include gobo wheel with 13 static gobos + open, colour wheel with 11 dichroic filters + open and shutter.

technical

specification

  • Source

    • Lamp: BLV HIT 150nw,150W,G12
    • Base: G-12
    • Ballast: Magnetic
  • Optical System

    • 19° objective, Manual focus
  • Electrical Specification

    • Wiring options - EU-model: 208/230/240V AC, 50/60Hz
    • Wiring options - US model: 100/120/208/230/240V AC,50/60Hz
    • Power consumption: 250 VA at 230V/50Hz
  • Mechanical Specification

    • Height: 257 mm (10.1") - bracket in horizontal position
    • Width: 308 mm (12.1")
    • Depth: 483 mm (19.0")
    • Weight - EU model: 9.5 kg (20.9 lbs)
    • Weight - US model: 11.5kg (25.4 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 45°C (113°F)
    • Maximum surface temperature: 80°C (176°F)
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 4
    • Bilt-in demo sequences
    • Display: 3-digit LED display
    • Pan/Tilt resolution: 8-bit
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel: 11 dichroic filters + open
    • Static gobo wheel: 13 static gobos + open
    • Shutter, variable strobe effects
    • Max. pan movement range: 147.4°
    • Max. tilt movement range: 115.2°
  • Rigging

    • via mounting bracket
