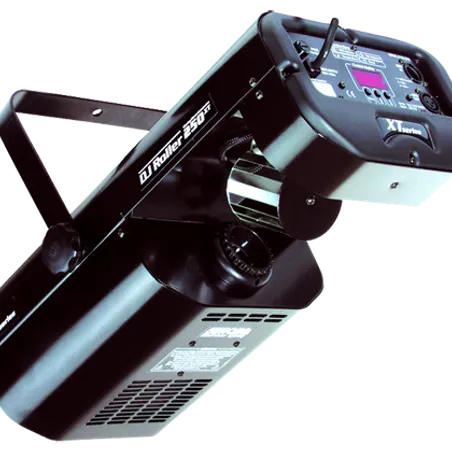

DJ Roller 250 XT

The new DJ Roller 250 XT utilises the same housing and functions as the DJ Scan 250 XT with the addition of a mirror barrel! Completing the range of ROBE's DJ Scanners, this fixture comes with a color wheel (15 dichroic colors, UV effect filter, 3 multi-color filters and open white), a gobo wheel (9 rotating interchangeable gobos + open position) and a mechanical shutter and dimmer.

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GY-9.5
    • Approved model: Philips MSD 250W/2
    • Ballast: Magnetic
  • Optical System

    • Manual zoom (11°-20°) and focus
  • Electrical Specification

    • Wiring options - EU-model: 208/230/240V AC, 50/60Hz
    • Wiring options - US model: 100/120/208/230/240V AC,50/60Hz
    • Power consumption: 500 VA at 230V/50Hz
  • Mechanical Specification

    • Height: 257 mm (10.1") - bracket in horizontal position
    • Width: 308 mm (12.1")
    • Depth: 483 mm (19.0")
    • Weight - EU model: 9.5 kg (20.9 lbs), US model: 11.5kg (25.4 lbs)
  • Thermal

    • Maximum ambient temperature: 45°C (113°F)
    • Maximum surface temperature: 95°C (203°F)
  • Gobos

    • Outside diameter - metal gobos: 15.9 mm
    • Thickness: 0.5 mm, aluminium
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 6
    • Built-in demo sequences
    • Display: 3-digit LED display
    • Pan/Tilt resolution: 8-bit
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel: 11 dichroic filters + open
    • Rotating gobo wheel: 9 rotating, replaceable gobos + open
    • Shutter: Full range dimming and variable strobe effect
  • Rigging

    • Via mounting bracket
