CycBar 15™

CycBar 15™

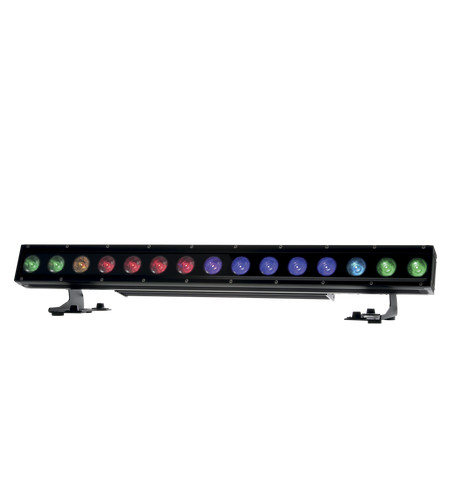

CycBar 15 is a lightweight static 1.000 mm linear strip which uses 15 equally spaced, super bright RGBW multichip LEDs for enhanced 18-bit smooth colour mixing and linear dimming without RGB ’breakup’ or grey shadows.

A fixed but redefinable beam angle offers optional diffusers, now with a new system of split filters allowing three different beam angles per entire CycBar and generating asymmetrical light output for use as a high-quality cyc light. Optional barn door can trim the beam if required.

The advanced pixel control based driver software provides special features including a virtual colour wheel with pre-programmed colours and a set of true whites with CTO

Tungsten lamp emulation and more. The practical and highly readable small display provides a menu with personality settings plus DMX and RDM protocols.

  • Light source

    15x 10W RGBW LED multichips

  • Light output

    4.870 lx @ 5 m / 3.580 lm

  • Zoom range

    7.5° + optional diffusers

  • Effects

    pixel control, colour rainbow effect, pre-programmed colours and whites

technical

specification

  • Source

    • Light Source: 15x 10W RGBW LED multichips
    • Led Life Expectancy: minimum 60.000 hours
    • Typical Lumen Maintenance: 70% @ 60.000 hours
    • LED colour variants: RGBW
  • Optical System

    • Beam angle: 7.5° (without diffuser), diffuser 35°x70° included as standard, optional cyc light kit
    • Fixture total lumen output: 3.580 lm
    • Light output: 4.870 lx @ 5m
  • Dynamic Effects

    • Variable CTO: 0-100%
    • Virtual Colour Wheel: With 237 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K and 8.000 K)
    • Tungsten lamp effect at whites: 2.700 K and 3.200 K (red shift and thermal delay during dimming)
    • Colour rainbow effect with variable speed
    • Pre-programmed pixel effects with colour, dimming and strobe chases, waves and pulses at variable speed and direction
    • Strobe effect: variable speed (max. 20 flashes per second)
    • Pre-programmed random strobe & pulse effects
    • High resolution electronic dimming: 0-100%
  • Control and programming

    • Setting & Addressing: 4-segment LED display & 4 control buttons, stand-alone operation with 1 editable program up to 35 steps)
    • Protocols: USITT DMX-512, RDM
    • Optional wireless version: CRMX™ technology from Lumen Radio (on request)
    • DMX Protocol modes: 4 including SunStrip emulation mode (Halogen Strip)
    • Control Channels: 16, 11, 61, 76
    • Colour mixing: RGBW or CMY
    • Manual control of all effects via control panel
  • Thermal

    • Maximum ambient temperature: 40 °C (104 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Electrical Specification and Connections

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100-240 V, 50/60 Hz
    • Power consumption: 170 W at 230 V / 50 Hz
    • DMX and RDM data in/out: DMX outdoor cables CA-0611 (300mm) + NC5MX-HD/NC5FX-HD (5-pin connectors)
    • Power in/out connector: Neutrik powerCON TRUE1 in/out
  • Approvals

    • CE Compliant
    • cETLus Compliant
  • Mechanical Specification

    • Height: 182 mm (7.2”)
    • Width: 997 mm (39.3”)
    • Depth: 180 mm (7.1”)
    • Weight: 11.1 kg (24.5 lbs)
    • LED module “tilt” adjustment range: -100/+45°
    • IP65
  • Rigging

    • 2x Omega adaptors with 1/4-turn quick locks
  • Included Items

    • User Manual
    • Omega Adaptor CL-regular 2 pcs
  • Accessories

    • Diffusion filter:

      • 35° x 70° 10980247
      • 10° x 30° 10980248
      • 70° x 35° 10980249
      • 30° x 10° 10980250
      • 50° 10980251
      • 32° 10980252

    • Gel frame: 10980269
    • Barndoor: 10980421
    • Doughty Trigger Clamp: 17030386
    • Safety wire 35 kg: 99011963
    • Mains Cable powerCON TRUE1 In/Schuko, 2m, Indoor: 13052405
    • Mains Cable powerCON TRUE1 In/US, 2m, Indoor: 13052406
    • Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Indoor: 13052439
    • Mains Cable powerCON TRUE1 In/CEE 16A, 2m, Indoor: 13052445
    • Mains Cable powerCON TRUE1 In/Open ended, 2m, Indoor: 13052407
    • Mains Cable powerCON TRUE1 In/open ended, 2m EU, outdoor: 13052276
    • Mains Cable powerCON TRUE1 In/open ended, 2m US, outdoor: 13052277
    • Daisy Chain powerCON TRUE1 In/Out, US, 2m, Outdoor: 13052280
    • Daisy Chain powerCON TRUE1 In/Out, EU, 2m, Outdoor: 13052281
    • Daisy Chain powerCON TRUE1 In/Out, US, 2m, Indoor: 13052440
    • Daisy Chain powerCON TRUE1 In/Out, EU, 5m, Indoor: 13052444
    • Daisy Chain powerCON TRUE1 In/Out, EU, 0,75m, Outdoor: 13052278
    • Daisy Chain powerCON TRUE1 In/Out, US, 0,75m, Outdoor: 13052279
    • Single Top Loader Case: 10120184
    • Quad Top Loader Case: 10120185
  • Legal

    CycBar 15™ is a trademark of Robe lighting s. r. o.

    CycBar 15™ is patented by Robe lighting s. r. o. and is protected by one or more pending or issued patents
