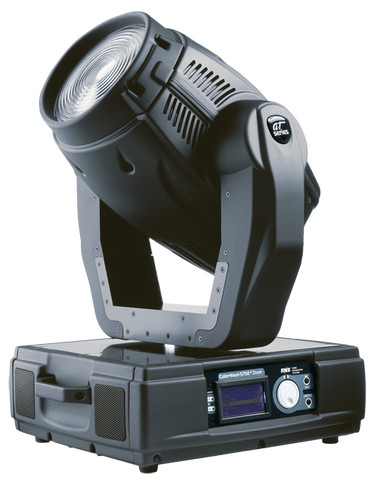

ColorWash 575E AT Zoom™

ColorWash 575 AT Zoom™

The ColorWash 575E AT Zoom is an electronic ballast version of ColorWash 575 AT Zoom, which provides flicker-free operation. The fixture offers an extremely smooth linear motorized zoom that ranges from 8° to 50°. Thanks to the zoom this fixture is ideal for all types of professional installations.

technical

specification

  • Source

    • Lamp: Compact high-ressure metal halide lamp
    • Base: GX9.5
    • Approved model: Philips MSR 575/2
    • Control: Automatic and remote on/off
    • Ballast: Electronic
  • Optical System

    • High luminous-efficiency glass reflector
    • Fresnel lenses of diameter 200 mm
  • Electrical Specification

    • Wiring options: 100/120/208/230/240V, 50/60Hz
    • Power consumption: 720VA at 230V/50Hz
  • Mechanical Specification

    • Height: 588 mm (23.1″) - head in horizontal position
    • Width: 470 mm (18.5″)
    • Depth: 446 mm (17.6″)
    • Weight: 28 kg (61.8 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 40°C (104°F)
    • Maximum surface temperature: 80°C (176°F)
    • Internal difusion lens of diameter 136 mm
  • Control and Programming

    • Protocol: USITT DMX-512, RDM support
    • Control channels: 16, 18, 19, 21
    • DMX channels: 4 protocol modes
    • Stand-alone operation
    • Flicker-free operation
    • 3-editable programs, each up to 99 steps
    • Built-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 16bit
    • Colour wheel positioning: 8 or 16bit
    • Zoom: 8 or 16bit
    • Dimmer: 8 or 16bit
    • Movement control: Tracking and vector
    • Built-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin & 5-pin XLR
  • Electromechanical Effects

    • Cyan: 0 - 100%
    • Magenta: 0 - 100%
    • Yellow: 0 - 100%
    • CTO: 0 - 100%
    • Colour wheel: 5 replaceable ″SLOT&LOCK″ colours + open
    • Dimmer/Shutter: Full range dimming and variable strobe effect, eletronic strobbing
    • Zoom: 8° - 50°
    • Pan: 530°
    • Tilt: 280°
  • Rigging

    • Mounting points: 4 pairs of ¼-turn locks
    • 2x Omega bracket with ¼-turn quick locks
  • Optional Accessories

    • Module of Front wide-angle lens D200 (87° angle)
    • Top Hats
