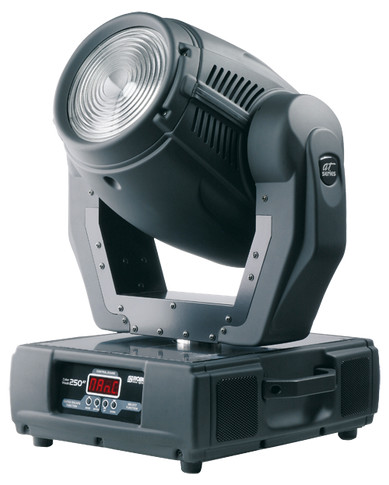

ColorWash 250 AT™

ColorWash 250 AT™

A completely new optical system makes this fixture 50% brighter than its predecessor, the Wash 250 XT. New ultra smooth CMY colour mixing offers a fantastic spectrum of hues. A motorized zoom effect ranges from 8° - 32° and the extremely silent cooling system and movement make this fixture a superb choice for TV and theatre. The colour wheel offers 6 saturated colours + open, using Robe‘s renowned ″SLOT&LOCK″system. Frost filter and a beam shaper are available on the effect wheel. As with all other Robe AT moving heads, 16-bit resolution is available for movement, colour wheel positioning and dimming.

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GY9.5
    • Approved model: Philips MSD 250/2
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • High luminous-efficiency parabolic reflector
    • Front fresnel lens of diameter 158 mm
  • Electrical Specification

    • Wiring options: EU model - 208/230/240 V, 50/60 Hz, US model - 100/120/208/230 V, 50/60 Hz
    • Power consumption: 405 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 502 mm (19.8 ")
    • Width: 419 mm (16.5 ")
    • Depth: 438 mm (17.2 ")
    • Weight: EU model - 20.5 kg (45.2 lbs), US model - 23.5 kg (51.8 lbs)
  • Thermal

    • Maximum ambient temperature: 45 °C (113 °F)
    • Maximum surface temperature: 70 °C (158 °F)
  • Control and Programming

    • Protocol: USITT DMX-512, RDM support
    • Control channels: 16, 18 or 20
    • DMX channels: 4 protocol modes
    • Built-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 16bit
    • Colour wheel positioning: 8 or 16bit
    • Dimmer: 8 or 16 bit
    • Master/Slave operation
    • Stand-alone operation
    • 3-editable programs, each up to 99 steps
    • Movement control: Tracking and vector
    • Built-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR & 5-pin XLR
  • Electromechanical Effects

    • Cyan: 0-100%
    • Magenta: 0-100%
    • Yellow: 0-100%
    • Colour wheel: 6 replaceable ″SLOT&LOCK″ dichroic filters + open
    • Effect wheel: Beam Shaper rotated by 90°, Frost Filter
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Zoom: Motorized zoom 8° - 32°
    • Pan: 530°
    • Tilt: 268°
  • Rigging

    • Mounting points: 4 pairs of ¼-turn locks
    • 2x Omega brackets with ¼-turn quick locks
