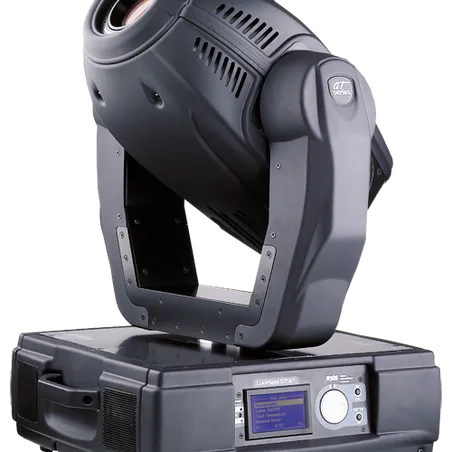

ColorSpot 575E AT™

ColorSpot 575E AT™

The ColorSpot 575E AT is an electronic ballast version of the ColorSpot 575 AT, which sees an expansion of features like flicker-free operation, enhanced light output, extended lamp life, power-saving mode for economy and reduced weight. The ColorSpot 575E AT is equipped with high practical large LCD graphic display. It also includes two separate gobo wheels and 2 separate colour wheels with the ″SLOT & LOCK″ system, motorized multi-step zoom with three different apertures of 15, 18 and 22 degrees; motorized iris, prism, separate and variable frost effects, remote focus and many, many more features.

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GX9.5
    • Approved model: Philips MSR 575/2
    • Control: Automatic and remote on/off
    • Ballast: Electronic
  • Optical System

    • Dichroic glass reflector for maximising the light efficiency
    • 15, 18 and 22 degree beam angles remotely adjustable
  • Electrical Specification

    • Wiring options: 100/120/208/230/240V, 50/60Hz
    • Power consumption: 760VA at 230V/50Hz
  • Mechanical Specification

    • Height: 555 mm (21.9″) - head in horizontal position
    • Width: 470 mm (18.5″)
    • Depth: 446 mm (17.6″)
    • Weight: 26 kg (57.3 lbs)
  • Thermal

    • Maximum ambient temperature: 40°C (104°F)
    • Maximum surface temperature: 80°C (176°F)
  • Gobos

    • Outside diameter - dichroic and glass gobos: 26.8 mm
    • Image diameter - dichroic gobos: 22.0 mm
    • Thickness - dichroic gobos: 1.1 mm (high temperature borofloat or better glass); glass gobos: max. thickness = 4 mm (high temperature borofloat or better glass)
  • Control and Programming

    • Protocol: USITT DMX-512, RDM support
    • Control channels: 19, 21, 27 or 29
    • DMX channels: 4 protocol modes
    • Built-in demo sequences
    • Display: blue/white LCD graphic
    • Pan/Tilt resolution: 16bit
    • Colour wheel positioning: 8 or 16bit
    • Gobo wheel positioning: 8 or 16bit
    • Frost: 8 or 16bit
    • Iris: 8 or 16bit
    • Focus: 8 or 16bit
    • Dimmer: 8 or 16bit
    • Controllable speed of fans
    • Movement control: Tracking and vector
    • Built-in analyzer for easy fault finding
    • 3-editable programs, each up to 99 steps
    • Stand-alone operation
    • Ethernet port: Art-Net protocol, ready for ACN
    • Data in/out: Locking 3-pin XLR & 5-pin XLR
  • Electromechanical Effects

    • Motorized multi-step zoom with three different apertures (15°, 18°, 22°)
    • Colour wheel 1: 9 dichroic filters + open
    • Colour wheel 2: 8 replaceable ″SLOT&LOCK″ dichroic filters + open (including 3200K, correction filter and UV filter)
    • Static gobo wheel: 9 replaceable ″SLOT&LOCK″ metal gobos + open
    • Rotating gobo wheel: 7 rotating, indexable, replaceable‚ ″SLOT&LOCK″ dichroic glass gobos + open
    • Prism: 3-facet prism rotating in both directions at different speeds
    • Frost effect: Separate, variable
    • Dimmer/Shutter: Full range dimming and variable strobo effect
    • Iris: Motorized iris for different beam diameters
    • Focus: Motorized focus
    • Pan: 530°
    • Tilt: 280°
  • Rigging

    • Mounting points: 4 pairs of ¼-turn locks
    • 2x Omega bracket with ¼-turn quick locks
  • Optional Accessories

    • Remote Control IR
