ColorSpot 1200 AT™

ColorSpot 1200 AT™

The ColorSpot 1200 AT is designed as the ultimate creative tool for large theatre, TV and live shows and for installations in multi-purpose venues and large clubs.The fixture uses a powerful Philips 1200 SA discharge lamp lightsource. This is further boosted by a high quality super-efficient optical system, making the ColorSpot 1200 AT one of the brightest moving fixtures currently on the market. Major features include a versatile CMY colour mixing system, variable CTO plus an additional colour wheel, 12 rotating indexable, replaceable dichroic glass gobos on two wheels offering 48 gobo combinations, iris, 4 rotating prisms and effects, variable frost, an incredibly flexible 13 – 42 degree linear zoom, remote focus, dimmer and shutter. Its progressive colour temperature correction system – from 5600K to 3200K is designed for use in television and film applications.

technical

specification

  • Source

    • Lamp: 1200 W short arc discharge
    • Base: GY22
    • Approved model: Philips MSR 1200 SA
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Electrical Specification

    • Wiring options: 208/230/250 V, 50/60 Hz
    • Power consumption: 1600 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 619 mm (24.4 ") - head in horizontal position
    • Width: 536 mm (21.1 ")
    • Depth: 616 mm (24.3 ")
    • Weight: 51.5 kg (113.5 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 40 °C (104 °F)
    • Maximum surface temperature: 135 °C (275 °F)
  • Rotating Gobos

    • Dichroic glass gobos - outside diameter: 37.3 mm, image diameter: 31.5 mm, thickness: 1.1 mm, max. thickness: 5 mm, high temperature borofloat or better glass, coating: dichroic or enhanced aluminium
    • Glass gobo - outside diameter: 37.0 mm, thickness: 1.1 mm, max. thickness: 5 mm, high temperature borofloat or better glass
  • Prisms and Effects

    • Outside diameter: 47+0/-0.3 mm
    • Thickness: Up to 5 mm in rotating slots (up to 8 mm in the center)
  • Control and Programming

    • Protocol: USITT DMX-512, RDM support
    • Control channels: 24 or 32
    • 3 DMX control modes
    • Setting & Addressing: ROBE Navigation System (RNS)
    • Display: Blue/white LCD graphic
    • Pan/Tilt resolution: 16bit
    • Gobo indexing: 8 or 16bit
    • Prism indexing: 8 or 16bit
    • Dimmer: 8 or 16bit
    • Movement control: Tracking and vector
    • Ethernet port: Art-Net protocol, ready for ACN
    • Data in/out: Locking 3-pin & 5-pin XLR
    • Stand-alone operation
    • 3-editable programs, each up to 99 steps
  • Electromechanical Effects

    • Cyan: 0-100%
    • Magenta: 0-100%
    • Yellow: 0-100%
    • CTO: 0-100%
    • Colour wheel: 6 replaceable ″SLOT&LOCK″ colours + open
    • Gobo wheel 1: 6 rotating, indexable, replaceable ″SLOT&LOCK″ dichroic glass gobos + open
    • Gobo wheel 2: 6 rotating, indexable, replaceable ″SLOT&LOCK″ dichroic glass gobos + open
    • Iris: Motorized, stepless
    • Effect wheel: 4 rotating, indexable, replaceable ″SLOT&LOCK″ prisms and effects + open
    • Frost effect: Separate, variable
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Focus: 2 m - infinity
    • Zoom: 13° - 42°
    • Pan: 530°
    • Tilt: 280°
  • Rigging

    • Mounting points: 8 pairs of ¼-turn locks
    • Fastening system: ROBE‘s own 2x Omega clamps
    • Fixation option: Pan/Tilt-lock mechanism
  • Optional Accessories

    • Remote control IR

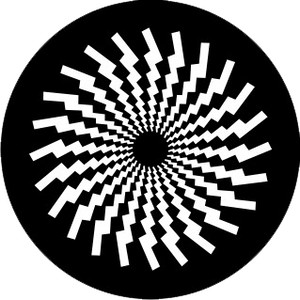

gobos & colours
