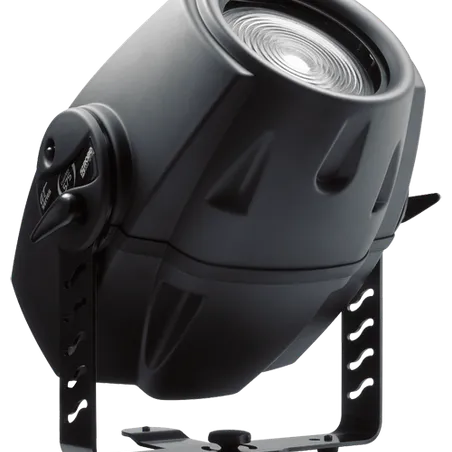

ColorMix 575 AT™

ColorMix 575 AT™

The versatile ColorMix 575 AT fixture is ideal for theatres, clubs, live performance and stage work, TV studios and interior architectural applications – anywhere where powerful, evenly-spread colour mixing is needed. It offers full CMY colour changing facilities, remote zoom of 10–26 degrees, continuously rotating colour wheel with 4 colours, 3200 K, 5600 K, UV plus open. The ColorMix 575 AT also has a beam shaper, adjustable between 0 and 180 degrees and frost filter.

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GY9.5
    • Approved model: Philips MSR 575/2
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Motorized multi-step zoom between 10° and 26° beam angles
    • Fresnel lens of diameter 200 mm
    • 85° beam angle with the optional front wide-angle lens
  • Electrical Specification

    • Wiring options: EU model – 208/230/240 V, 50/60 Hz, US model – 100/120/208/230 V, 50/60 Hz
    • Power consumption: 730 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 450 mm (17.7″) – bracket in horizontal position
    • Width: 480 mm (18.9″)
    • Depth: 485 mm (19.1″)
    • Weight: EU model – 22 kg (48.5 lbs), US model – 26 kg (57.3 lbs)
  • Thermal

    • Maximum ambient temperature: 40 °C (104 °F)
    • Maximum surface temperature: 75 °C (167 °F)
  • Control and Programming

    • Protocol: USITT DMX-512, RDM support
    • Control channels: 11, 14
    • Built-in demo sequences
    • Display: 4-digit LED display
    • Built-in microphone for music trigger
    • Master/Slave operation
    • Stand-alone operation
    • 3 freely-programmable programs, up to 99 steps each
    • Built-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • CMY mixing system: Cyan 0–100%, Magenta 0–100%, Yellow 0–100%
    • Colour wheel: 4 dichroic filters, 3200 K and 5600 K CTF, UV filter + open
    • Effect wheel: Beam shaper, frost filter
    • Dimmer/Shutter: Full range dimming and variable strobe effect
  • Rigging

    • Stands directly on the floor with removable stand
    • Mounts horizontally or vertically with mounting bracket
    • Vertical head adjusting range: 135°
  • Optional Accessories

    • Barn-doors
    • Front wide-angle lens
