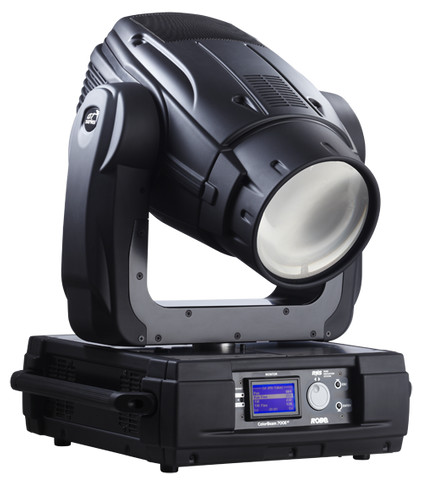

ColorBeam 700E AT™

ColorBeam 700E AT™

The ColorBeam 700E AT is a special beam effect offering a tight, punchy, powerful beam with an angle ranging from 1.5 – 6.5 degrees – for additional flexibility.

The 7 rotating and 9 static gobos - all using Robe‘s amazing "SLOT&LOCK" system - when combined with the prism, offer the possibility of creating stunning, abstract aerial effects. This further enhances the ColorBeam 700 as a tool for those with fertile imaginations!

As is standard with all Robe‘s other 700 Series fixtures - other features include an ultra-smooth colour mixing system plus CTO, and a colour wheel with 7 "SLOT&LOCK" options.

technical

specification

  • Source

    • Lamp: Compact high-presure metal halide lamp
    • Base: PGJX50
    • Approved model: Philips MSR Gold 700™ FastFit
    • Control: Automatic and remote on/off
    • Ballast: Electronic

  • Optical System

    • Dichroic glass reflector for maximising the light efficiency
    • Beam angle:   1.5° – 6.5°

  • Electrical Specification

    • Power supply: Electronic auto-ranging
    • Input voltage range: 100–240 V, 50/60 Hz
    • Power consumption: 990 VA at 230 V/50 Hz

  • Mechanical Specification

    • Height: 598 mm (23.5 ") – head in horizontal position
    • Width: 514 mm (20.2 ")
    • Depth: 485 mm (19.1 ")
    • Weight: 32.3 kg (71.2 lbs)
    • Fixation option: Pan/Tilt-lock mechanism

  • Thermal

    • Maximum ambient temperature: 40 °C (104 °F)
    • Maximum surface temperature: 120 °C (248 °F)

  • Static Gobos

    • Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, aluminium, thickness: 0.5 mm

  • Rotating Gobos

    • Glass gobos - outside diameter: 26.8 mm, image diameter: 22.0 mm, thickness: 1.1 mm, max. thickness = 4 mm, high temperature borofloat or better glass

  • Control and Programming

    • Setting & Addressing: ROBE Navigation System (RNS)
    • Protocol: USITT DMX-512, RDM support
    • Control channels: 32/25/30/23/21
    • 5 DMX protocol modes
    • 3-editable programs, each up to 99 steps
    • Stand-alone operation
    • Display: Blue/white LCD graphic
    • Pan/Tilt resolution: 8 or 16 bit
    • Movement control: Tracking and vector
    • Colour wheel positioning: 8 or 16 bit
    • Static gobo wheel positioning: 8 or 16 bit
    • Rotating gobos: 8 or 16 bit
    • Iris: 8 or 16 bit
    • Frost: 8 or 16 bit
    • Focus: 8 or 16 bit
    • Dimmer: 8 or 16 bit
    • Ethernet port: Art-Net protocol, ready for ACN
    • Data in/out: Locking 3-pin & 5-pin XLR
    • Built-in analyser for easy fault finding

  • Electromechanical Effects

    • Cyan: 0–100%
    • Magenta: 0–100%
    • Yellow: 0–100%
    • CTO: 0–100%
    • Colour wheel: 7 replaceable "SLOT&LOCK" dichroic filters + open
    • Static Gobo wheel: 9 replaceable "SLOT&LOCK" gobos + open
    • Rotating Gobo wheel: 7 rotating, indexable, replaceable "SLOT&LOCK" glass gobos + open
    • Iris: Motorized, stepless
    • Prism: 3-facet indexable prism rotating in both directions at different speeds
    • Frost effect: Separate, variable
    • Dimmer/Shutter: Full range dimming and variable strobe effect, Electronic strobbing "ZAP"
    • Motorized focus
    • Pan: 540°
    • Tilt: 280°

  • Rigging

    • Mounting points: 2 pairs of ¼-turn locks
    • 2 x Omega bracket with ¼-turn quick locks
    • Safety chain/rope attachment point
ColorBeam 700E AT™

gobos & colours

Rotating Gobo Wheel
Colour Wheel
Static Gobo Wheel
