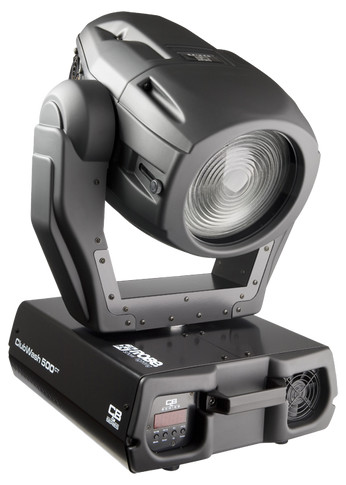

ClubWash 500 CT™

ClubWash 500 CT™

The ClubWash 500 CT features manual zoom 7° – 28°, CMY colour mixing system, full range dimming and variable strobo effect.The ClubWash 500 CT is aimed at middle sized clubs and discotheques and various other types of installations.

technical

specification

  • Source

    • Lamp: Compact high-ressure metal halide lamp
    • Base: GX-9.5
    • Approved model: Philips MSR 575/2
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Manual Linear zoom between 7° and 28° beam angles
    • Fresnel lens of diameter 200 mm
  • Electrical Specification

    • Wiring options: EU model - 208/230/240 V, 50/60 Hz; US model - 100/120/208/230 V, 50/60 Hz
    • Power consumption: 680 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 565 mm (22.2 ") - head in horizontal position
    • Width: 467 mm (18.4 ")
    • Depth: 491 mm (19.3 ")
    • Weight: EU model - 31 kg (68.3 lbs), US model - 35 kg (77.2 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 40 °C (104 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 11 or 13
    • Bilt-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 8 or 16bit
    • Master/Slave operation
    • Stand-alone operation
    • Controllable speed of fans
    • Movement control: Tracking and vector
    • Buit-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • CMY colours mixing system
    • Dimmer/Shutter: Full range dimming and variable strobo effect
    • Manual Zoom
    • Pan: 530°
    • Tilt: 280°
  • Rigging

    • Mounting points: 4 pairs of ¼-turn locks
    • Via 2 Omega holders
ClubWash 500 CT™

downloads

Here you can find all technical and marketing documents related to this product.
