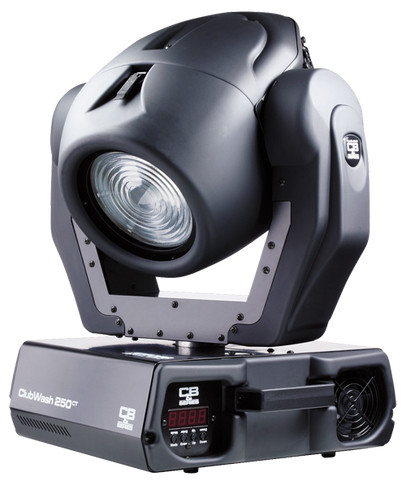

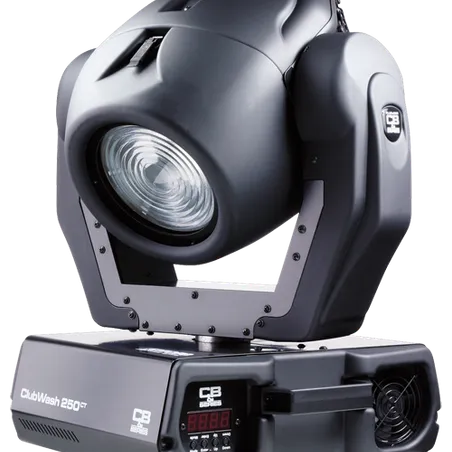

ClubWash 250 CT™

ClubWash 250 CT™

The ClubWash 250 CT is very easy to control and quick to programme. Highly competitively priced and with an outstanding features-for-value ratio, the fixture is perfect for small to medium installation applications and mobile Djs. Features include a manual zoom, colour wheel with 11 colours + white, rainbow effect, smooth dimmer & separate shutter + strobe effect (max. 10 flashes/sec).

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GY9.5
    • Approved models: Osram HSD 250/80, Philips MSD 250/2, Sylvania BA 250/2 SE
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Fresnel lens of diameter 150 mm
    • Manually adjustable beam angle from 8° to 22°
  • Electrical Specification

    • Wiring options: EU model - 208/230/240 V, 50/60 Hz, US model - 100/120/208/230/240 V, 50/60 Hz
    • Power consumption: 410 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 520 mm (20.5 ") - head in horizontal position
    • Width: 417 mm (16.4 ")
    • Depth: 398 mm (15.7 ")
    • Weight: EU model - 20.5 kg (42.2 lbs), US model - 24 kg (52.9 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 45 °C (113 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 8 or 10
    • Built-in demo sequences
    • Display: 4-digit LED display
    • Master/Slave operation
    • Stand-alone operation
    • 3-editable programs, each up to 99 steps
    • Controllable speed of fans
    • Movement control: Tracking and vector
    • Built-in analyser for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel: 11 colours + white, rainbow effect in both directions
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Pan: 530°
    • Tilt: 280°
  • Rigging

    • 2 pairs of ¼-turn locks; 2x Omega bracket with ¼-turn locks
    • 1 pair of mounting holes for clamps with M10 threat
  • Optional Accessories

    • Mounting plate
ClubWash 250 CT™

gobos & colours

downloads

Here you can find all technical and marketing documents related to this product.
