ClubSpot 500 CT™

ClubSpot 500 CT™

The ClubSpot 500 CT offers colour wheel with 9 dichroic filters; rotating gobo wheel with 6 rotating, indexable and replaceable gobos; 3-facet prism and 2 manual adjustable beam apertures 15° and 22°. This fixture is ideal for middle installation applications.

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GX9.5
    • Approved models: Philips MSR 575/2, Osram HSR 575/72
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Manual zoom 15° or 22°
  • Electrical Specification

    • Wiring options: EU-model - 208/230/240 V, 50/60 Hz, US model - 100/120/208/230 V, 50/60 Hz
    • Power consumption: 740 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 564 mm (22.2 ") - head in horizontal position
    • Width: 467 mm (18.4 ")
    • Depth: 491 mm (19.3 ")
    • Weight: EU model - 32 kg (70.5 lbs), US model - 36 kg (79.4 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 40 °C (104 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Rotating Gobos

    • Glass gobos - outside diameter: 26.8 mm, image diameter: 22 mm, thickness: 1.1 mm, max. thickness = 4 mm, high temperature borofloat or better glass
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 11 or 13
    • Bilt-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 8 or 16bit
    • Master/Slave operation
    • Stand-alone operation
    • Controllable speed of fans
    • Movement control: Tracking and vector
    • Buit-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel 1: 9 dichroic filters + open
    • Rotating gobo wheel: 6 rotating, indexable, replaceable gobos (1 effect - glass gobo, 3 black and white gobos, 1 multicolor and 1 dichroic gobo) + open
    • Prism: 3-facet prism rotating in both directions at different speeds
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Focus: Motorized focus
    • Pan: 530°
    • Tilt: 280°
  • Rigging

    • Mounting points: 4 pairs of ¼-turn locks
    • 2x Omega brackets with ¼-turn quick locks

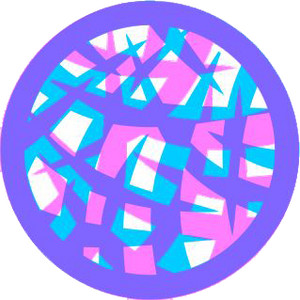

ClubSpot 500 CT™
