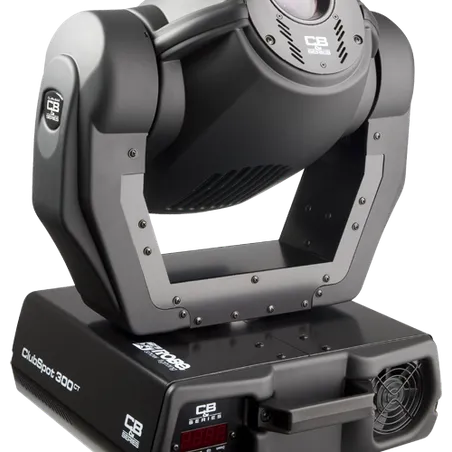

ClubSpot 300 CT™

ClubSpot 300 CT™

The ClubSpot 300 CT enhances Robe‘s dynamic Club Series. It‘s complete with 250W discharge lamp, remotely controlable motorized focus, standard 15° beam apertures and optional 12° and 18° lens, colour wheel with 11 dichroic colours and 6 interchangable/indexable rotating gobos plus open.

technical

specification

  • Source

    • Lamp: Compact high-pressure metal halide lamp
    • Base: GY9.5
    • Approved models: Osram HSD 250/80, Philips MSD 250/2, Sylvania BA 250/2 SE
    • Control: Automatic and remote on/off
    • Ballast: Magnetic
  • Optical System

    • Standard objective: 15°
    • Optional objectives: 12° and 18°
  • Electrical Specification

    • Wiring options: EU model - 208/230/240 V, 50/60 Hz; US model - 100/120/208/230/240 V, 50/60 Hz
    • Power consumption: 500 VA at 230 V/50 Hz
  • Mechanical Specification

    • Height: 478 mm (18.8 ") - head in horizontal position
    • Width: 417 mm (16.4 ")
    • Depth: 398 mm (15.7 ")
    • Weight: EU model - 20.5 kg (42.2 lbs), US model - 24 kg (52.9 lbs)
  • Thermal

    • Maximum ambient temperature (Ta): 45 °C (113 °F)
    • Maximum surface temperature: 80 °C (176 °F)
  • Rotating Gobos

    • Glass gobos - outside diameter: 26.8 mm, image diameter: 22 mm, thickness: 1.1 mm, max. thickness: 4 mm, high temperature borofloat or better glass
  • Control and Programming

    • Protocol: USITT DMX-512
    • Control channels: 14 or 16
    • DMX channels: 3 protocol modes
    • Built-in demo sequences
    • Display: 4-digit LED display
    • Pan/Tilt resolution: 8 or 16bit
    • Master/Slave operation
    • Stand-alone operation
    • 3-editable programs, each up to 99 steps
    • Controllable speed of fans
    • Movement control: Tracking and vector
    • Built-in analyzer for easy fault finding
    • Data in/out: Locking 3-pin XLR
  • Electromechanical Effects

    • Colour wheel: 11 colours + white, rainbow effects in both directions
    • Gobo wheel: 6 rotating glass gobos (1 effect - glass gobo, 3 black and white gobos, 1 multicolor and 1 dichroic gobo) + open, all gobos indexable and replaceable
    • Dimmer/Shutter: Full range dimming and variable strobe effect
    • Focus: Motorized focus
    • Prism: 3-facet prism rotating in both directions at different speeds
    • Pan: 530°
    • Tilt: 280°
  • Rigging

    • 2 pairs of ¼-turn locks; 2x Omega bracket with ¼-turn quick locks
    • 1 pair of mounting holes for clamps with M10 threat
  • Optional Accessories

    • Objective 12°
    • Lens-module 18°
    • Mounting plate
ClubSpot 300 CT™

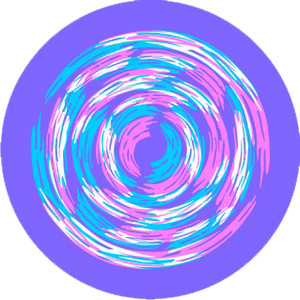

gobos & colours
